Horizontal Oil-fired Steam Boiler

FOB Price

US$ 1,500 - 50,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

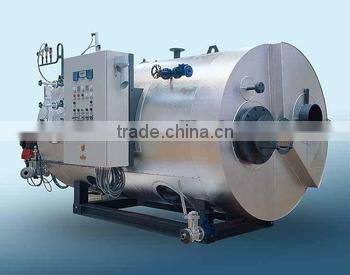

Horizontal oil-fired steam boiler

horizontal gas fired steam boiler features:

Adopt numerical control system including automatic mode,manual mode, timing mode, error recording,password protection function,etc.
Be provided with automatic blowdown system ,effectively reduce scale formation and extend the working life of the boiler.
Auto-Scale alarm(Independent patent technology) & overpressure protection devices ensure safe operation of the boiler.
Maintenance easy—The front smoke box adopt articulated joint which is easy to be open and makes the flue tubes cleaning get more simpler and easier
Safe and reliable---before leave the factory, all the boiler have to pass series of strict tests ,especially on combustion and auto control devices to ensure the safety and reliablity .

Parameter:

Type	Mode	Rated evaporation (t/h)	Rated pressure (Mpa)	Rated evaporation temperature (°C)	Diesel consumption (Kg/H)	Natural gas consumption (Nm3/h)	Weight (T)
horizontal central reverse flame	WNS0.5-0.8-YQ	0.5	0.8	175	34.4	41.1	3.735
	WNS0.7-0.8-YQ	0.7			48.2	57.5	5.502
	WNS1.0-1.0-YQ	1.0			68.8	82.1	5.68
	WNS2.0-1.0-YQ	2.0	1.0	184	137	164.3	8.255
	WNS1.5-1.0-YQ	1.5			103	123.15	9.885
	WNS2-1.0-YQ	2.0			137	164.3	11.14
Horizontal three Pass	WNS1.5-1.25-YQ	1.5			103	123.15	9.689
	WNS2.0-1.25-YQ	2.0			137	164.3	11.6
	WNS2.5-1.25-YQ	2.5	1.25	194	172	205.5	15.0
	WNS3.0-1.25-YQ	3.0	1.25	194	206	246.3
