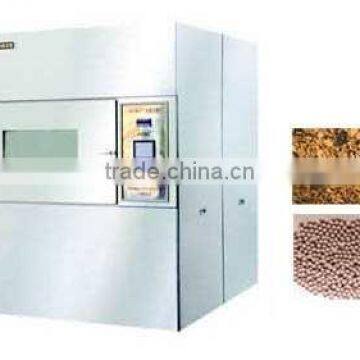

30KW Boxing Microwave Drying Equipment

Condition	New		Type	Freeze Drying Equipment
Place of Origin	Shanghai, China		Brand Name	Huayuan
Model Number	WGX30-B		Voltage	380V
Power(W)	30KW		Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

Specifications

1.It characterizes intelligent control, power linearity adjustable and controllable temperature.
2. PLC controlling system

Scope of Application:
This equipment is mainly used in manufacturing shops of pharmaceutical and foodstuff industries etc. It is applied to the drying, heating, sterilization and ripening of medicines, biological products, agricultural products and by products. Specially, it is excellent in the drying effect of various pills and granulated materials.
Functional Characteristics:
(1) It characterizes intelligent control, power linearity adjustable and controllable temperature. It is a upgrade from general industry microwave oven.
(2) Our company is the first to introduce PLC controlling into microwave produces among competitors in the same trades. Via many times of technical upgrade, its controlling method and functions have taken the lead among like products of domestic industry.
(3) High-tension transformer adopts secondary cooling system, ensuring that the machine can continuously work for 24 hours.

Structural Features:
This series cabinet microwave equipment is composed of control unit, microwave heating cabinet, three-dimensional rotating basket, rotation system, and electrical system. Its exterior is neat and beautiful.

Main Technical Parameters:



ItemUnit	HWL2-B	HWL5-B	HWL10-B	HWL15-B		HWL20AB		HWL30-80AB
MicrowavePower	2	5	10	15		20		30-80
Microwave Frequency	2450	2450	2450	2450		2450		2450
Supply Voltage	380±10%	380±10%	380±10%	380±10%		380±10%		380±10%
Area of spreading materials	0.27	0.75	2.25	2.25		2.25		4-12
Sterilization Capability	10-20
Dehydration Treatment	0.8-1.2
External Dimension(L×W×H)(Adiustable)	950×650×1700	1300×1150×1700	1700×1800×2040		1700×2200×2040		1700×2200×2040
