Hot sale blister vaccum forming machine
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Product Type | Plastic Cup | |
| Place of Origin | Shandong, China | Brand Name | TONGYI | |
| Model Number | SPC-660B/SPC-660C/SPC-660D | Voltage | 380V | |
| Power(W) | 70kw | Dimension(L*W*H) | 3.6x1.35x2.3m | |
| Weight | 3600kg | Certification | CE | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

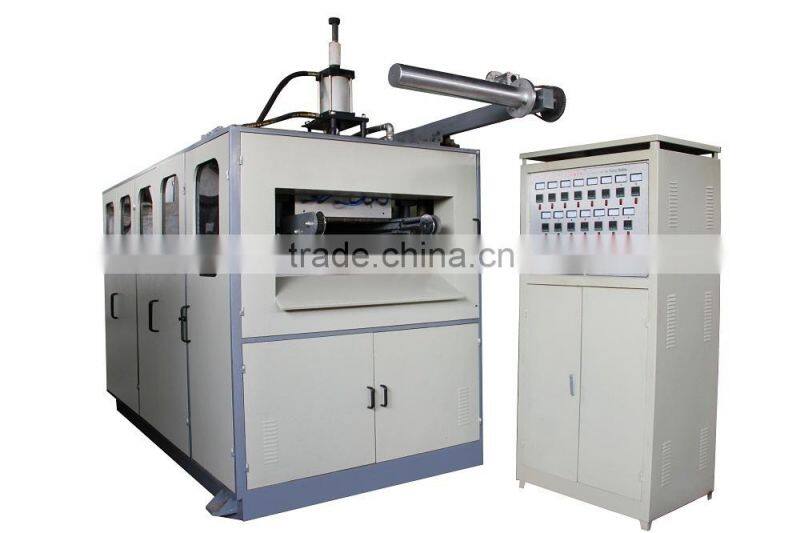

Hot sale blister vaccum forming machine
Main Technical Parameters
| Model | SPC-660B | SPC-660C | SPC-660D |
| Guide Pillar | Two Pillars | Four Pillars | Four Pillars |
| Max.Guide Plate Area | 300X1050 mm | 360X1200X mm | 360X1200 mm |
| Max.Forming Area | 640X230 mm | 660X300 mm | 660X300 mm |
| Running Speed | 15-32cycles/min(according to sheet thickness,material used and product shape) | ||
| Sheet width for feeding | 500-660 mm in rolls | ||
| Mode of Mould Cutting | In mould automatic | ||
| Sheet Thickness Range | 0.20-2.0 mm | ||
| Suitable Material | PP,GPPS,HIPS,PET,PVC | ||
| Max.Forming Depth | 140 mm(could be special designed) | ||
| Master Motor Power | 7.5KW | 11KW | 11KW |
| Max.Sheet Reel Dia. | 800 mm | ||
| Herting Method | Top + botto,Heating with IR Ceramic Heater | ||
| Temperature Control Method | Temperature Controller and Temperature Conteol Module | ||
| Trpe of Mould | 1-4Rows(We make mould according to customer's samples) | ||
| Water Consumption | (15-20℃)0.5-1.0m³/h(recycled) | ||
| Air Consumption | 2.5-3.0m³/min,0.6-0.8Mpa | ||
| Sheet Feeding Method | 2.2KW Gear Motor | 2.2KW Gear Motor | 3KW Servomotor |
| Plug Streching Method | Dia.125mm Air cylinder | Dia.125mm Air cylinder | 4.4KW Servomotor |
| Approx.Dimension | 3.6X1.35X2.3m | 3.75X1.55X2.3m | 3.75X1.55X2.5m |
| Approx.Weight | 3600Kg | 3800Kg | 4000Kg |
Main Function Features
1.Adopt mechanical cam system to operate, convenient to operate and maintain.
2.Completely automatic and fast production speed.
3.By installing different molds to produce different products.
4.Adopt imported famous brands of electric and pneumatic fittings, reliable quality and long life.
5.The whole machine is compact, one mould has all functions, such as pressing giving, forming, cutting, cooling and finished product blowing. Short process, high quality of finished products and meet the national sanitary standard.
6.The machine is fit for producing PP, PE, PET, HIPS, GPPS and other plastic products, such as cup, box, bowl and so on. For example, milk cup, jelly cup, ice cream cup, one-off cup, instant noodle bowl, fast food box and so on.
Hot sale blister vaccum forming machine

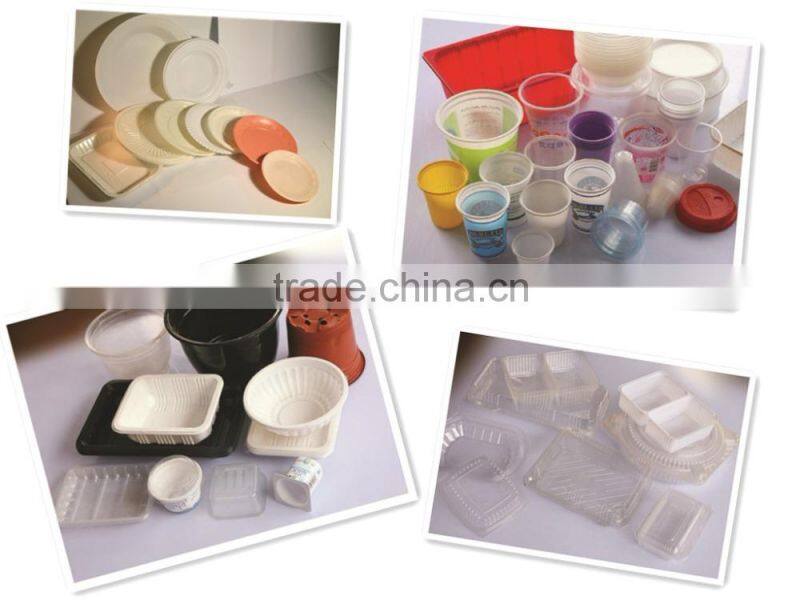

Molding Samples

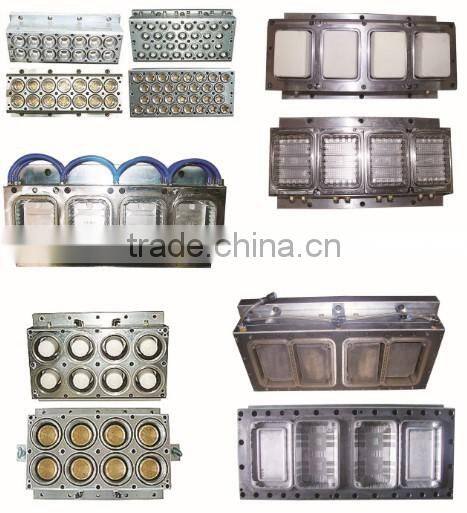

Moulds
Company Information
Packaging & Shipping
We can solve the problem for you is :
1.Our Professional engineer can help you go to your country.
And adjustment the machine.
2.Our salesman will be 24 hours online for you to solve equipment
problems.
3.Our machine is hight quality.
Hot sale blister vaccum forming machine
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: What certificate do you have?
A: We have ISO and CE certificate.
3. Q: How does your factory do regarding quality control?
A: We have a special QC department in charge of products’ quality.
4. Q: How long is the warranty period?
A: All of our products have one year warranty.
5. Q: What’s the main market of your company?
A: We have customers all over the world.
6. Q: How much production capacity of your company one year?
A: This depends on your needs.
7. Q: Can we visit your machine operation in your factory?
A: We have own plastic making company, you can see the machine operation.
8. Q: Where is your factory located?
A: Our factory is located in Longkou City, Shandong Province, China.
