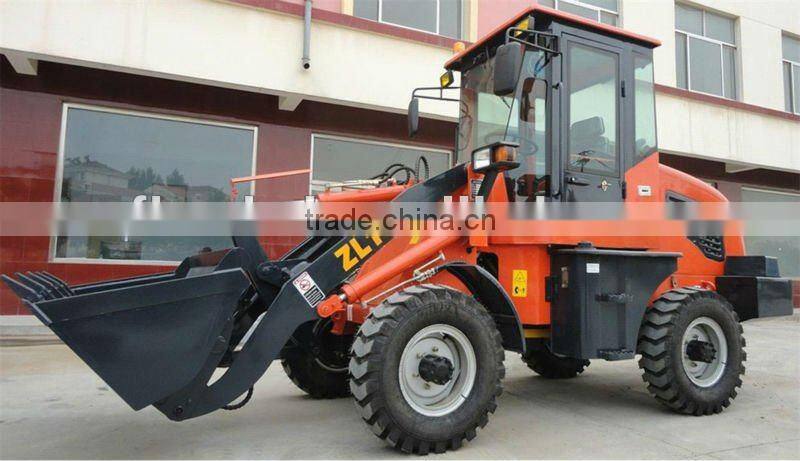

ZL10B Mini Wheel Loader
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Brand Name | HY | |
| Model Number | ZL-10B | Place of Origin | Shandong, China | |
| Type | Mini Loader | Moving Type | Wheel Loader | |
| Rated Load | 1000KG |
Product Description
Specifications
mini wheel loadermini wheel loader
1.0 Engine Details
(1) Model : Changchai ZN485Q
(2) Engine type: In-line arrangement, water cooled, four-cycle diesel Engine
(3) Rated Power : 26KW ( 36 H.P. )
(4) Rated Speed : 2200 r/min(rpm)
(5) Fuel Consumption ratio in standard working condition : 269g/kw.h
2.0 Steering System
(1) Cycloid full hydraulic steering system : BZZ-125
(2) System Pressure : 10MPa
(3) Steering Cylinder :Φ76x Φ63x180 (4) Speed
3.0 BUCKET
(1) Bucket Capacity : 0.5 m3
(2) Bucket width : 1400mm
(3) Bucket type : Heavy duty bolt on teeth
(4) Max. Breakout Force : 32KN
(5) Rated Load :1000kg
(6) Operating Weight : 2880kg
4.0 OVERALL DIMENSION
(1) Overall Length ( Bucket on ground position ) :4900mm
(2) Overall Height
(a) Ground to Cab Top : 2520mm
(b) Ground to exhaust pipe : It is below from the top of cabin
(c) Dumping Height : 2545mm
(3) Overall Width :1685mm
5.0 OPERATING SPECIFICATIONS
(1) Drive Means : Four-wheel drive
(2) Min Turning Radius : 4200mm
(3) Driving System : mechanical
(4) Dumping Height : 2545mm
(5) Min Base to the ground : 240mm
(6) Time of raise : 3.05sec.
(7) Hydraulic cycle time : 9sec.
6.0 Brake System
(1) Service Brake : |
| Four Wheel Hydraulic spread-shoed brake |
(2) Parking Brake : |
| Hand operated |
7.0 Wheelbase : |
| 2040mm |
8.0 Track : |
| 1320mm |
9.0 Machine speed (1)Low speed (km/h) 4 |
|
(2) High speed (km/h) 25 |
