Home > Products > RS232/V35/Ethernet over E1 Converter Serials > 10/100Base-T Ethernet to V.35 converter

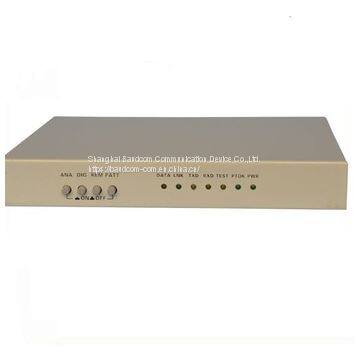

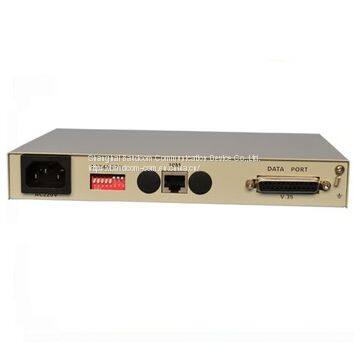

10/100Base-T Ethernet to V.35 converter
- 5000 Piece / Pieces per Month
- any port in China
- T/T L/C D/P D/A Credit Card PayPal Other Escrow
- 7 days
You May Like
Product Details
| Brand Name | Baudcom | Place of Origin | China | |
| Model Number | BD-ETH-V.35 |
Product Description
Features:
◆ completely compatible with IEEE 802.3/EthernetV.2; ◆ WAN circuit interface：V.35，rate auto-adaptable 0~100Mbps; ◆ circuit transmitting agreement：HDLC; ◆ rate of filter and transmitting reaches 15,000frame/s; ◆ 256 frame buffer ; ◆ 10,000 MAC address LAN table ; ◆ auto-study and update function ;
◆ supports DTC and DCE, external clock and internal clock;
Interfaces:
LAN Interface
Rate: 10/100M, full/duplex auto-negotiation
Protocol: Support IEEE 802.3,IEEE 802.1Q (VLAN)
MAC Address Entiries: 4096 Entiries
Total Memory Sizes: 64MBits SDRAM
Physical interface: RJ45, support AUTO-MDIX
V35 port
Interface: compatible with V.35 standard.
Connector: M34 male socket
Connect mode: DCE/DTE
Power supply
working voltage range wide, good
anti-disturb and Isolation, work stable
option I – DC-48V,range DC-36V~DC-72V
option II – AC220V,range AC165V~AC240V
Power Consumption: <=3 Watts
environment condition
Operating temperature: 0C~+50 C
Storage temperature: -20 C~+70 C
Relative temperature:95% (uncondensed)
Application
Ordering information
| BD-ETH-V.35/AC | 10/100Base-T to V.35 converter,Ethernet over V.35,AC 220V | |
| BD-ETH-V.35/DC | 10/100Base-T to V.35 converter,Ethernet over V.35,DC 48V |
