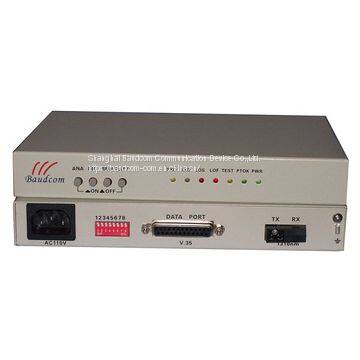

V.35 Fiber Modem
- any port in China
- T/T L/C D/P D/A Credit Card PayPal Other Escrow
- 7 days
You May Like
Product Details
| Brand Name | Baudcom | Place of Origin | China | |
| Model Number | BD-OP-V.35 |
Product Description
Product function:
V.35 fiber modem extends V.35 interface service over fiber. A pair of V.35 Fiber Modems provides n*64K(n=1-32) V.35 network "extension" between remote and locations .The BD-OP-V35 is designed to transmit/receive V.35 data over one string of fiber. The BD-OP-V35 allows transmission over Single-mode fiber with distances up to 120km. LED status indicators monitor the fiber and V.35 links. The Model BD-OP-V35 is available with either an AC or DC power supply and is supported by a wide range of applications and power supply environments.
Features:
Have two row of LED, one indicates local status, the other indicates remote status
The V.35 Rate is N*64K, N=1-32.
Have two clock way: V.35 master clock and V.35 slave clock
Have three Loop-Back Mode: Fiber interface Loop-Back (ANA), V.35 interface Loop-Back(DIG), command the remote modem V.35 interface Loop-back (REM)
Remote adjustment of velocity for the remote device will be available when the local setting into the master clock and the remote set into slave clock
E1 fiber modem matching V.35 fiber by pair, one G.703/V35 interface conversion can be save out.
It has PBRS test function and could be used as a 2M error code device.
V.35 interface support hot-plug and can be connected with other DCE or DTE device.
V.35 connector
transmission velocity : N×64Kbps(N=1~32)
electric characteristics: according ITU-T V.35
connector: DB25
connect way: DCE
Fiber connector
Optical interface: SC/FC
Optical Wavelenth: FP1310 nm /DFB1550nm+/-50/40nm
Sending consumption: -9dBm/-5dBm
Receiving and dispatching module: >-6dBm
Optical receiver receiving sensitivity: <-36 (BER<10 -10):
Dynamic range receiving: >-30dB
Optical code: NRZ
Single mode : 10/125 um
Transmitting range: SM 20Km, SM 40Km, SM 60 Km, SM 120Km
Dimension
210(W)× 140(L)× 30(H)mmPower
Adapting module power, voltage range can be wide, with strong anti-jamming function ..
With good insulation, stable working status is available
power: -48V type, input voltage: -36V~-72V
power: 220V type, input voltage: 175V~250V
power consume:<5WOrdering information
Application
| BD-OP-V.35/AC | V.35 over Fiber optical modem,single mode,dual fiber,20km,power AC 220V |
| BD-OP-V.35/DC | V.35 over Fiber optical modem,single mode,dual fiber,20km,power DC 48V |
