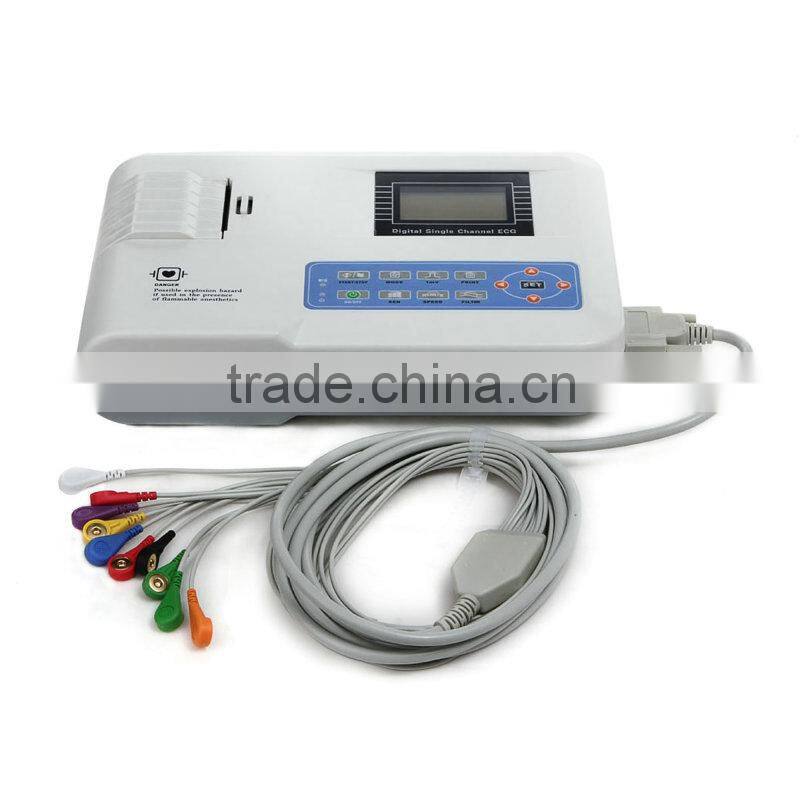

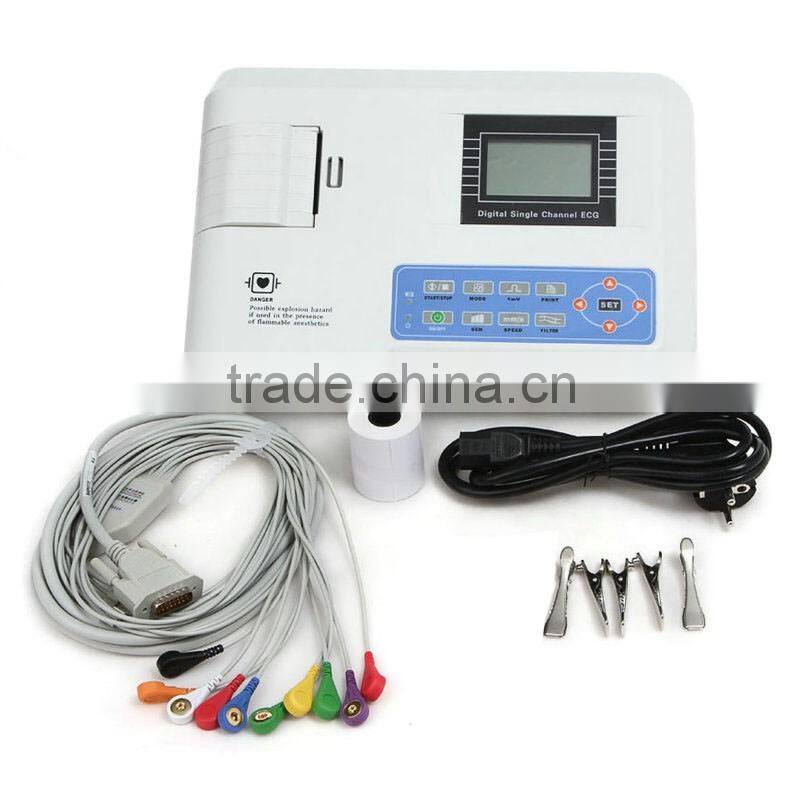

Digital Single Channel 12 Lead Veterinary Electrocardiograph ECG Machine Vet Equipment
- Beijing
- Money Gram Credit Card
You May Like
-
Factory Price ! CE*ISO Approved Palm Veterinary Ultrasound Machine Vet V8 for Animal
-
Veterinary Portable Vet Ultrasound Animal Ultrasound Machine With Low Price
-
CE and ISO Approved High Quality Medical Use Top Veterinary Infusion Pump
-
Hospital Equipment Portable Veterinary Anesthesia Machine High Quality Anesthesia Apparatus
-
CE, ISO Apprroved Portable Veterinary Ultrasound Machines for Sale
-
Dog Pregnant Ultrasound Scanner Handheld Veterinary Ultrasound Machine
Product Details
| Type | Other | Brand Name | Carejoy | |
| Model Number | EKG-901V-2 | Place of Origin | Beijing, China |
Product Description
Portable Digital Veterinary 1-channel Electrocardiograph ECG Machine EKG
Features:

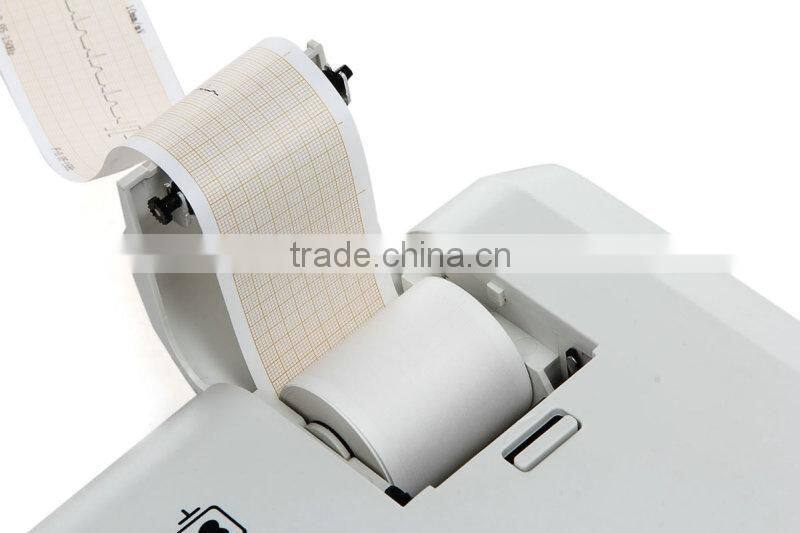

High-resolution thermal printing array system
Frequency response is as high as 150Hz
Capable of printing continuously on channel trace and annotations including lead mark and parameter such as sensitivity, paper speed and filter operation status
High resolution digital filter inhibits baseline drift without affecting ECG waveform
One-touch operation
Concept of floating input circuit meets IEC safety standard
Rechargeable battery supporting more than 50 patient examinations
Lead Standard: 12 leads
Specifications
| Input Circuit | Floating; Protection against Defibrillator effect |
| Lead | Standard 12 Leads, Lead change automatically |
| Patient Current Leakage | <10μA |
| Input Impedance | ≥10ΜΩ |
| Calibrating Voltage | 1mV±3% |
| A/D Conversion | 12 bit |
| Frequency Response | 0.05Hz~150Hz (IEC) |
| Time Constant | >3.2seconds |
CMRR | >80dB >100dB (with filter) |
| EMG Filter | 35Hz (-3dB) / 25Hz (-3dB) |
| Sensitivity | 1/2, 1, 2 (cm/mV), Conversion Deviation≤5% |
| Recording System | Thermal-array 8 dots/mm ( vertical ) 16 dots/mm ( horizontal, 25mm/sec ) |
| Paper Speed | 25, 50mm/s±3% |
| Recording Paper | 50mm,20m, high-speed roll |
| Input Circuit Current | ≤50nA |
| Safety Standard | IEC class I, type CF |
| Power Supply | AC: 220V / 110V, 50/60Hz DC: 12V rechargeable battery |
| Skin Voltage Tolerance | ±300mV |
| Noise Level | <15uVp-p |
| Dimensions | 310mm×230mm×70mm |
| Dimension of Packing | 400mm×280mm×160mm |
| Weight | 2.75kg |
