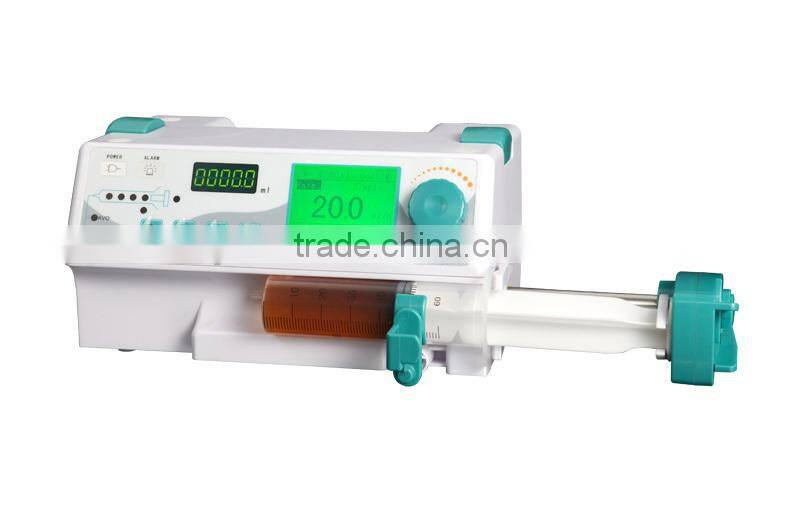

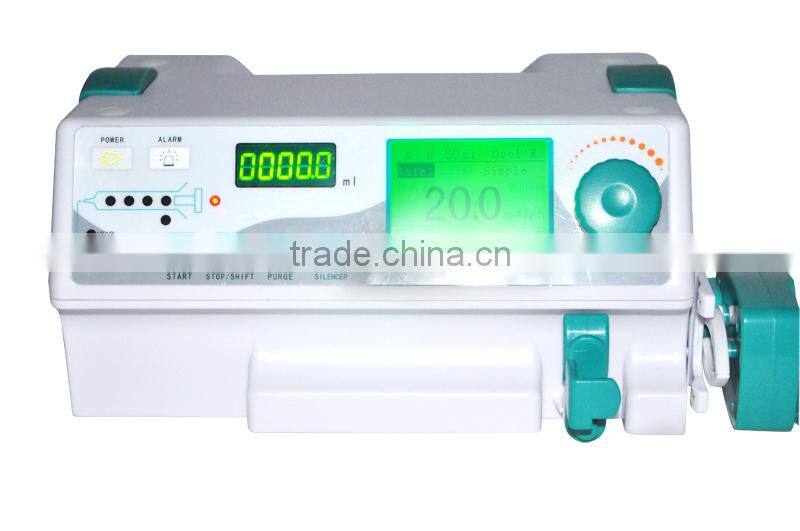

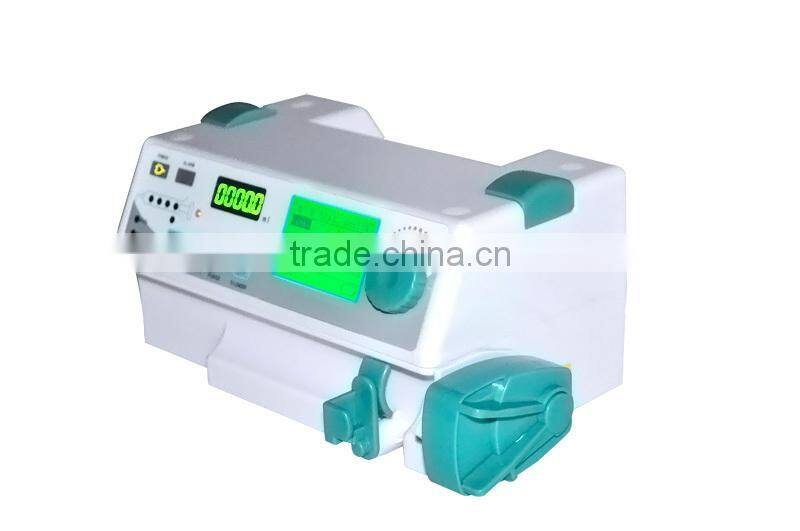

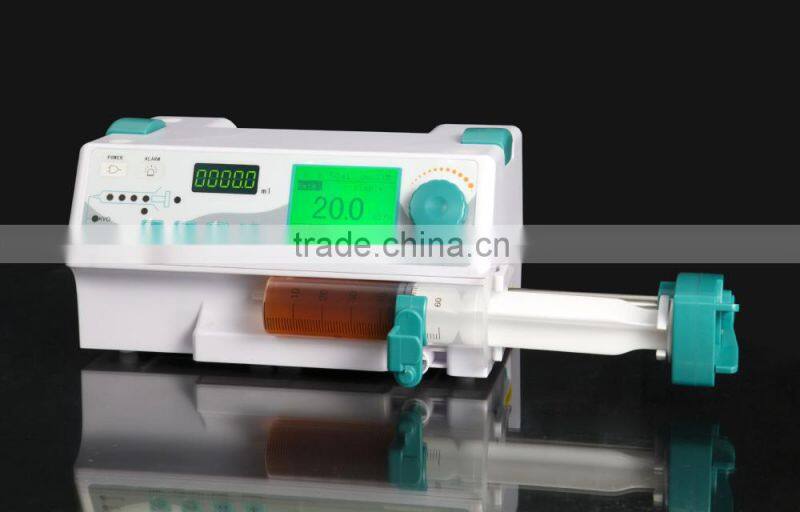

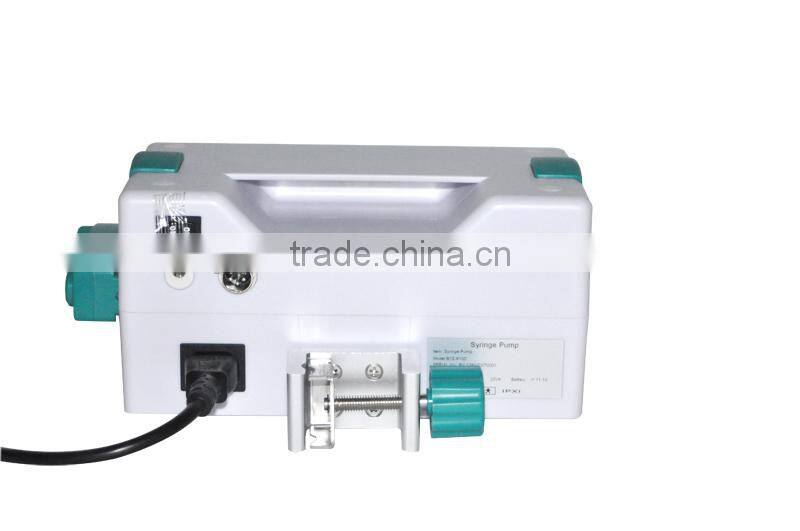

OEM Single-channel Electric Syringe Pump With Voice Alarm Medical Equipment Clinic Device-CE Approved SP-50B

Syringe Pump

Features:

1. Audible and visual alarm for occlusion, empty, near empty, low battery, end of infusion, syringe loose, wrong setting etc, which gains patents.

2. More Drug library.

3. Compatible with 10ml, 20ml, 30ml, 50ml syringe of any brands.

4. Preset Solution Volume to greatly reduce the workload of nurses.

5. Three work modes: Rate mode, Time Volume mode, Dosage Weight mode.

6. Three levels of occlusion: high, middle and low.

7. Purge and Bolus function.

8. KVO: KVO.

(keep-vein-open) automatically opens as infusion is completed. And KVO rate can be modified from 0.1ml/h to 10ml/h.

9. Freely Stackable: freely stack one onto another to provide multiple Solutions, which have a wide range of clinical applications.

10. Connecting Port for Nurse-Paging.

11. Power Source: AC100-240V, 50/60Hz; Internal Battery, DC12V car charge.

12. One-key operation makes setup easy and simple.

13. Syringe Plunger Grabble Detector, operable with one hand in a No-Germ Environment.

14. Automatically record of Infusion.

15. HD LCD Display, high capacity words, friendly user interface, dynamically display working status.

16. Syringe brand can be displayed, furthermore, syringe specification can be written into the pump.

17. language: English, Poland, Latvian, Russian etc.

18.Anti-Bolus etc can be available per customers request.

Specification:

Injection Speed:

- 50(60)ml Syringe 0.1ml/h---1500ml/h (0.1ml/h step)

- 30ml Syringe 0.1ml/h---900ml/h (0.1ml/h step)

- 20ml Syringe 0.1ml/h---600ml/h (0.1ml/h step)

- 10mlsyringe 0.1ml/h---300ml/h (0.1ml/h step)

Rate Accuracy within±3% (after correct calibration)

Mechanical Accuracy within±2%

Purge Rate

- 50(60)ml Syringe: 1500ml/h

- 30ml Syringe: 900ml/h

- 20ml Syringe: 600ml/h

- 10ml Syringe: 300ml/h

Bolus Rate

- 50(60)ml Syringe: 1200ml/h

- 30ml Syringe: 720ml/h

- 20ml Syringe: 480ml/h

- 10ml Syringe: 240ml/h

Volume Limit 0.1ml---999.9ml (0.1ml step)

Total Injection 0.1ml---9999.9ml (0.1ml step)

Occlusion

- High 800mmHg±200mmHg(106.7kPa±26.7kPa)

- Medium 500mmHg±100mmHg(66.7kPa±13.3kPa)

- Low 300mmHg±100mmHg(40.7kPa±13.3kPa)

Alarms - injection soon finish end of injection occlusion improperly

- installation of syringe wrong setting low battery etc

Power source - 100V---240V 50/60Hz Internal rechargeable Li battery

- volume≥1,600mAh 4 hours internal battery backup; DC 12V

KVO Speed - 1ml/h, can be modified from 0.1 to 10ml/h

Power Consumption 15VA

Operation Environment

a) Temperature +5---+40degree

b) Humidity 20---90%

c) Atmospheric Pressure 86.0KPa---106.0KPa

Storage

a)Temperature -30---+55degree

b)Humidity ≤95%

c)Atmospheric Pressure 50.10KPa---106.0KPa

Dimension 280mm(L)x 210mm(W)x 130mm(H)

Weight 2.2KG

Syringe compatible with any brand

Drug library more than 1000 drug names

Package 1pc for each Carton, 3.2KG
