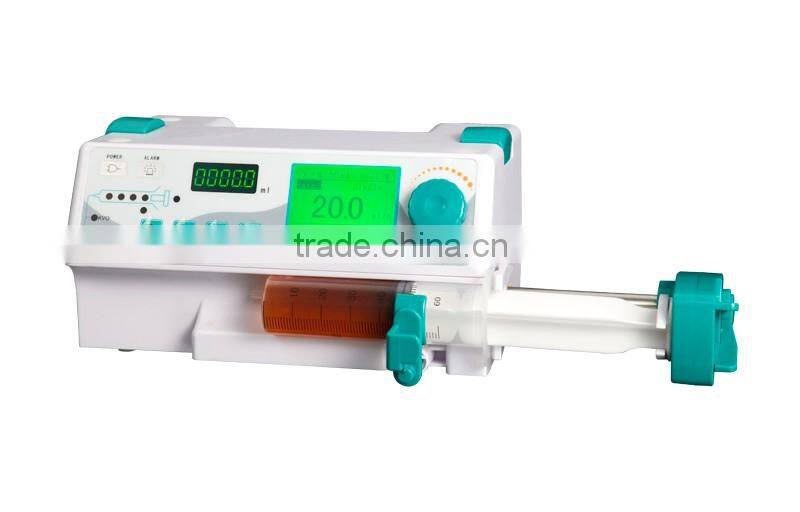

New Syringe Pump Single Channel Syringe Pump

CHARACTERISTICS

• Compatible with Syringes of any Brands
• Automatic calibration for Syringes of any Brand .
• Three working modes: Rate control mode, Time control mode and Dose-Weight control mode.
• Automatic Detection of Syringe types and settings.
• Broad range in delivery rate settings
  8 Hours internal battery life in high capacity.
  Three levels of alarm volume: high, medium and low.
• Three levels of occlusion pressure: high, medium and low.
• KVO function:After infusion is complete, the pump automatically switches to the smallest flow to prevent creating the thrombus.

SPECIFICATIONS

• Compatible Syringe: Any standard syringe with 10ml,20ml(30ml) and 50ml(60ml)
  Accuracy: ±2% (Any manufacturers of syringes, right after calibration )
  Delivery Rate Range:
• 50ml(60ml):0.1ml/h~1800.0ml/h (0.1ml/h step)
  20ml(30ml):0.1ml/h~800.0ml/h (0.1ml/h step)
  10ml:0.1ml/h~400.0ml/h (0.1ml/h step)
• Time Mode Range:
• Volume:0.1~999.9ml (0.1ml step)
  TIME:1~1999min (1min step)
  Body Weight Mode Range:
• Volume:0.1~999.9ml(0.1ml step)
  DRUG MASS:0.1~999.9mg(0.1mg step)
  DOSE:0.01~99.99ug/kg/min(0.01ug/kg/min step)
  WEIGHT:0.1~300kg(0.1kg the least step)
  Volume Limit Range: 0~1999.9ml (0.1 ml step)
  Total Volume Range: 0.1~1999.9ml (0.1 ml step)
  Rapid injection: 50ml(60ml):1800.0ml/h, 20ml(30ml):800.0ml/h, 10ml:400.0ml/h
• KVO Rate: 1ml/h
  Alarms:
• Near empty, Syringe empty, Volume complete(a volume limit has been set ), Occlusion, Syringe loose, Operation error, Low battery and other device failures.
• Power Supply:
• AC power supply: AC 100 to 240V±10%,50/60Hz;
  Internal LI Battery: 11.1V, 2000mAh. Approximately 8 hours of continuous operation on a new and fully  charged battery running at 5ml/h.
  Power Consumption: ≤25VA
  Safety level: Class I, Type BF
  Dimensions: 280mm(L)×160mm(W)×130mm(H)
  Net Weight: Approximately. 3.0kg
  Operating Conditions: Ambient temperature: 5 to 40℃ Relative humidity: 20 to 90%
  Storage Condition: Ambient temperature: -10 to 55℃ Relative humidity: 10 to 90%
• Accessories: AC power line, Operational manual
