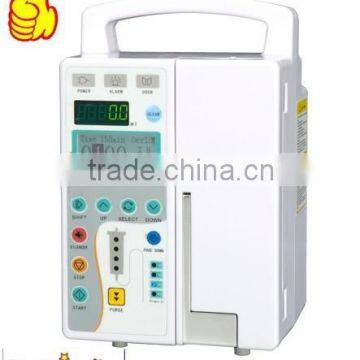

2016 Hospital and Clinic Brand New Infusion Pump(IP-50)

Features:

1. Audible and visual alarm for occlusion, empty, low battery, end of infusion, door open, wrong setting etc, which gain patents.

2. HD LCD Display, high capacity words, friendly user interface, dynamically display working status.

3. Compatible with any brand of infusion sets after correct calibration.

4. Preset Solution Volume to greatly reduce the workload of nurses.

5. Work mode: ml/h and drop/min can switch freely.

6. Three levels of occlusion: high, middle and low.

7. Purge function.

8. KVO: KVO (keep-vein-open) automatically opens as infusion is completed.

9. Power Source: AC100-240V, 50/60Hz; Internal Battery.

10. Automatically record the settings of last infusion can be available per customers request.

11. Language: English, Poland, Latvian, Russian etc.

Specification:

1. Infusion Rate 0.1ml/h---1200ml/h (1ml/h step ,input 016 when set the rate from 800 to 1200ml/h)

2. Rate Accuracy within±5% (after correct calibration)

3. Purge Rate 100ml/h---1200ml/h(can be calibrated)

4. Volume Limit 0ml---9999ml Total Infusion Volume 0---9999.9 ml

5. Alarm Pressure

High: 800mmHg±200mmHg(106.7kPa±26.7kPa)

Medium: 500mmHg±100mmHg(66.7kPa±13.3kPa)

Low: 300mmHg±100mmHg(40.7kPa±13.3kPa)

6. Alarms

end of injection, occlusion, door open, bubbles in the tube, wrong setting,

low battery, AC power pulled out etc

7. Power source 100V---240V 50/60Hz

8. Internal rechargeable Li battery volume≥1,600mAh

    4 hours internal battery backup

9. Bubble Detector ultrasonic wave detector, detection sensitivity ≥25μL

10. KVO Speed 1ml/h---5ml/h (1ml/h step)

11. Power Consumption 15VA

12. Operation Environment Temperature +5----+40 degree

Relative Humidity 20----90%

Storage Temperature -30-----+55 degree

Humidity ≤95%

Atmospheric Pressure 50.10KPa----106.0KPa

13. Weight 1.8kg

14. Dimension 140mm (L)x 157mm (W)x 220mm (H)

15. Infusion set brand Compatible with any brand

16.Forbidden Not support blood Infusion

17. Package 1pc per each Carton, 2.8KG
