Small Diameter Light Weight and Friendly Installation Fiber Optic Cable Making Equipment
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Southern China Biggest Fiber Cable Supplier Duct Aerial Strand Fiber Optic Cable
-
GYTC8A 48 Core Single Mode OS1 Aerial Fiber Optic Cable From Optical Fiber Cable Factory
-
GYTY53 Double Jacket 36 Core Fiber Optic Cable With PE/TPU/LSZH Sheath
-
24 Core Single Mode ADSS Outdoor Fiber Optical Cable for Canyon Construction
-
GYXTC8S Figure 8 Type 4 Core Aerial Fibre Optique Cable From China Manufacturer
-
Stranded Loose Tube Armored Cable GYTA53
Product Details
| Place of Origin | Guangdong, China | Brand Name | NECERO | |
| Model Number | N-GYXTC8S | Type | Coaxial | |
| Number of Conductors | 4 |
Product Description
small diameter light weight and friendly installation fiber optic cable making equipment
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
Attenuation (+20℃) | @850nm |
|
| ≤3.0 dB/km | ≤3.0 dB/km |
@1300nm |
|
| ≤1.0 dB/km | ≤1.0 dB/km | |
@1310nm | ≤0.36 dB/km | ≤0.40 dB/km |
|
| |
@1550nm | ≤0.22 dB/km | ≤0.23dB/km |
|
| |
Bandwidth (Class A) | @850nm |
|
| ≥500 MHz·km | ≥200 MHz·km |
@1300nm |
|
| ≥1000 MHz·km | ≥600 MHz·km | |
Numerical Aperture |
|
| 0.200±0.015NA | 0.275±0.015NA | |
Cable Cut-off Wavelengthλcc | ≤1260nm | ≤1480nm |
|
| |

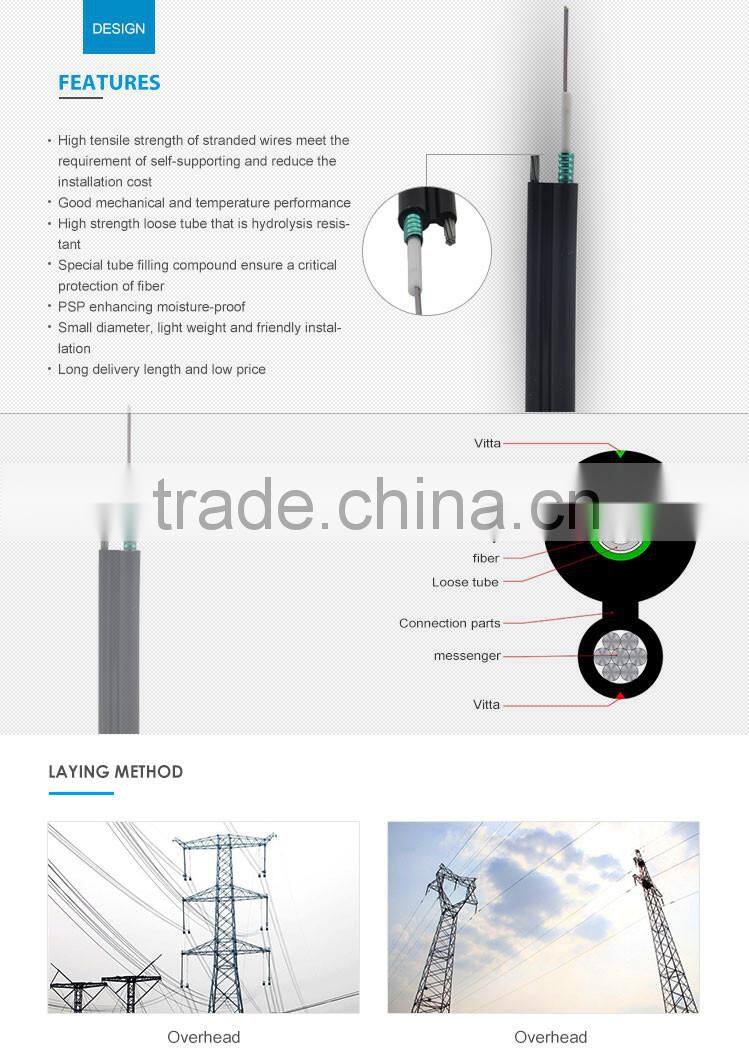

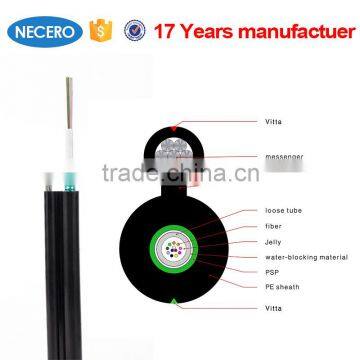

The fibers, 250μm,are positioned in a loose tube made of a high modulus plastic, the tubes are filled with a water-resistant filling compound. The two sides PSP are longitudinally applied over the outer loose tube. Steel wires and loose tubes filled with water proof compound to ensure compact and longitudinally water blocking ,this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.
