Home > Products > FTTH Cable > FTTH Indoor Cable 8cores

FTTH Indoor Cable 8cores

FOB Price

US$ 0.05 - 0.1 / Kilometer

2 Kilometers(Min. Order)

Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	NECERO
Model Number	FTTH		Type	Coaxial

Product Description

FTTH Indoor Cable 8cores

Packaging & Shipping

Packaging Details:	wooden drums or as your request
Delivery Detail:	within 15 days

Product Description

Description,

There are high quality 250μm fibers are placed in a loose tube made of a high modulus plastic which is filled with a water resistant filling compound.Two Parallel steel wires are placed at the two sides of the steel tape.The cable is completed with a polyethylene(PE) sheath.

Characteristics

1.Small diameter,light weight and friendly installation

2.High strength loose tube that is hydrolysis resistant

3.Special tube filling compound ensure a critical protection of fiber

4.Two parallel steel wires ensure tensile strength

5.long delivery length

6.Crush resistance and flexibility

Pictures

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20°C)	@850nm			≤3.5dB/km	≤3.5dB/km
	@1300nm			≤1.5dB/km	≤1.5dB/km
	@1310nm	≤0.45dB/km	≤0.5dB/km
	@1550nm	≤0.30dB/km	≤0.5dB/km
Bandwidth (Class A)	@850nm			≥500MHz.km	≥200MHz.km
Bandwidth (Class A)	@1300nm			≥1000MHz.km	≥600MHz.km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Technical Parameters

Cable Type	Fiber count	Cable Diameter MM	Cable weight kg/km	Tensile strength Long/short Term N	Crush Resistance Long/short Term N/100mm	Bending Radius Static/dynamic MM
GYXTPY	1-2	5.6	34	500	500	10D/20D
GYXTPY	3-6	6.0	38	500	500	10D/20D
GYXTPY	7-12	6.5	43	500	500	10D/20D

Fiber Count	Cable Diameter mm	Cable Weight Kg/km	Tensile Stregth Long/Short Term N/100mm	Crush Resistance Long/Short Term N/100mm	Bending Radius Static/Dynamic mm
1	(2.0±0.2)*(5.0±0.2)	20	60/120	300/1000	15/30
2	(2.0±0.2)*(5.0±0.2)	20	60/120	300/1000	15/30
1	(2.0±0.2)*(5.6±0.2)	21	60/120	300/1000	15/30
4	(2.0±0.2)*(5.6±0.2)	21	60/120	300/1000	15/30

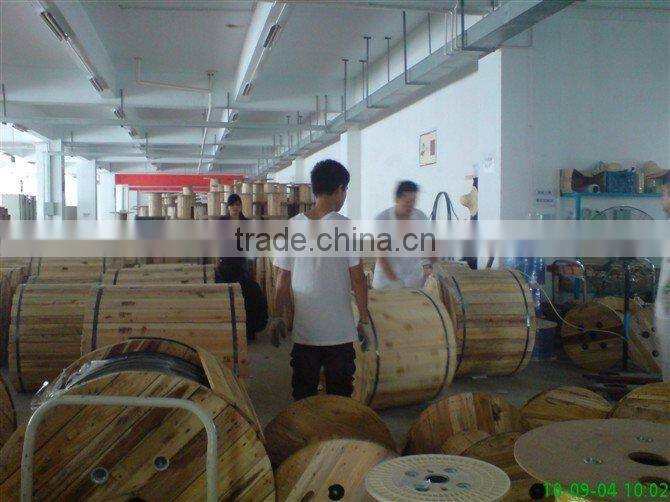

Factory
