transformer ups 6kva-200kva
Negotiable
/ Set
1 Set(Min. Order)
- GuangZhou
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | CAP transformer ups | |
| Model Number | transformer ups | Phase | Three Phase | |
| Protection | Other, overcurrent overvoltage short circuit unbalanced loads | Weight | 200kg-1650kg | |
| Output Voltage | 380v | Type | Other, On-line, transformer ups | |
| Application | Security / Monitoring / Alarm |
Product Description
Specifications
transformer ups1.with four -steps AVR
2.can drive AC,refrigerator,with RS232,SNMP.

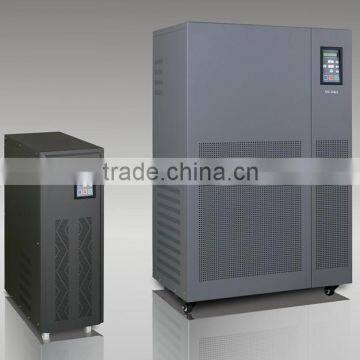

Transformer Ups
6kva-200kva
1.It can drive inductive load,airconditioner,refrigerator, TV,fan , also it can drive computer,ATM.
2.with RS232,SNMP.
3.Output pure sine wave
4.Has CE , ISO certificate
tection against short-circuit, overload
6.when the mains come, it willl start the unit automatically.
7. completely controlled by CPU, LCD automatic page turning display
tection against output short-circuit; Against overload, and when you throw off its load, it will turn on the unit automatically.
9.Can take pump or lift, and other industrial use
| Model | SS10 | SS15 | SS20 | SS30 | SS40 | SS60 | SS80 | SS | SS | SS | SS | |
| 100 | 120 | 160 | 200 | |||||||||
| Rated capacity | 10KVA | 15KVA | 20KVA | 30KVA | 40KVA | 60KVA | 80KVA | 100 | 120 | 160 | 200 | |
| KVA | KVA | KVA | KVA | |||||||||
| Operating principle | Pure sine wave dual conversion on-line | |||||||||||
| Phase | Three phase+N+G | |||||||||||
| Voltage | 380V±25% | |||||||||||
| AC input | Frequency | 50HZ±10% | ||||||||||
| DC input | Rated DC voltage | 360Vdc | ||||||||||
| floating voltage | 405Vdc | |||||||||||
| Cut-off voltage | 315Vdc | |||||||||||
| charging time | charge to 90% in 8 hours | |||||||||||
| AC output | Phase | Three phase+N+G | ||||||||||
| Voltage | 380Vac±2%( stable load), 380Vac±5%( fluctuant load) | |||||||||||
| Frequency | 50Hz±0.5%(On battery) | |||||||||||
| Power factor | 0.8 | |||||||||||
| Wave-form | Sine wave | |||||||||||
| Total Voltage harmonics distortion | Linear load <3%; non-linear load <5% | |||||||||||
| Output voltage transient characteristic | Load abrupt change From 0 to 100%) | |||||||||||
| <20ms | ||||||||||||
| Transient response time | ||||||||||||
| Crest factor | 03:01 | |||||||||||
| Overload protection | >125%,1min;>150%,200ms | |||||||||||
| Full load efficiency | ≥90% | |||||||||||
| Transfer time | 0ms | |||||||||||
| system spec | Protection | (Overload, over charge and over discharge; phase error, out the range of voltage and frequency, over current, short circiut, over temperature ect. ) | ||||||||||
| Display | LCD and LED indicator | |||||||||||
| Communication | RS232 interface and SNMP card(optional) | |||||||||||
| Environment temperature | -5~40°C | |||||||||||
| Relative ambient humidity | 20~95% (Non-condensing) | |||||||||||
| Altitude | <1500m,1% rated capacity decrease against rised 100m | |||||||||||
| Cooling method | Forced air-cooling with temperature control | |||||||||||
| Surge protection | 10/700Us,5KV ;8/20Us,20KA | |||||||||||
| IP21 | ||||||||||||
| Safety rate | ||||||||||||
| Noise(dB) | <55dB | <65dB | ||||||||||
| Dimension | 450*770*1000 | 700*853*1600 | 1070*900*1630 | 1390*960*1800 | ||||||||
| (W*D*H)mm | ||||||||||||
| 227 | 270 | 315 | 377 | 475 | 547 | 950 | 1000 | 1100 | 1650 | |||
| Weight(Kg) | ||||||||||||
