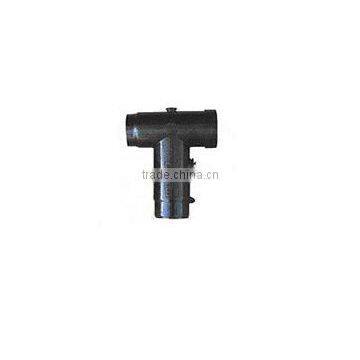

Cable Joints/Separable connector KHT-24/630 Shielded Sub-Connector
- Fuzhou
- T/T D/P D/A
You May Like
-
Cable Accessory RU YTGZ-24/630 Integral Dead Break Bushing
-
Cable Joints RU KQT-36/630 Shielded Fore-Connector
-
Cable Joints 630A,36KV Deadbreak Straight Connector
-
Separable connector/Cable joints 630A,24kV Unshielded Fore-Connector With Silicone Rubber
-
separable connector/ 630A,24kV Unshielded Sub-Connector With Silicone Rubber
-
separable connector /15kv/200A load break elbow connector
Product Details
| Place of Origin | Fujian, China | Brand Name | RU | |
| Type | Other |
Product Description
Specifications
1. Separable connector/cable joints2. shielded and insulated termination
3.630 A,24kV
4. KEMA report
5. samples available
cable joints / cable accessories /Separable connector
General
The RU KHT-24/630 Shielded Sub-Connector is shielded and insulated termination, rated 630 amps, up to 24kV, connected with underground cable ranging from 35 to 400 mm2(conductor cross section).
The RU KHT-24/630 Shielded Sub-Connectors are molded using high quality peroxide-cured EPDM insulation. It is used to connect underground cable to switchgear, RMU and 630 amps junctions equipped with deadbreak bushings. Shielded Sub-Connectors are designed for used on solid dielectric cable(XLPE or EPR).In order to provide more cable branch circuits, the Shielded Sub-Connectors can be connected with the CEE KQT-24/630 Shielded Fore-Connector or the CEE KQ-24/630 Shielded type Fore-Connector. It can also connect another Shielded Sub-connector in the tail by connecting plug.
The test point is available for use with hot line voltage indicators. As a alternative application, the Shielded Sub-connector can be mated with the type CEE KBLQ-17/45 surge arrester for over-voltage protection.
Electrical Characteristics:
Voltage Rating and Characteristics | |
Description | kv |
Standard Voltage Class | 10 |
Max Rating Phase to phase | 12 |
Max Phase to ground | 42 |
AC 50 Hz 1 minute Withstand | 53 |
DC 15 minute Withstand | 105 |
BIL and Full Wave Crest | 15 |
Current Ratings and Characteristics | |
Description | Amperes |
Continuous | 250A |
Switching | 10 operations at 200A, 14.4kv |
Fault Closure | 10kA |
Short time | 50kA rms symmetrical for 0.3s 20kA rms symmetrical for 4.0s |
Electrical Characteristics are in accordance with or exceed GB/T 12706.4-2002, ANSI/IEE 386-1995, IEC 60502-4:1997 | |
