Galvanized Mild Steel Grating

FOB Price

US$ 1,000 - 1,200 / Ton

5 Tons(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China		Brand Name	TUOHUA
Model Number	TH012203		Material	Steel

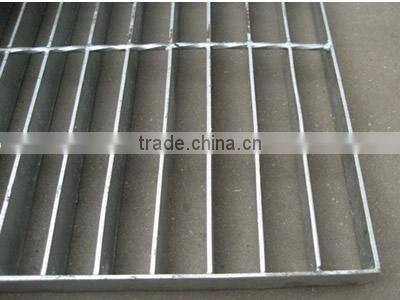

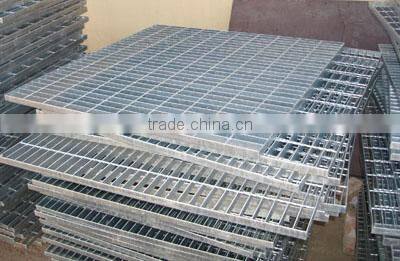

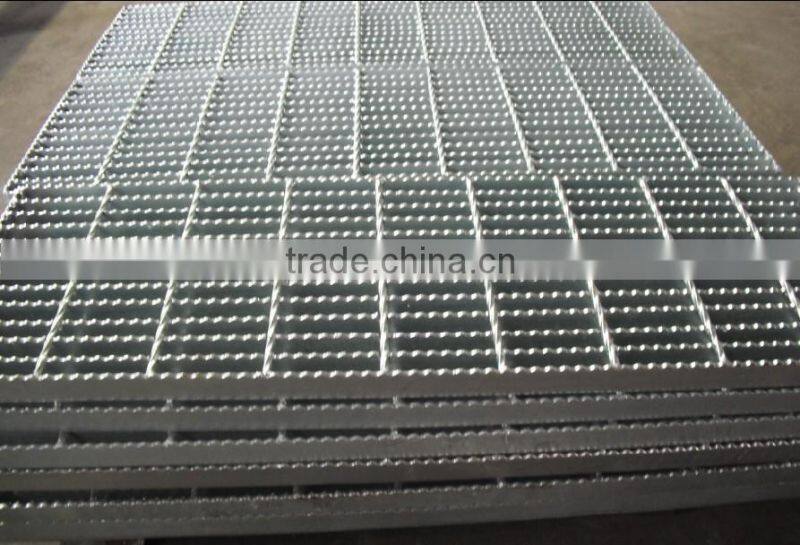

galvanized mild steel grating
ISO 9001 Certificate
Competitive Price
Professional Manaufacturer

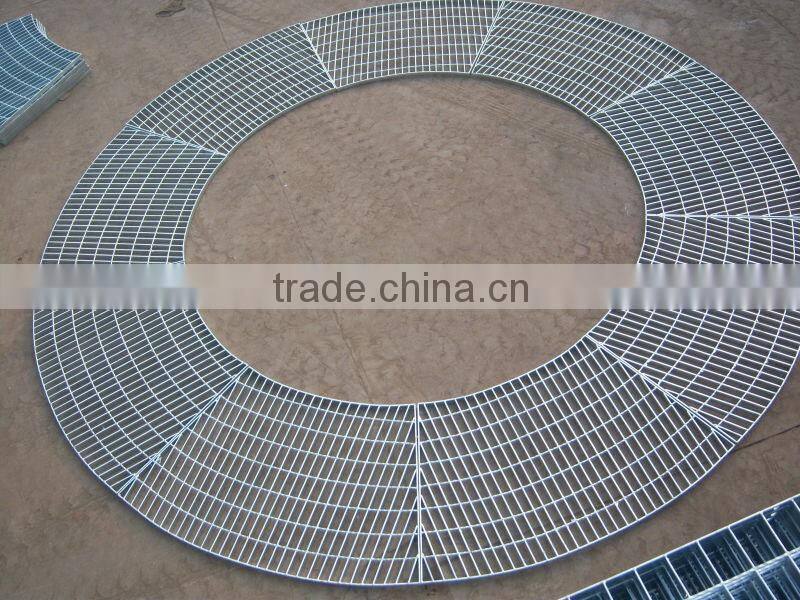

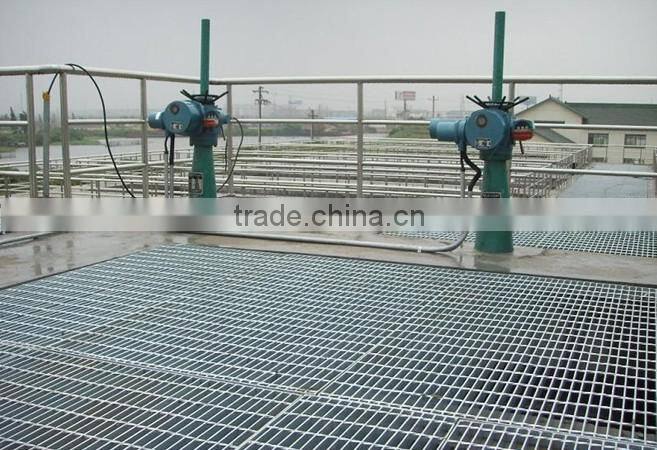

drainages and well covers etc. We can design and manufacture standard steel grating and in customized

shapes per client's requirements.

1) Steel grating Material:

Mild Steel (Low Carbon Steel) ( GB700,ASTM(A36),BS4360(43A) )

2) Surface Treatment:
Hot dip Galvanizing ( GB/T13912,ASTM(A123),BS729 )

3) Steel grating standards:
A) China: YB/T4001

B) USA: ANSI/NAAMM (MBG531)
C) UK: BS4592

D) Australia: AS1657

E) Japan: JJS

No.	Item	Description
1	Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
2	Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3	Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
4	Material Grade	ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc
5	Surface Treatment	Black, self colour, hot dip galvanized, painted, spray coating

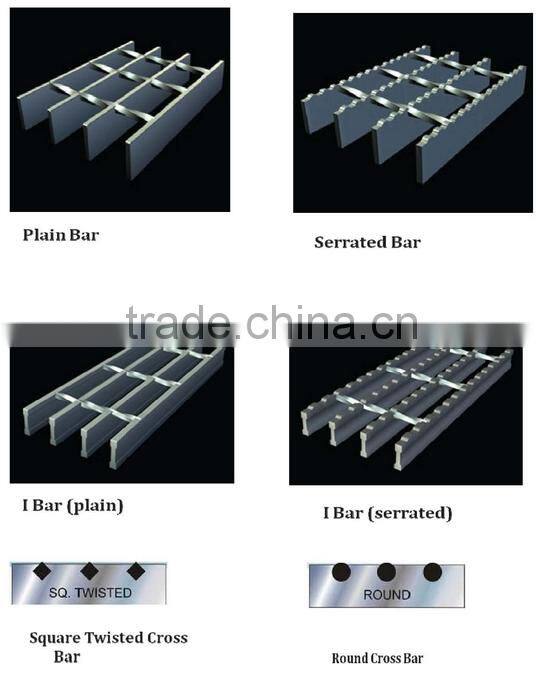

6	Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7	Standard	China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan: JIS
