SSC 450 Small Model Filtration Continuous Centrifuge Machine

Structure and Feature

1.using a large fiat structture,liquid isolution devices ,centrifuge run more smoothly

2.using frequency convercer control ,start a smooth.low energy consumption ,adjustable separation factor .

3.set a feeding tube ,washing pipe ,observation mirrors ,light,reasonable structure,components ,smooth transition to the surface by the polishing treatment an effective removal of a health comers ,external structural components ,fasteners,and drum are made of stainless steel production in line with GMP standard ,

4.Clamshell  shell  can centrifuge drum shell and mezzanine space for thorough cleansing

5.simple structure ,easy operation and maintenance

6.Airtight structure ,sealing with silicone rubber and fluorine rubber ,can be realized sealed explosion -proof requirements ,suitable for toxic and flammable ,explosive occasions applications

7.Versatility suitable for a wide range

ild die easily broken .

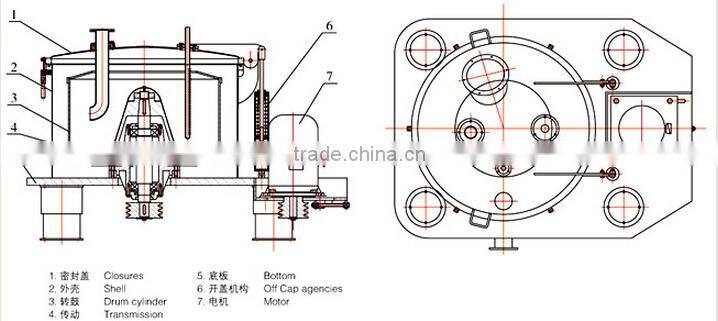

Product drawing

Products are mainly used

Pcs-type centrifuge is high performance manual intermittnet operation of the upper discharging centrifuge filtration equipment ,Suitable for viscosity ,hydrophilic strong ,difficult to separator with the fineness of granular or fibrous material suspension to soild ,;iquid separation operation ,not only suitable for small quantities of many varieties of materials separation ,it is suitable for mass production , widely used in pharmaceutical chemical mining,light industry ,food and other areas.For example ,gypsum ammonium ,sulfate Glauber's salt ,iron sulfate ,copper sulfate ,nickel sulfate ,potassium chloride ,sodium acetate ,borax ,soda ,rubber additives ,dye ,plastic raw materials ,soap,grease,all kinds of resin ,salt ,monosodium glutamate ,food additives ,starch,sugar ,vitamins ,antibiotics,herbicides ,copper ,znic and aluminum slag dehydration .

Main technical parameters

titanium centrifuge for chemical industry

PSC series  titanium centrifuge is a kind of improved centrifuge base on SS series three feet up discharge centrifuge. It retain the advantage of SS series centrifuge, also reduce labor intensity, quickly discharge, easily clean the filter bag, increase the production efficiency, Avoid contamination and throw of the finished product caused by artificial discharging. SD series centrifuge is fixed for that suspension liquor of high loose, moderate size, difficult to compress, need washing and low viscosity. It is widely used in chemical industry etc.

Structure & principle of titanium centrifuge:

The drum runs with high-speed by motor, materials enter the drum from top feed pipe ,then run forward to the shell of the drum by centrifugal force, in this case liquor pass through the sieve pore and sieve pore of the shell, then be discharged. Then solid be hold in the drum. After the separation open the machine, loosen the lock blocks on lip ring, and suspend the lip ring together with the filter bags containing cake to discharge. Loosen the grip, make sure the filter bag open, then the filter cake will automatic drop down.
