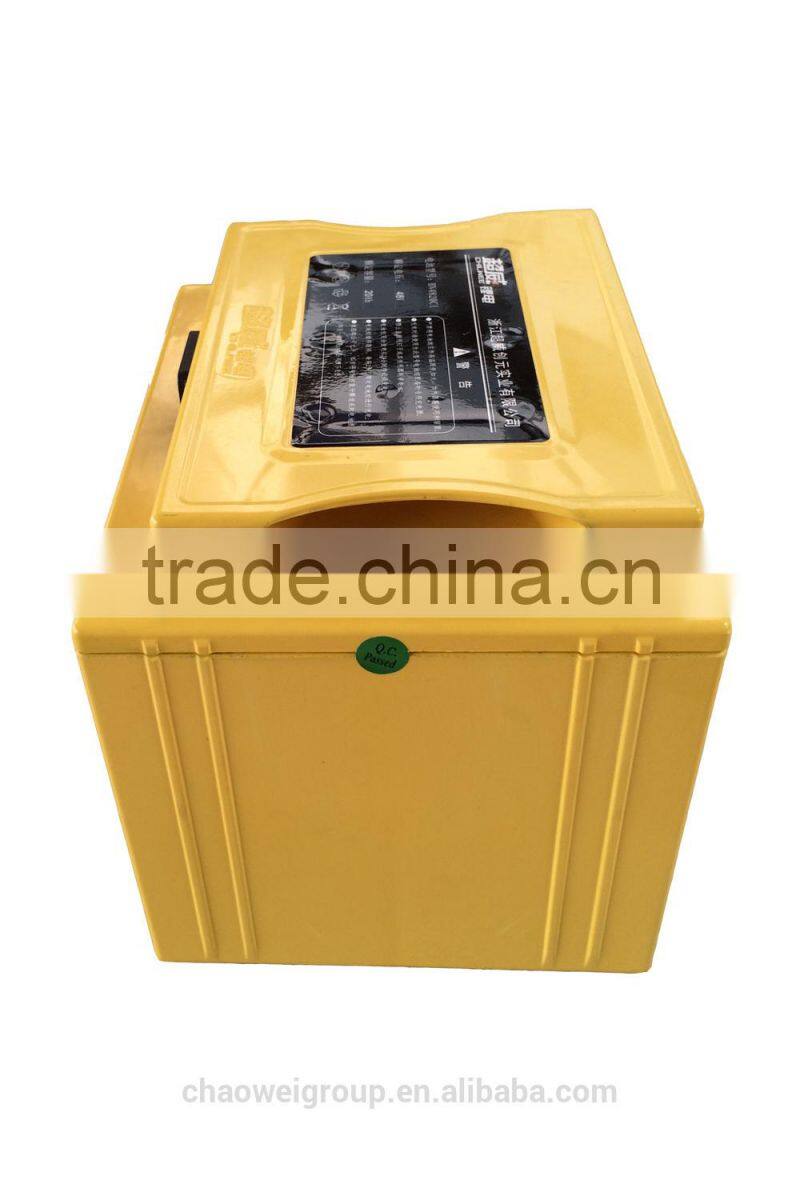

E-bike Lithium Battery 48V20A BN4820CI

FOB Price

Negotiable / Piece

50 Pieces(Min. Order)

Port Shanghai Seaport
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Chilwee
Model Number	BN4820CI	Type	Li-polymer
Nominal Voltage	Other, 48V	Size	Other, 195mm X 160mm X 175mm
Nominal Capacity	20Ah

Product Description

General Information

Chilwee BN Series Lithium Ion Battery Pack is designed based on MnNiCo Ternary technology with excellent cycle performance and high safety.BN Series is mainly applied to electric bicycles, tricycles and other electric vehicles. The battery module is comprised of soft-packed battery cells in series and battery protection module is included to ensure supreme reliability.

Features

• Modularized design and pefectly compatible to the electric bicycles which are using traditional VRLA batteries

• 'Green " and environment-friendly, no pollution to the environment during production and normal usage

• Stable structure and simplified production process enables mass production and easy maintenance

• Completely new protection design of water-proof, fire-proof, shock-resistance enable high safety

• Professional protection module and BMS ensures the battery pack to be protected perfectly

• High weight and measurement specific energy ensures the battery pack extremely long-voyage ability

• Super long life supported by innovative technologies, high quality material and strict manufacturing control

Applications

1. Electric Bicycle or Scooter

2. Electric Tricycles, or electric vehicles

Sepcification

Battery Model No.		BN4820CI
Material		MnNiCo Ternary Material + LiMn2O4
Nominal Voltage (V)		48V
Nominal Capacity (C2, 25℃ )		20Ah
Battery Pack Dimension (mm)		195mm X 160mm X 175mm (L X W X H)
Nominal Weight (Kg)		7.1Kgs ± 0.1
Charge Limited Voltage (V)		54.6V
Continuous Charge Current (A)		4A
Maximum Charge Current (A)		10A
Charging Mode (Constant Current/Constant Voltage)		4A X (4h-6h)
Discharge Cut-off Voltage (V)		≥ 39.5V
Continuous Discharge Current (A)		≤ 15A
Maximum Continuous Discharge Current (A)		≤ 25A
Cycle Life at 100% D.O.D.		≥ 800 Cycles

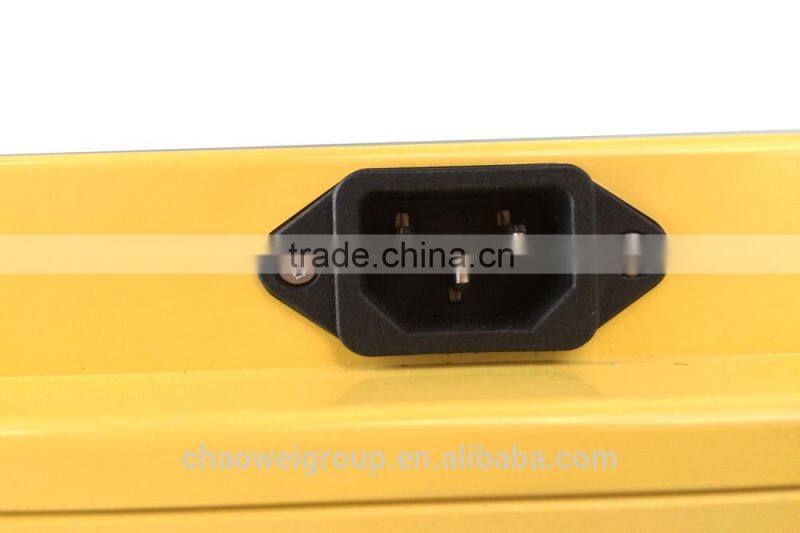

Charge Port / Discharge Port		3 Square Pin Plug / N-Positive, L-Negative
Capacity Retention Rate at 0℃		≥ 90%
Self-Discharge Rate (25℃)		≤ 3% per month
Temperature Characteristic	Charging	0℃ - 40℃
	Discharging	-20℃ - 40℃
	Storage	-20℃ - 40℃
