SQB Energy Storage/ SQD Starting Coiled Battery

SQB Energy Storage Series
Pure lead wound valve regulated sealed battery (SQB series). The battery adopts a high-purity lead skeleton equipped with a spiral winding structure, which has advantages such as better high and low temperature and high rate discharge performance, higher safety, and better fast charging ability.
Application scenario:
Various backup power sources such as UPS, communication base stations, solar energy storage, smart grids, etc
Advantages:
Capable of operating at -45 ℃ -75 ℃, with a 100% DOD cycle life of 350 times, and a floating charge design life of 15 years
technical characteristics
Adopting a thin and high-purity lead skeleton design, it has higher acceptance efficiency for low current charging; Spiral winding design can avoid battery dehydration and bulging deformation in high-temperature environments; More than 95% of the battery can be charged within 40 minutes, with good battery consistency and the ability to use multiple sets in series and parallel

Specification parameters of SQB energy storage series

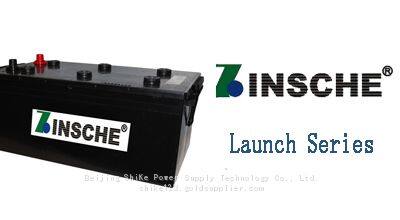

SQD startup series

Senquan ZINSCHE lead carbon wound high-energy and environmentally friendly batteries, with added composite carbon materials, improve the conductivity and specific surface area of active substances, forming a continuous conductive network; Spiral winding structure with high assembly pressure. The thin plate design has a large reaction area and low internal resistance, which can provide stronger power for the vehicle at the moment of starting and reduce motor losses.
Application scenario:
Vehicle start, generator set start, vehicle start stop system, hybrid electric vehicle
advantage
Starting performance: The cold starting current can reach up to 16C20, requiring only 1/2 of the capacity of a regular battery to start. Anti vibration performance: The anti vibration performance is 15 times that of a regular battery, which can easily cope with various complex road conditions. Starting lifespan: Up to 180000 starts, and the lifespan is 4 times that of a regular battery
technical characteristics
Adopting a thin plate design, it has a larger specific surface area and an internal resistance only 1/3 of that of a regular battery. After startup, the battery charges quickly, reducing the damage caused by long-term charging to the battery; Adopting a valve controlled sealed design, there is no problem of acid leakage, and it is not limited by space. The battery can be placed in any direction; Adopting a spiral winding design, the battery has a cylindrical structure, which is stable and avoids bulging due to high temperatures; By adding self-developed composite carbon materials, it has excellent charging acceptance performance, improves negative electrode salinization issues, and extends the starting life under partial state of charge.

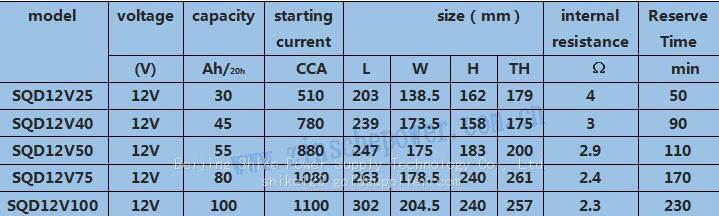

SQD startup series specification parameters
