Home > Products > Electric Scooter Battery > Chilwee MF Silicone Gel Battery 12V14AH/20HR for UPS Application
Chilwee MF Silicone Gel Battery 12V14AH/20HR for UPS Application
Negotiable
1 (Min. Order)
You May Like
-
Chilwee MF Silicone Gel Battery 12V33AH/20HR for Electric Bicycle (Screw Terminal)
-
Chilwee MF Silicone Gel Battery 12V33AH/20HR for Electric Wheelchairs
-
Chilwee MF Silicone Gel Battery 12V120AH/3HR High Power for Electric Golf Cart
-
6-EVF-32 12V 32Ah @3hr Rate Plus Battery
-
Gel Battery Maintenence- Free 6-EVF-32+ 12V 32Ah @3hr Rate Plus
-
6-EVF-38 CHILWEE Silicone Gel Battery 12V38AH@3HR for E-bike
Product Details
| Brand Name | Chilwee | Model Number | Chlwee 6-DZM-12 PLUS | |
| Type | Other, Silicone Gel | Nominal Voltage | 12V | |
| Size | Other, 151*99*101mm | Nominal Capacity | 12V |
Product Description
Specification
| Nominal Voltage (V) | 12V | ||||||||
| Open Circuit Voltage (V/Block) | 13.1V - 13.45V | ||||||||
| Number of Cells (Per Block) | 6 Cells | ||||||||
| Rated Capacity (Ah, 25℃) | 2h rate (to 1.75V/Cell) | 12Ah | |||||||
| 3h rate (to 1.75V/Cell) | 12.7Ah | ||||||||
| 5h rate (to 1.80V/Cell) | 13.6Ah | ||||||||
| 20h rate (to 1.85V/Cell) | 16.5Ah | ||||||||
| Nominal Weight (Kgs) | Approx. 4.5 Kgs | ||||||||
| Dimension (L X W X H, Total Height. mm) | (151mm±2) X (99mm±2) X (97mm±2), (101mm±2) | ||||||||
| Container Material | Enhanced ABS | ||||||||
| Charge Voltage | Float (V/Block) | 13.50V - 13.80V | |||||||
| Cycle (V/Block) | 14.50V - 14.80V | ||||||||
| Maximum Discharge Current (A) | 100A (5s) | ||||||||
| Maximum Charge Current (A) | 2.0 A | ||||||||
Manufacture facility

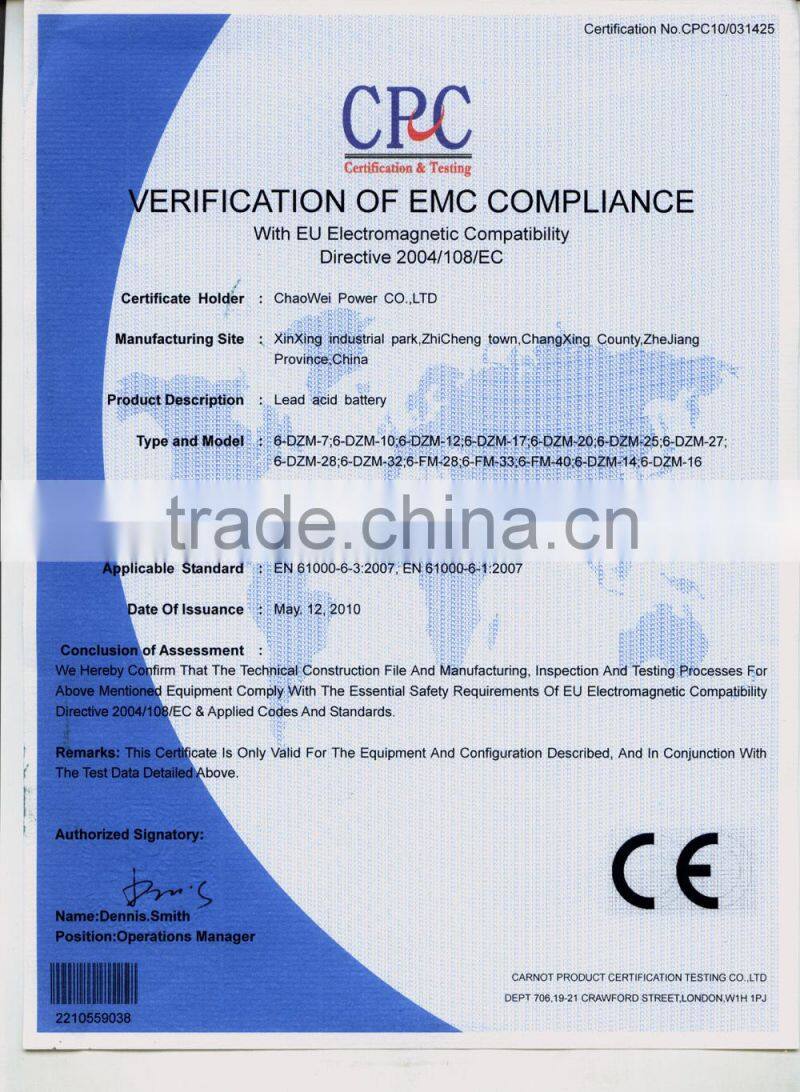

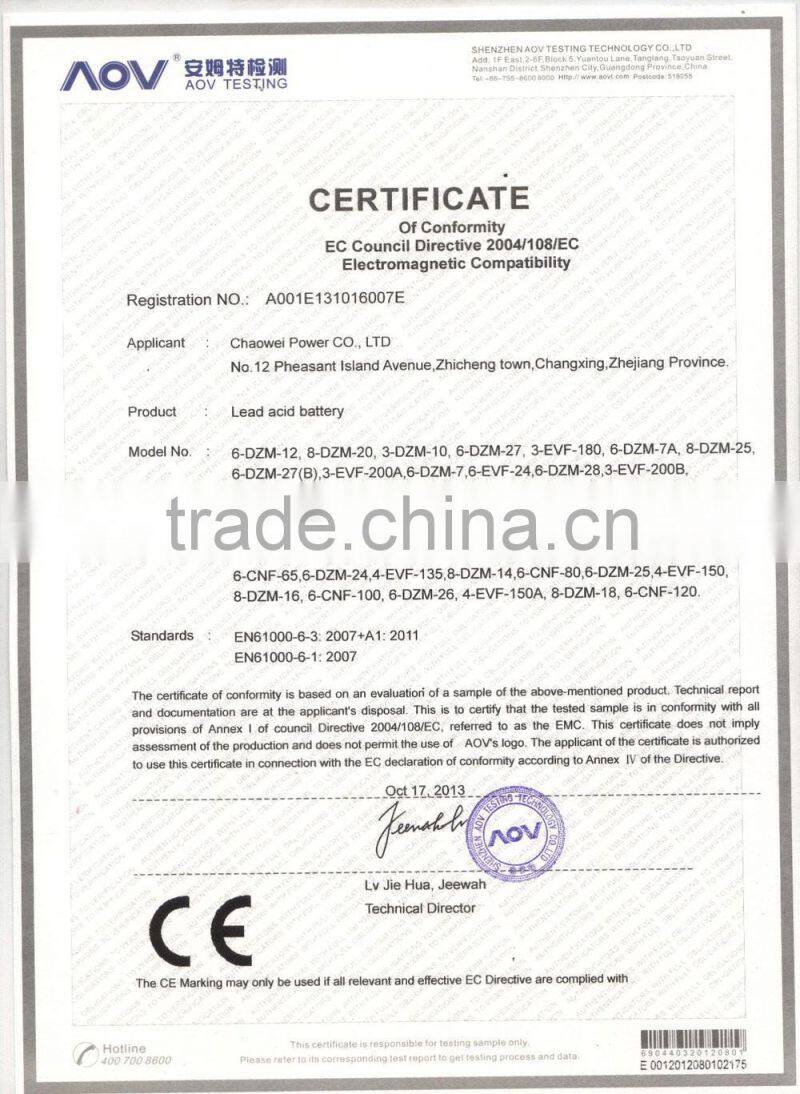

Certifications
advanced laborotary
Features
| Non-Cadmium Design, Environment-friendly: Chilwee Battery has adopted internationally leading technology - container formation non-cadmium production technology, which is in the leading position in the industry. It helps to save energy 28.5%, save water 90%, and non-discharge of waste water. | |||||||||
| Super Long Voyage Ability: The discharge time of Chilwee battery is prolonged. Active additive has been added in postive plates, so as to good consistency of the formated active material. This enables the battery has high charge/discharge efficiency, and the power output is elevated. | |||||||||
| Strong Motive Power: Super thin plate design is adopted to increase the area of the plates macroscopic electrochemical reaction, which enables the battery has excellent large current discharge ability. Adopting Direct Cast-Welding Process to reduce the battery's internal resistance, and it improves battery charging acceptance capability and large current discharge capability. Battery's charge/discharge efficiency is high. | |||||||||
| High Durability: The Chilwee battery has excellent cycle life which can reach 600 cycles @ 80% DOD. The battery banks has good consistency. Enhanced ABS material has been adopted on battery container and lid, and the battery is well sealed to prevent leakage. | |||||||||
| High Reliability and Safety: Improved negative material prescription and increased micropoles structure at negative helps to improve a lot on low temperature charge/discharge performance. Low water loss rate, high temperature resistance, and the pressure value of Open/Close safety valve is accurate to prevent battery bulging. Safety valve and acid filter can efficiently prevent sparks splashed into battery to ensure safe operation. | |||||||||
