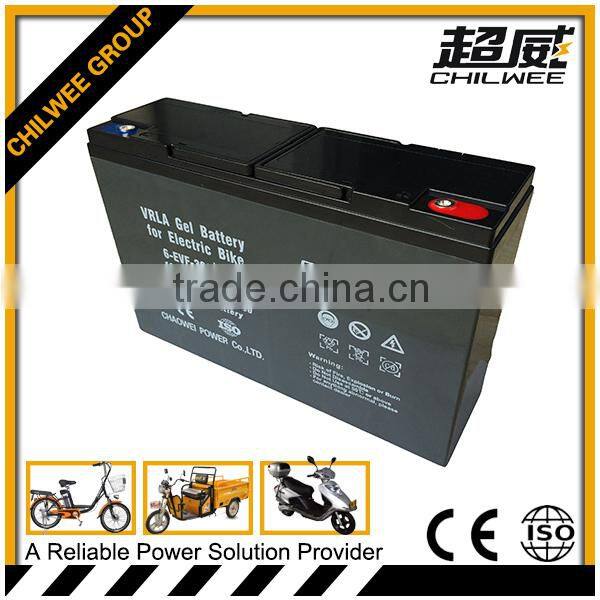

12v32Ah Sealed Lead Acid(SLA) Rechargeable Battery for Electric Bicycle

FOB Price

Negotiable / Piece

200 Pieces(Min. Order)

Port Shanghai Ninibo
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Chilwee
Model Number	6-DZM-32+	Type	Other, Rechargeable battery
Nominal Voltage	12V	Size	Other, 26777170mm
Nominal Capacity	32AH/2HR

Product Description

Chilwee Plus Series VRLA Gel Battery is designed based on DZM series supported with Direct CastWelding Technology, which enables the battery with an excellent large current discharge capability and larger capacity. The Chilwee Plus Series provides longer voyage and stronger power for motive power applications, i.e. electric bicycles, electric tricycles, electric motocycles and other device require DC power source.

1. Electric Bicycles

2. Electric Tricycles

3. Electric Scooters

4. UPS

5. Other DC power system

FEATURES

Non-Cadmium Design, Environment-friendly: Chilwee Battery has adopted internationally leading technology - container formation non-cadmium production technology, which is in the leading position in the industry. It helps to save energy 28.5%, save water 90%, and non-discharge of waste water.


Super Long Voyage Ability: The discharge time of Chilwee battery is prolonged. Active additive has been added in postive plates, so as to good consistency of the formated active material. This enables the battery has high charge/discharge efficiency, and the power output is elevated.


Strong Motive Power: Super thin plate design is adopted to increase the area of the plates macroscopic electrochemical reaction, which enables the battery has excellent large current discharge ability. Adopting cast-weld process to reduce the battery's internal resistance, and it improves battery charging acceptance capability. Battery's charge/discharge efficiency is high.


High Durability: The Chilwee battery has excellent cycle life which can reach 600 cycles @ 80% DOD. The battery banks has good consistency. Enhanced ABS material has been adopted on battery container and lid, and the battery is well sealed to prevent leakage.


High Reliability and Safety: Improved negative material prescription and increased micropoles structure at negative helps to improve a lot on low temperature charge/discharge performance. Low water loss rate, high temperature resistance, and the pressure value of Open/Close safety valve is accurate to prevent battery bulging. Safety valve and acid filter can efficiently prevent sparks splashed into battery to ensure safe operation.


SPECIFICATION

Nominal Voltage (V)		12V
Open Circuit Voltage (V/Block)		13.1V - 13.45V
Number of Cells (Per Block)		6 Cells
Rated Capacity (Ah, 25℃)	2h rate (to 1.75V/Cell)	31Ah
	3h rate (to 1.75V/Cell)	33Ah
	5h rate (to 1.80V/Cell)	35Ah
	20h rate (to 1.85V/Cell)	39Ah
Nominal Weight (Kgs)		Approx. 10.5 Kgs
Dimension (L X W X H, Total Height. mm)		(267mm±2) X (77mm±2) X (170mm±2), (170mm±2)
Container Material		Enhanced ABS
Charge Voltage	Float (V/Block)	13.50V - 13.80V
	Cycle (V/Block)	14.60V - 14.80V
Maximum Discharge Current (A)		225A (5s)
Maximum Charge Current (A)		4.4 A

Packaging & Shipping

Paper carton for per bank battery, Then stripped with plstic pallet.

7-10 Days

Our Services

Chilwee products have already been distributed in all over world, and local service facilities are being deployed in each region. Chilwee is committed to provide complete services including technology training, warranty replacement service, fault analysis trouble-shooting, battery maintenance service and battery disposal service, etc.
