YT-P2 No-nail box making machine
- shagnhai or ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Automatic Grade | Automatic | |
| Usage | Other Forming Machine | Place of Origin | Zhejiang, China | |
| Brand Name | Yutong | Model Number | YT-P2 | |
| Voltage | 380V | Power(W) | 5.5KW | |
| Dimension(L*W*H) | L=3300mm B=1200mm H=1000mm | Weight | 1500 kg | |
| Certification | EU CE Certificate, ISO9001 2008 Authentication | Warranty | One year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
What makes us better than others

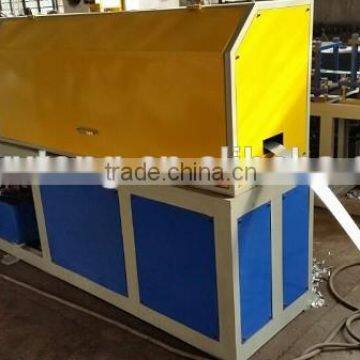

YT-P2 No-nail box making machine
This Roll Forming Machine consist of sheet feeding device, roll forming main machine, hydraulic system, PLC controller.
Working Flow
sheet feeding--roll forming--automatic cutting--run out table
Main Parameter
No | Item | Parameter | Note | ||
1 | Suitable
Material | Type | Pre-paint Steel Aluminum |
| |
Width | 40mm-42mm |
| |||
Thickness | 0.70mm—0.80mm |
| |||
2 | Product Specs | Length | Any length | Adjustable | |
3 | Machine
Material | Active shaft | No. 45 steel tempered |
| |
Roller | No. 45 steel chrome plated | ||||
Cutting Blade | Cr12 quenched | ||||
4 | Power Requirement | Type | 380V/3PH/50HZ |
| |
Total | 7.5kw |
| |||
Hydraulic | 4kw | ||||
5 | Speed | Forming speed | 15-18m/min | Adjustable | |
7 | Speed | Product speed | 5-10m/min | Adjustable | |
8 | Transmission style | Chain, sprocket |
| ||
9 | Main machine structure | Wall Panel |
| ||
10 | Type of Cutting | length-set cutting | Hydraulic cutter | ||
11 | Control System | Mitsubishi PLC& transducer |
| ||
12 | Product support | Run out table | |||
Detailed Picture
Nailless / Foldable / Collapsible / No-nail Plywood box machine
Rollers
moulds
safty shield
Steel Strip / Belt / Band
buttons
Nailless / Foldable / Collapsible / No-nail Plywood box
If you have any question pls let us know when you feel free, thank you!
