YT-R7 Roll forming machine

FOB Price

USD $1 - $49,999 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Zhejiang, China
Brand Name	Yutong, Yutong	Model Number	YT-R7, YT-F1
Voltage	380V	Weight	16000KG, 16000kgs
Certification	EU CE Certificate, ISO9001 2008 Authentication	Warranty	one
Dimension(LWH)	16.8m x 1.78m x 1.72m

Hangzhou YuTong Machinery CO.,LTD according to market demand by cold rolling equipment experience independently designs a series or products.

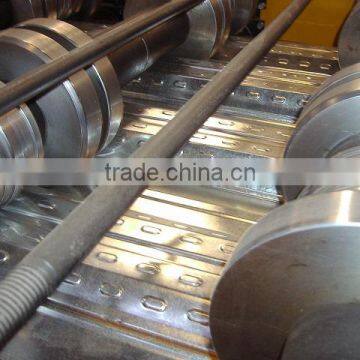

Product's name: Floor deck roll forming machine

Specifications

Floor deck roll forming Machine
1) Diameter of shaft: 88mm
2) Thickness of wall penal: 22mm
3) rollers be digital processed...

Floor deck roll forming machine

1.Technical parameter

Item		Specification
Material	Type	galvanized coils
	Thickness(mm)	0.8-1.1mm
	Yield strength(mpa)	235
Roller material		45#Chrome steel
Forming speed(m/min)		15-20
Output speed(m/min)		depend on length of per piece
Speed adjusting mode		AC Frequency
Roller drive		Decelerating motor + Chain drive
Cutting mode		Hydraulic cutting
Cutter material		Cr12 mould steel
Length measurement		Encoder
Control mode		Mitsubishi PLC
Operating mode		Button + Mitsubishi Touch screen
Main motor power(kw)		11KW x 2
Hydraulic station motor power(kw)		5.5 KW

2. Components of machine

3.Process flow

Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table

Main technical parameter

1.Support put rack

2.Rollers:20

3.Module material:45#steel,surface hardening

4.Transmission:16A chain

5.Motor power: 5.5KW

6.Major machine size: 16.8m x 1.78m x 1.72m

7.Electric Control:PLC industrial control,Encoder.Imported editor,English screen

Frequency converter.

8.Hydraulic pull litre (stamping die cuttingmould,hydraulic pressure Forming scissors

9.Hydraulic cutting,hydraulic electrical machinery: 5.5K

Pressure:25Mpa

Module material:45#steel, Surface nitriding process

Blade material:Cr12, Surface nitriding process

10.Forming speed: 15-20/min.( According to the pich length)


Please inquire us to get detail technical parameter

And We can design the different machines up to the different requirements
