Fully Automatic Plastic Thermoforming Machine for Cup Lid /spoon Tray
- Ningbo/Shanghai
- T/T
You May Like
-
Fully Automatic Mini Thermoforming Machine for Cup Lid /tray/small Plastic Capsules
-
Fully Automatic Plastic Container Machine
-
Fully Automatic Mini Making Machine Plastic Cups Cover
-
Fully Automatic Cup Lid /tray Thermoforming Machine Price
-
Fully Automatic Mini Thermoforming Machine Trays/cup Lid
-
Fully Automatic Mini Thermoforming Machine Blister for Cup Lid /tray
Product Details
| Type | Other, Thermoforming Machine, Blister Packaging Machine | |||
| Plastic Type | PE | Product Type | Blister | |
| Automatic | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | JINDE | Model Number | JD-420C | |
| Voltage | 380V 50HZ | Power(W) | 5kw | |
| Weight | 1000kg | Dimension(L*W*H) | 2960x750x1520mm | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
spoon tray
Characteristic:
This plastic forming machine is used for molding the plastic material as BOPS/HIPS/PS/PVC/PET and so on, which is widely used for the minitype soup spoon/ the cover of the dish such as the salver of medicine and coffee, the bottleneck of Coca-cola, tray ....
The machine integrates of electricity and optics the technology like: PC auto-controlling, transducer regulating, the piece of material heated up by temperature, molding by air-press to cutting the finished product, and the numbers of the products can input to the machine. The flow is in a high automatic fuction. It is configure the PLC computer control.
Main Technical Parameter
Model | DDP-420C |
Application | Used for minitype soup spoon ,the cover of the dish such as the salver of medicine and coffee ,the bottleneck of coca-cola ,tray …… |
Suitable Materials | BOPS HIPS PS PVC PET |
Max Foaming Area (mm) | 420×160mm / 420×280mm(special design) |
Max.Forming Depth (mm) | 35mm / 55mm(special design) |
Thickness Range of Sheet (mm) | 0.1-1mm |
Max Sheet Roller Diameter (mm) | 710mm |
Max. Rewinding Diameter (mm) | 420mm |
Max Cutting Length (mm) | 160mm / 280mm(special design) |
Air Pressure (mpa) | 0.4-0.7MPa |
Air Consumption (liters/min) | ≥0.3(m 3/h) |
Water Consumption (liters/min) | Use of water cooling or chiller cooling |
Max Speed | 8-32 time/min |
Power Supply | according to customer local requirement and amendment |
Heating Power (KW) | 3kw / 6kw |
Totally Power (KW) | 380V 50HZ 5KW |
Weight (kg) | 1000kg |
Dimension (mm) | 3000×950×1500mm |
Some Part of this Machine:

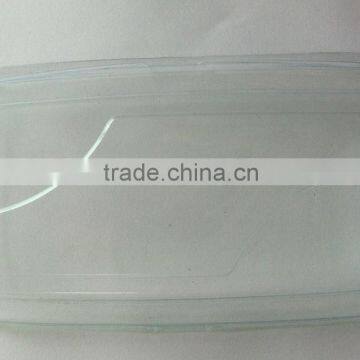

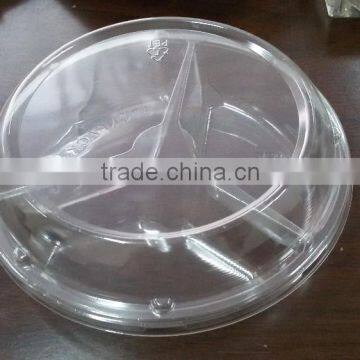

Samples:
