Ziplock Bag Film Roll Blowing Machine / Extruder
- NINGB/WENZHOU/SHANGHAI
- T/T Credit Card
You May Like
-
Rotary Die Head PE T-shirt Bag Garbage Bag Film Blowing Machine
-
High Speed Rotary Die Head PE Film Blowing Machine
-
High Speed PE Biodegradable Film Blowing Extrusion Machine
-
LDPE,HDPE Biodegradable Film Blowing Machine
-
Rotary Die Head LD/HD PE Film Blowing Machine
-
High Speed LDPE HDPE Biodegradable Film Blowing Extrusion Machine
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | MINGLI | Model Number | DC-55 | |
| Voltage | 380/220V | Power(W) | 2.2KW | |
| Dimension(L*W*H) | 6000*1600*4500mm | Weight | 1500KG | |
| Certification | CE | Warranty | One year and paid service for whole life | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
suitable for LDPE ziplock film extruding
RUIAN DONGCHEN PACKAGING MACHINERY NAMED RUIAN MINGLI FACTORY BEFORE.WE ARE FOCUS ON MACHINES' QUALITY AND CUSTOMERS' NEED.WELCOME FOR VISITING!

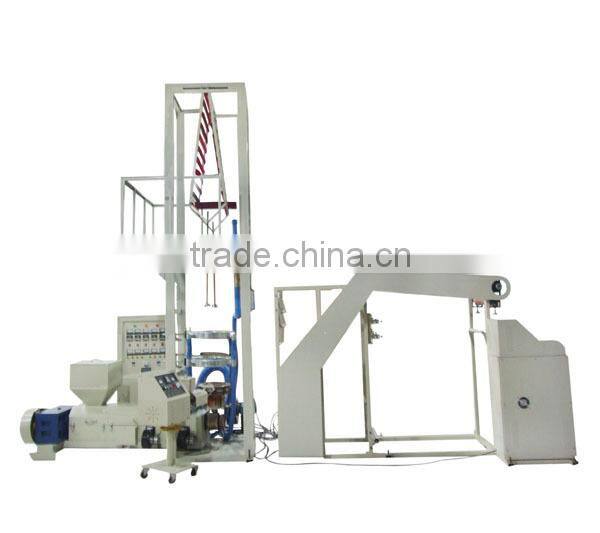

BC-55Film blowing machine
Characteristics&FunctionsBased on the Film Blowing Machine, this machine is designed creatively. With an embossing button automatic sealing zip at the very opening, a bag can be produced automatically freely. The main processor adopts frequency conversion speed governing, photoelectric control, air filling automatically, with a high content of science and technology and power applicability.
We use low density polyvinyl chloride LDPE as our raw material and our products can be used to package food, fruit, medicine, documents, industrial products, clothing, fabric and industrial products for civil use.
Main Parameters:
Model | BC-55 |
Raw Material | LDPE(density0.921) |
Width of Bag | 50-450mm |
Thickness of Bag | 0.03-0.10mm |
Diameter of Screw | Φ55 |
L/D | 28:1 |
Power of Main Motor | 5.5kw |
Power of Auxiliary Machine | 0.75kw |
Heater | 15kw |
Cooling | 2.2kw |
Power | 28kw |
Voltage | 50Hz-60Hz 380V |
Output | 5-30kg/h |
Dimension (L×W×H) | 6000×1600×4500mm |
Total Weight | 1.5T |
6 Die(make bag size from 6 to 40cm):Φ80Φ120Φ150Φ180Φ220Φ270
Accessories List:
1 | Screw | Φ55, 1:28 |
2 | Reducer | Model 146, made in Xiaoshan, Jiangsu Province, China |
3 | Rubber Roller | 550cm |
4 | Frequency Converter ( Main machine and Assistant Machine) | 2 sets, Huifeng brand, Made in Yantai, China |
5 | Infared Ray Automatic Air-Filling Controller | 1 |
6 | Winding | 1 |
7 | Fan | 1.1kw |
