Adhesive Label Roll to Small Rolls Slitting Machine
- Ningbo/Shanghai/wenzhou
- T/T Credit Card PayPal
You May Like
-
High Quality Automatic Flat Bedor Rotary Label Roll Die Cutting Machine
-
Self-adhesive Label Die Cutting Machine Option Punching Hot Stamping Laminating
-
Adhesive Label Punching Hot-stamping Laminating Die Cutting Machine
-
High Speed Blank Adhesive Lable Slitting Machine With Die Cutting Machine
-
Adhesive Label Roll Rotary Die Cutting Machine With Slitting Machine
-
Paper Cardboard Sheets Vertical Film Laminating and Cutting Machine
Product Details
| Condition | New | Type | Slitting Rewinder | |
| Computerized | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | MINGLI | Model Number | DC1300 | |
| Voltage | 380/220V | Power(W) | 25KW | |
| Dimension(L*W*H) | 1200*1900*1500MM | Weight | 1200KG | |
| Certification | CE | Warranty | 1 YEAR | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
SUITABLE FOR PAPER,LAMIANTED PAPER,PLASTIC FILM ROLL SLITTING AND REWINDINGAdhesive label roll slitting machine for paper,plastic film
Uses:
The machine is suitable for slitting BOPP, PET, CPP, CPE, PVC, PE aluminum foil, paper and other roll materials in the production process of the material according to the different needs trimming, slitting.
Performance and features:
This machine is a vertical slitting machine, the independent total control screen, the operation more flexible, convenient, automatic correction of unwinding, photoelectric eye is suitable for tracking the edge and color of transparent material, and rewinding tension magnetic powder brake control, winding adopts magnetic clutch control , has a the edge material air delivery or take-up device (select when ordering), automatic meter material moving length, winding pressure roller so that the membrane formation, double gas rose to close reel.
Technical parameters:
Model | FQ-320 | FQ-450 |
Max web width | 320mm | 450mm |
Max putting diameter | 500mm | 500mm |
Min .width | 18mm | 18mm |
Slitting precision | ±0.3mm | ±0.3mm |
Overall dimensions(L×W×H) | 1170×900×1280mm | 1170×1030×1280mm |
Slitting speed | 80m/min | 80m/min |
Machine weight | 400kg | 500kg |

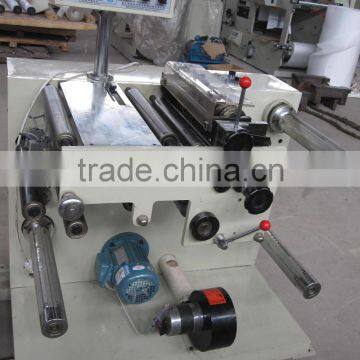

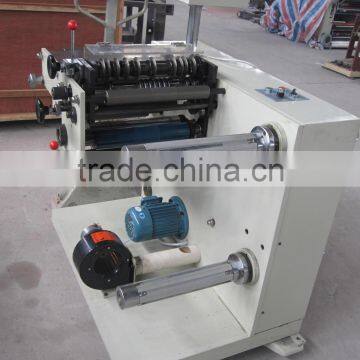

Machine display:
