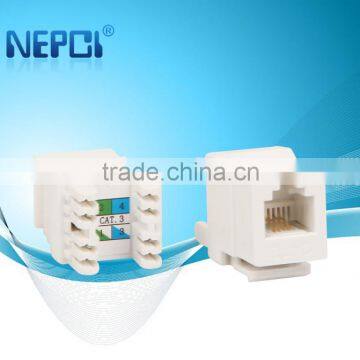

Cat.6A FTP Shielded RJ11 Keystone Jack modular jack

Details

§ PRODUCT FACTS

The Keystone Jack is designed to easily snap in and out of the wall outlet, patch panel and surface mount box. With special design insulation displacement connectors (IDC), the LAN wires can be terminated without punchdown tool for quick installation.



It comes with T568A/T568B color label and fully complies with ANSI/TIA-568-C.2-2009 specifications for Return loss, Insertion loss, NEXT loss, PSNEXT loss, ACRF, PSACRF, TCL, ELTCTL, Propagation delay, Propagation delay skew, PSANEXT loss, Average PSNEXT loss, PSAACRF, and Average PSAACRF up to 250MHz.



§ SPECIFICATION

 1. Lead-free & RoHS compliant.

 2. Meet the ANSI/TIA-568-C.2, ISO/IEC 11801 2nd edition and CENELEC EN 50173-1 cabling

     requirements for Category 6 channel performance.

 3. Comply with requirements of ANSI/TIA–1096-A (FCC Part 68) and reliability requirements of

     IEC 60603-7 for RJ45 8-way connector.



cat6/cat5e keystone jack cheap price rj45 cat6 wall jack male utp rj45 keystone jack rj45

Specifications:

Meet TIA/EIA-568-A and TIA/EIA-568-B Category 6 requirements.

Meet TIA/EIA TSB-40

Meet ISO/IEC Generic Cabling Standard 11801

Meet CENELEC Generic Cabling Standard EN50173

Angle: 180 Degree

Termination: Krone- 110- DUAL Type

Electrical:

According to UL 1863

Current rating: 1.5 Amp Max.

Voltage rating: 150 Volts

Contact resistance: 20 m-ohm

Insulation Resistance: 500M-ohm

Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min

Materials:

Housing: PC UL94V-0

IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.

PCB: FR4 1.6mm(0.04") thickness, 2 layers

Contact: PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 U" to 50 U" Gold plating on contact area.



§ APPLICATION

 • 1000BASE-T

 • 100BASE-Tx

 • 10BASE-T

 • 155M ATM

 • 4/16MB Token Ring

 • 100Mbps TP-PMD

 • ISDN

 • ADSL

 • Analog & Digital Voice (VoIP) / Video

 • Power over Ethernet (PoE)

 • Control Signal

Our Advantages

1.We can print your logo on products according to your requirements.

2. We can supply these products with spray painting.

3. We can manufacture these products on any color that you requested on the basis of your quantity.

4. We can manufacture your customized package.

5. Good quality with competitive price, different colors and sizes are available.

Packing

Leather box, 100pcs/carton .
Or as customized.
