Energy Saving Continuous Industrial Oil Quenching Machine of Mould Steel
- foshan
- T/T Credit Card PayPal
You May Like
-
Mesh Conveyor Belt Continuous Carburizing Heat Treatment Production Line
-
1200 Degree Continuous Mesh Belt Heat Treatment Tempering Oven
-
Continuous Mesh Belt Conveyor Gas Carburizing Furnace for Sale
-
Electric Continuous Carburizing Heat Treatment Furnace for Bolts Nuts
-
Continuous High Temperature Electric Steel Dies Hardening Furnace
-
Industrial Mesh Conveyor Belt Continuous Queching Heat Treatment Furnace for Sale
Product Details
| Condition | New | Type | Resistance Furnace | |
| Usage | Heat Treatment Furnace | Place of Origin | Guangdong, China | |
| Brand Name | RongDongSheng | Model Number | ZRHG100-9 | |
| Voltage | 380V | Power(W) | 100KW | |
| Dimension(L*W*H) | 4600x360x70mm | Weight | 6000kg | |
| Certification | ISO9001 | Warranty | One year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

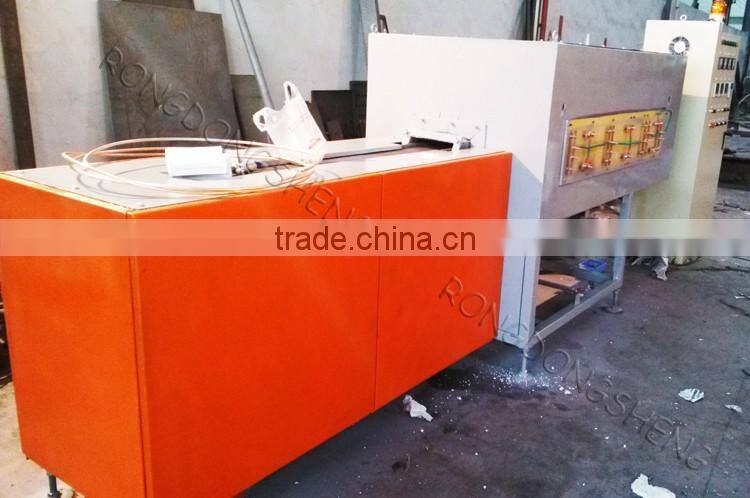

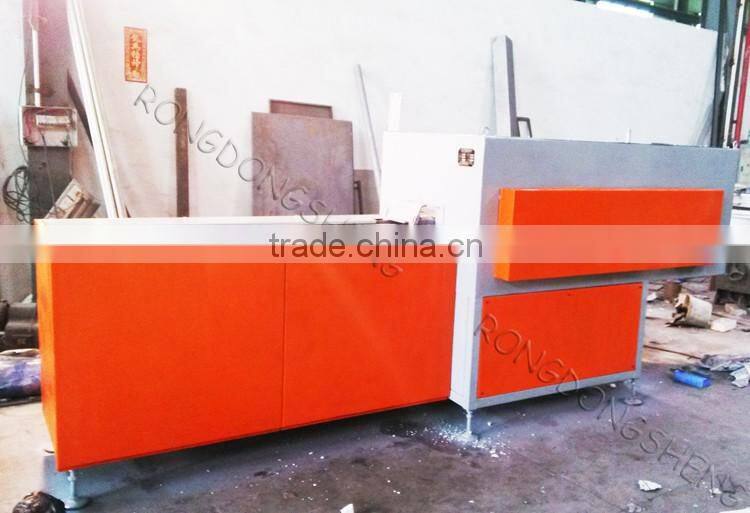

Energy saving continuous industrial oil quenching machine of mould steel
Introduction of Mesh Belt Furnace:
This mesh belt furnace is part of the production line which mainly for metal part carburizng and quenching.
Models and Specifications
| Model Type | Main Furnace Power (KW) | Complete Line Power | Rated Temperature (℃) | Temperature Control Zone | Carbon Control Zone | Effective Working Size LxWxH(mm) | Quenching Production Capacity (kg/h) | Carburizing Production Capacity (kg/h) |
| ZRHG60-4-9 | 60KW | 95KW | 950 | 3 | 1 | 2400×500×80 | 100 | 80 |
| ZRHG80-5-9 | 80KW | 135KW | 950 | 3 | 1 | 3200×500×80 | 180 | 140 |
| ZRHG100-5-9 | 100KW | 165KW | 950 | 3 | 1 | 4100×500×80 | 200 | 160 |
| ZRHG140-6-9 | 140KW | 240KW | 950 | 4 | 1 | 4400×600×80 | 250 | 200 |
| ZRHG170-5-9 | 170KW | 280KW | 950 | 5 | 2 | 6700×500×80 | 350 | 300 |
| ZRHG180-6-9 | 180KW | 290KW | 950 | 5 | 2 | 5800×600×80 | 380 | 320 |
| ZRHG200-6-9 | 200KW | 320KW | 950 | 5 | 2 | 6700×600×80 | 420 | 360 |
| ZRHG240-8-9 | 240KW | 380KW | 950 | 5 | 2 | 6700×800×80 | 500 | 420 |
Features of Mesh belt furnace:
- The mesh belt furnace adopted chain wheel to drive high temperature resistant stainless steel roller, to drag mesh belt move inside of furnace hearth circulatory and walk smoothly, reduce the loss of the mesh belt and increase the life of mesh belt; Reducing furnace heat loss, high thermal efficiency.
- Equipped with stir fan inside of furnace to ensure uniform temperature and protect (carburizing) atmosphere evenly dispersed, improve the carburizing speed, high output, workpiece quality stable.
- On the tail of furnace equipped with an exhaust fan, can timely discharge waste gas, improve workpiece surface gloss.
- On the bottom of the furnace body is equipped with slag removal mouth, convenient and clean up the clutter.
This furnace is continuous production line , can complete automatic feeding. Suitable for standard parts industry ( Spring, Screw, wrench, screw, pliers, sleeve, jack , etc.); automobile and motorcycle industry , hardware industry(clips, knife , nails, shoes iron core, nail clippers, chain , hook locks , etc.), The thin-layer carburizing of textile machinery industry(≤0.3mm), Carbonitriding conditioning light treatment such as quenching heat treatment
Foshan RongDongsheng Furnace Industry Co.,Ltd. which was founded in 1997 in Foshan City, Guang dong Province, China. Our factory area covering more than 10000 M2.Our company has passed ISO9001 international management system certification and European CE certificate. We are professional manufacturer of electric resistance heat treatment furnace with 18 years experiences for producing furnace . Not only have rice experience to produce high quality machine , but also with strong technical team as basis.
