Electric Furnace Resistance Heater
US$ 5 - 98
/ Piece
1 Piece(Min. Order)
- FOSHAN
- T/T Credit Card
You May Like
-
Electric Resistance Furnace Wire Heating Element
-
High Temperature Stainless Steel Wire Mesh Belt Conveyor for Furnace
-
314 310 304 321 316L Stainless Steel Conveyor Belt Price
-
Wire Mesh Conveyor Belt for Machine
-
Electric Furnace Stainless Steel Chain Conveyor Belt Mesh Belt
-
Industrial Mesh Conveyor Belt Manufacturer for Furnace
Product Details
| Condition | New | Type | Other | |
| Power Source | Electric | Place of Origin | Guangdong, China | |
| Model Number | Customized | Dimension(L*W*H) | Cutomer's Request | |
| Weight | Final Dimension | Voltage | 380V | |
| Power(W) | Customer | Certification | ISO9001 | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

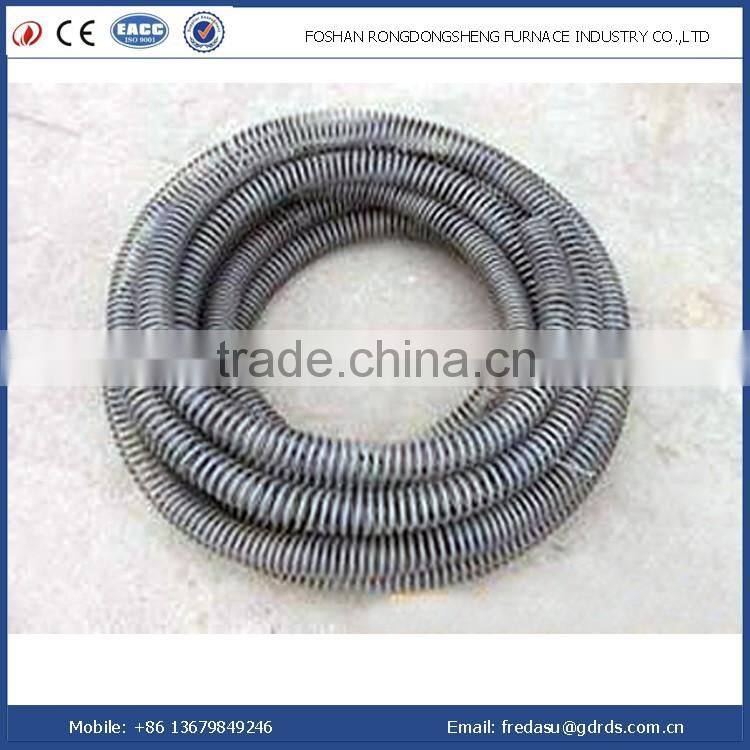

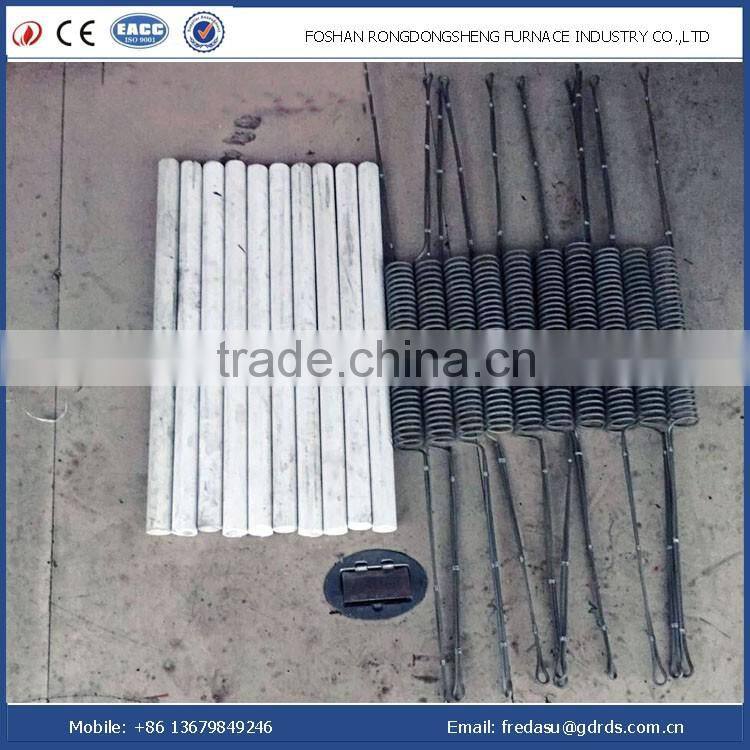

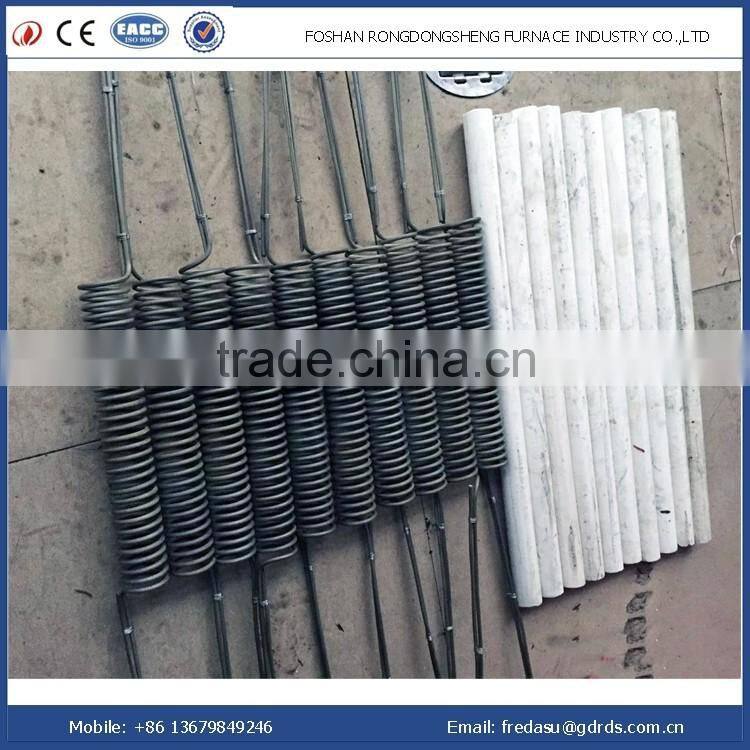

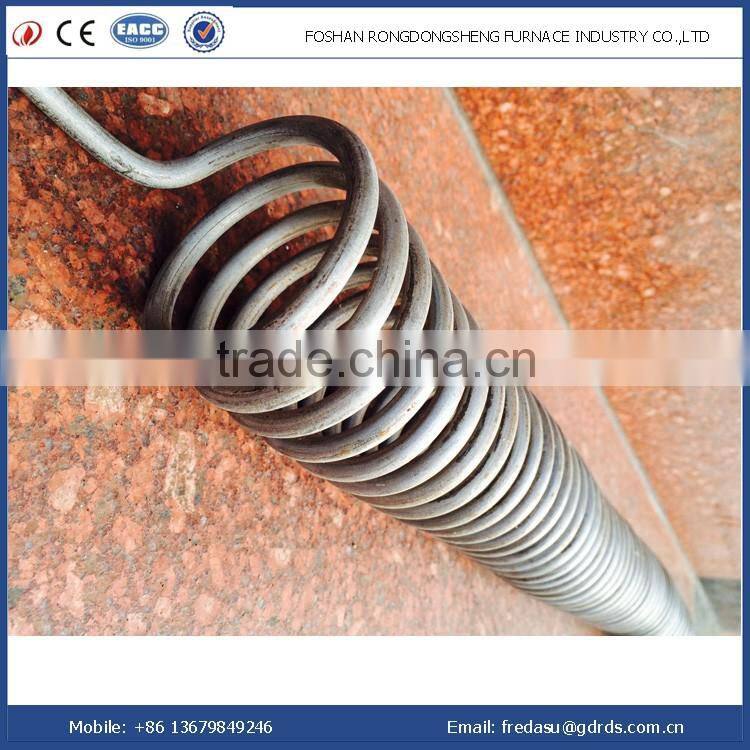

Electric furnace resistance heater
Apply the furnace type: Main used for electric muffle furnace heating . Such as , Muffle mesh belt heat treatment line ,continuous annealingfurnace , continuous tempering furnace,Continuous aging furnace, conveyor belt heat treatment furnace, Pit type furnace, chamber type furnace, trolley type furnace and so on .
Model and Parameters
| Model | 1Cr13Al4 | 0Cr25Al5 | 0Cr21Al6 | 0Cr23Al5 | 0Cr21Al4 | 0Gr21Al6Nb | 0Gr27Al7Mo2 | |
| Chemical Component | Cr | 12.0-15.0 | 23.0-26.0 | 19.0-22.0 | 20.5-23.5 | 18.0-21.0 | 21.0-23.0 | 26.5-27.8 |
| Al | 4.0-6.0 | 4.5-6.5 | 5.0-7.0 | 4.2-6.3 | 3.0-4.2 | 5.0-7.0 | 6.0-7.0 | |
| Fe | Rest | Rest | Rest | Rest | Rest | Rest | Rest | |
| Other | Nb0.5 | Mo1.8-2.2 | ||||||
| Max. Temperature | (℃) | 950 | 1250 | 1250 | 1250 | 1100 | 1350 | 1450 |
| Electrical resistivity 20℃ | (u.m) | 1.25 | 1.42 | 1.42 | 1.35 | 1.23 | 1.45 | 1.53 |
| Density | (g/cm3) | 7.4 | 7.1 | 7.16 | 7.25 | 7.35 | 7.1 | 7.1 |
| Melting point | (℃) | 1450 | 1500 | 1500 | 1500 | 1500 | 1510 | 1520 |
| Tensile Strength | (N/mm2) | 630-780 | 630-780 | 630-780 | 630-780 | 600-700 | 650-800 | 680-830 |
| Ductility | ( % ) | >16 | >12 | >12 | >12 | >12 | >12 | >10 |
| Percentage reduction of area | ( % ) | 65-75 | 65-75 | 65-75 | 65-75 | 65-75 | 65-75 | 65-75 |
| Hardness | (H.B.) | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 |
| Magnetism | / | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Magnetism | / | Magnetism | Magnetism | Magnetism | Magnetism | Magnetism | Magnetism | Magnetism |
