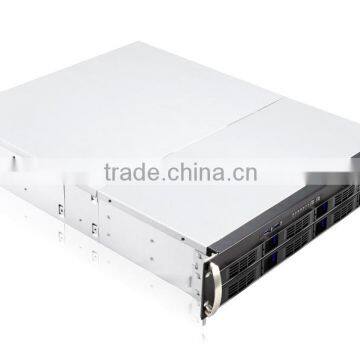

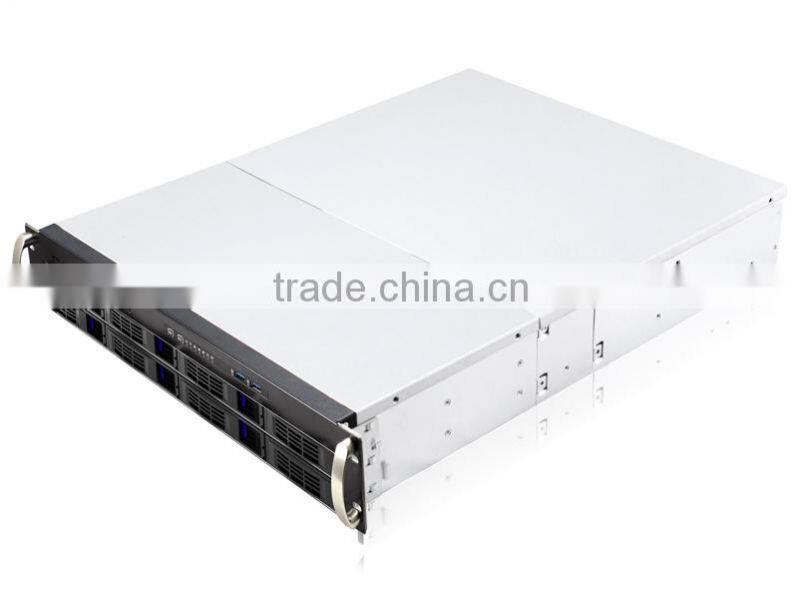

2u Storage Server Rack Case 550mm Length
- Shenzhen/HK
- T/T L/C D/P D/A
You May Like
Product Details
| Products Status | Stock | Application | Server | |
| Type | Rack | Form Factor | ATX | |
| Material | Steel, Other, Steel, SGCC | Style | With Fan | |
| Front Ports | USB | Brand Name | EDNSE | |
| Model Number | ED208H55-T3 | Place of Origin | Guangdong, China |
Product Description

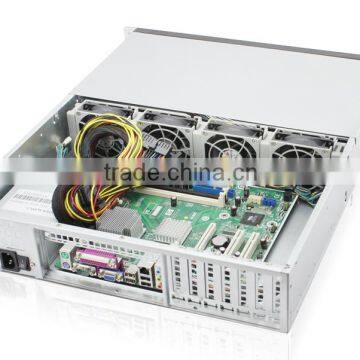

EDNSE 2016 NEW ED208H55-T3 storage server rack case:
Application:
Enterprise Storage Server: CCTV Surveillance DVR
Near-line Storage Server: Medical I maging
Virtual Tape Library: Digital Content Delivery
Database Server

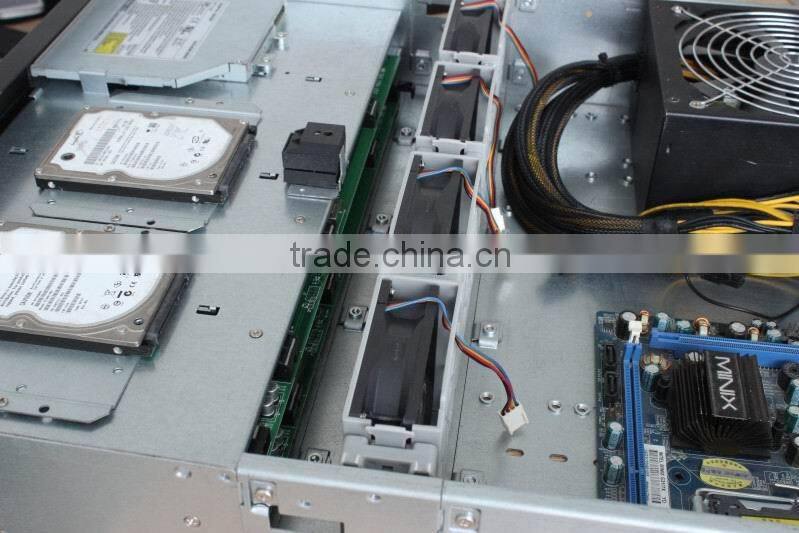

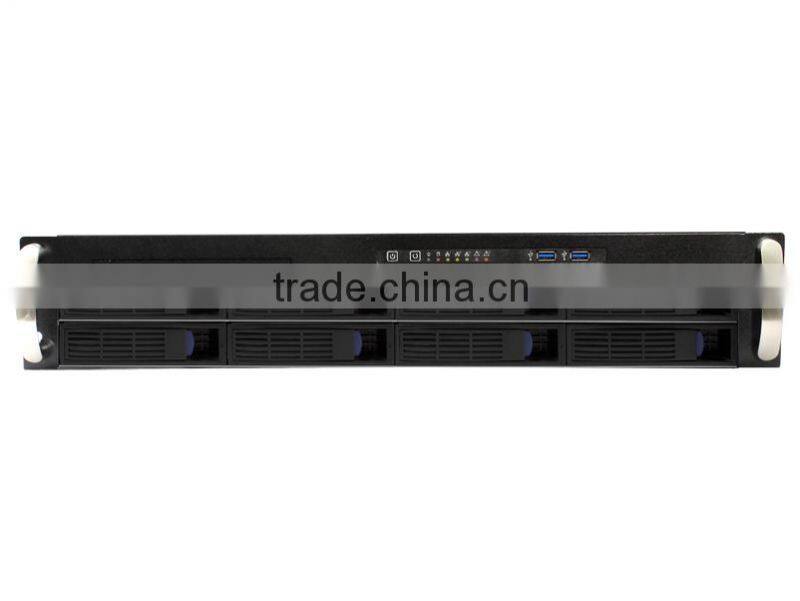

Forepart:
1 . Support 8X 3. 5" HDDs,2X2. 5" HDD
2. Support Slim DVD- ROM
3. Support sata/sas(minisas),HDD backplane
4 . Power on / off, System reset,hard disk and network LEDs ,Two USB 3. 0

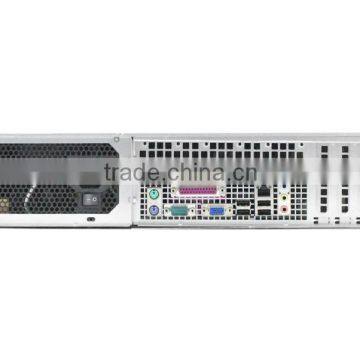

Rear Window:
Protective effect, power,Windows, window board,Expansion slot window.
| Ordel Code | ED208H55 | ||
| Description | 2U550mm ,depth, Hot-swap8x3. 5"HDD,2x2. 5"HDD | ||
| Generality | Metal Material | Metal Thickness | Metal Material Type |
| SGCC | 1 . 2mm | ABS | |
| M/B Form Factor | (1 2"x1 3"), (1 1 "x1 0. 5"), (9. 6"x9. 6"), (7"x6. 8") | ||
| Processor | DP Xeon(I ntel), DP Opteron(AMD), Core(I ntel) | ||
| Support Backplane | Sata 2/Sas or mini sas | ||
| Chassis Dimension | D550XW430XH88(mm), D21 . 7"XW1 6. 9"XH3. 5"(inch) | ||
| DriveBay | 3. 5"HDD | 2. 5"HDD | CD- ROM |
| 8 | 2 | 1 | |
| Power Supply | Standard ATX power/Standard 2U power / Redundant 1 +1 power | ||
| Expansion Slots | FF | ||
| 4/6 | |||
| System Cooling (Shockproof) | Middle | Rear | |
| 4 x 8025 mm (H ot-swap) | 2 x 8025 mm | ||
| Rear Window | Standard | ||
| Front Control | Front Control | Indicator | Ports |
| Power on/of System Resetf Alarm Rese | Power LED (x1 )HDD,Activity LED (x1 ) LAN Activity LED (x4) | USB2. 0(X1 ) USB3. 0(X1 ) VGA(option) | |
| Shipping Information | Net Weight(Chassis Only) | Gross Weight | |
| 9. 7kg | 1 1 . 5kg | ||
| Cubit Feet | 0. 1 02CMB | ||
| Container Information | 20': 274pcs | 40': 607pcs | 40'H: 686pcs |
Purchase information:
Product Code | Dimension | M/B Size | Power Supply |
| ED208H65 | 650X430X88(mm) | (1 2 X1 3 ), (1 1 X 1 0. 5"), (9. 6"X9. 6") | Standard ATX power/Standard 2U power / Redundant 1 +1 power |
| ED208H48 | 480X430X88(mm) | (1 2"X1 3") (9. 6"X9. 6") | Standard ATX power |
Replacement parts:
| Part Name | Qty | Description | |
| Fan | FAN-8025 | 4 | 80X25mm easy-swap fan |

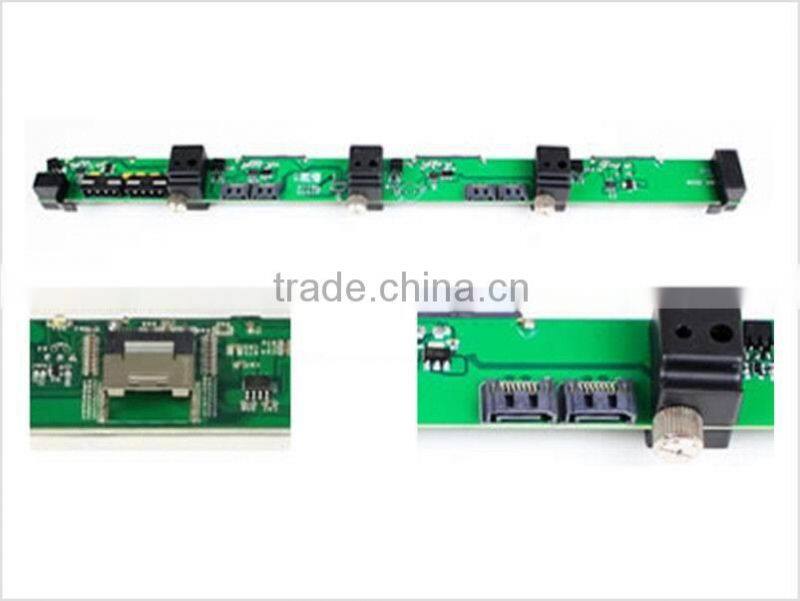

| Backplane | 4 Port-Mini SAS | 2 | 6GB&1 2GB MI NI SAS backplane |
4 SAS/SATA Ports | 2 | 6GB&1 2GB SAS/SATA backplane | |
| Rear Window | Rear-A2U | 1 | To standard 2U ATX power |
| Rear-A2U | 1 | To 2U redundant power |
Optional items:
| Part Name | Description |
| Power Supply | 2U-460W-A,2U Redundant 1 +1 550W-A, 2U Redundant 1 +1 850W-A 2U-460W-A , 2U Redundant 1+1 550W-A,2U redundant 1+1 850W-A |
| Sliding Rails | Steel Rails 20",24",26" |
| HDD Bracket | 3.5"to2*2.5" |
| Cable | 8087(minissas)-4SATA,8088(HD-minisas), 8088(HD minisas) to 8087(minisas) |
| Expansion Card | mini sas A04, M1006 |
| Raid Card | LSI MegaRAID Feature, Value Line,Entry Line—6Gb/sSATA+SAS |
| Riser Card | PCI-16X with cable,PCI-E |
| Cabinet Bracket | Bodychassis rear Bracket(Fixer) |
Package contain:
| Part Catagary | Qty | Description |
| art Catagary Qty Description Chassis | 1 | 2U chassis base with Fans |
| Backplane | 2 | 4 ports Minis-SAS backplane |
| Parts Pack | 1 | Screw Pack, Bracket |
| Fan | 4 | 80X25mm easy-swap fan |
| Cables | 1 | Display & swith cable |
New function:
| Part | Qty | Description |
| NIC LED | 4 | LAN NIC LED |
| USB3.0 | 2 | USB 3.0 |
| 2.5"HDD | 2 | System HDD |
| PWM Fans | 4 | PWM Fans |
DENESE (Dongguan) Computer Co., Limited was founded in 2005. Now we are located in the international electronics manufacturing city Dongguan, which has advanced information technology and facilitated transportation.
EDNSE is the strategy brand in DENESE Group.
As a manufacturer which specializes in server system equipment, we input series of system equipment to the field of servers for 8 years. Especially, the rack-mount chassis have reached the most advanced level in China.
Our company mainly engages in rack-mount chassis, e.g. 1U/2U/3U/4U/6U blade architectures, and ITX and tower chassis. We also operate server related products such as RAID cards, expansion cards, network storages, KVMs, cooling fans, power suppliers, riser cards, HDD support, HDD brackets, CPU coolers and so on. In addition, our company provides hot-swappable and non-hot-swappable solutions. We design, customize and produce products based on the needs of clients. ODM/OEM orders are welcome.
Our products are exported to more than 40 regions in the world, such as Southeast Asia, Europe, North America, the Middle East,
Our goal is to create a new future by science and technology. Innovation and renovation are our soul. We strive to create more human convenient and fast intelligent products. We focus on providing the best customer experience. Our products will set up a strong data information center for you. You will have a better future with our services.
