EDNSE 8 bays sevrer chassis for server hosting
USD $100 - $100
/ Set
10 Sets(Min.Order)
- shenzhen/HK
- T/T
You May Like
Product Details
| Products Status | Stock | Application | Server | |
| Type | Rack | Form Factor | ATX | |
| Material | Other, SGCC | Style | With Fan | |
| Front Ports | USB | Brand Name | EDNSE | |
| Model Number | ED208H65-T3 | Place of Origin | Guangdong, China |
Product Description

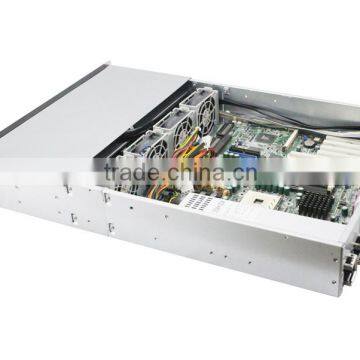

ED208H65-T3 2U Modular Server Chassis:
Application:
Database Server
Enterprise Storage Server
Near-line Storage Server
Virtual Tape Library
CCTV Surveillance DVR
Digital Content Delivery (DCD)
Medical Imaging
New Function:
| Part | Qty | Description |
| Indicator | 7 | POWER(×1), HDD(×1), LAN NIC(×3), ALARM(×2) |
| USB3.0 | 2 | USB 3.0 |
| PWM Fans | 4 | PWM Fans |
Order Information:
| Part Number | Description |
| ED208H-T65R5 | ED208H 65-T3 Server Case & Sliding Rail & ED2UR-550W 1+ 1 Redundant Power Supply |
| ED208H-T65S6 | ED208H 65-T3 Server Case & Sliding Rail & ED2U-600W 2U Standard Power Supply |
| ED208H-T65A5 | ED208H 65-T3 Server Case & Sliding Rail & EDP500W ATX Power Supply |
Product Description:
| Order Code | ED208H65-T3 |
| Description | 2U 650mm depth,H ot-swap 8x3.5" H DD,2x2.5" H DD,1xSlim-DVD |
| Generality | Metal Material: SGCC Metal Thickness: 1.2mm Metal Material Type: ABS |
| MB Form Factor | (12" x13" ),(12" x10.5" ),(12" x9.6" ),(9.6" x9.6" ),(6.7" x6.7" ) |
| Processor | DP Xeon(Intel),DP Opteron(AM D), Core(Intel) |
| Backplane | SATA 3 & SAS Hard Disk Supported |
| Chassis Dimension | D650XW430XH 88(mm) D25.6" XW16.9" XH 3.5" (inch) |
| Drive Bay | 3.5":8(H ot-swap) 2.5": 2 CD- ROM: 1×Slim DVD |
| Power Supply | Standard 1/2U Power supply, Redundant 1/2U 1+1 Power Supply, ATX Power Supply |
| Expansion Slots | 3(H orizontal) Or 7(Vertical) |
| System Cooling(Shockproof) | Middle: 4 x 8025 mm PWM Fans |
| Rear Window | Standard |
| Front Panel | Front Control: Power On/Off,System Reset |
| Indicator : Power LED, HDD Activity LED, LAN Activity LED, Failure LED | |
| Ports: USB3.0(X2) | |
| Weight | Net Weight : 10.32kg Gross Weight : 11.92kg |
| CBM Cubic Metre | 0.07140075 |
| Container Information | 20':392pcs 40':784pcs 40'H :952pcs |
| Carton Size | 83(L)x55.5(W)x15.5(H )cm |
Package Contain:
| Part Category | Qty | Description |
| Chassis | 1 | 2U Chassis |
| Backplane | 2 | M ini-SAS Backplane |
| Parts Pack | 1 | Screw Pack,Bracket |
| Fan | 4 | 80X25mm Easy-swap Fan |
| Cables | 1 | Display & Switch & USB Cable |
Pictures on display:

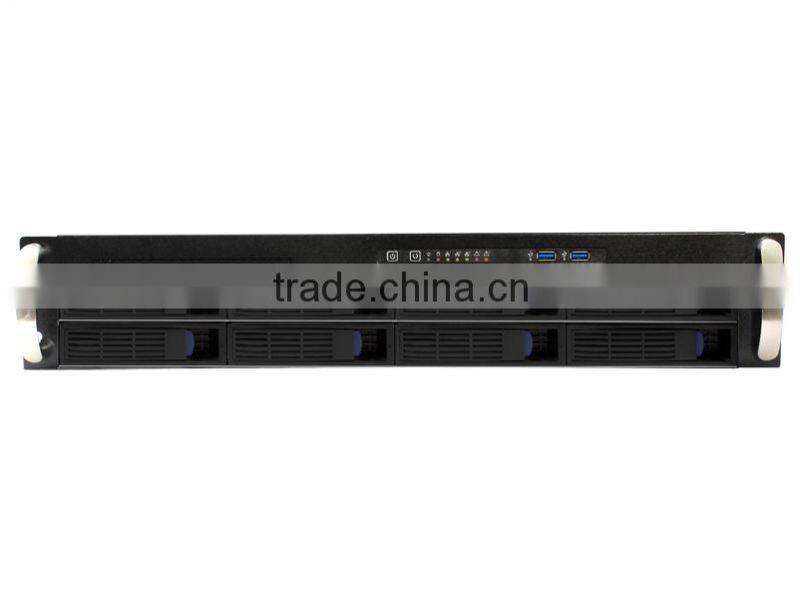

Front:

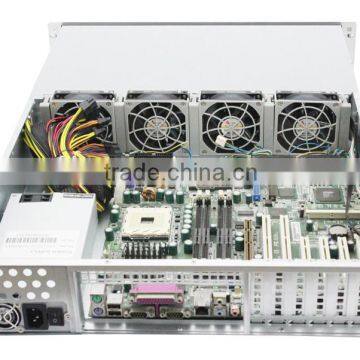

Side:

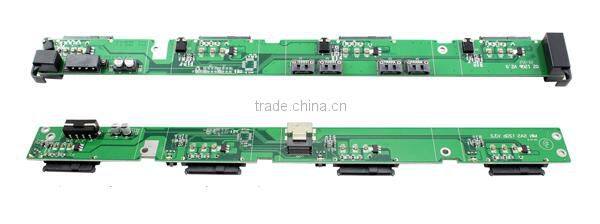

Backpanel(sata or minisas ):

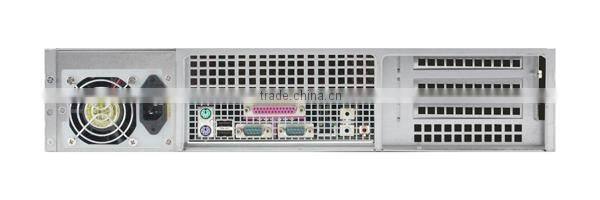

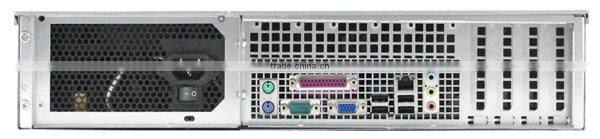

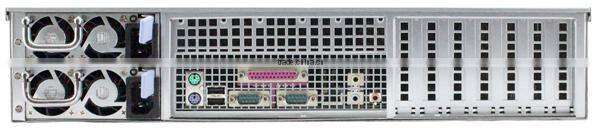

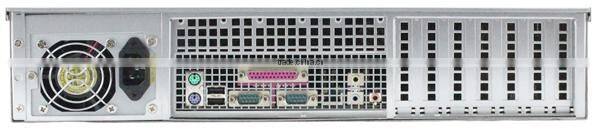

Rear window(4 type to choose):
