Home > Products > Oil Filling Machine > Automatic Liquid Oil Filling and Capping Machine
Automatic Liquid Oil Filling and Capping Machine
- shanghai port
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | HY | |
| Model Number | TNG8010R |
Product Description
Specifications
1.Filling heads: 2-8PCs2.Capacity:200-2200BPH
3.Filling Volume:0.1-5L
4.CE,UL,ISO,SGS

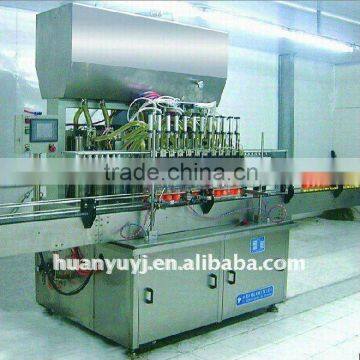

TNG8010R Series Volumetric Filling Machine
This machine adopts linear filling, electromechanical integration control, is of superior performance, whose modeling complies with international mechanical design concept. It is mainly applicable to a variety of viscous, non-viscous, corrosive and non-corrosive liquids, and widely used in the quantitative small packages of vegetable oil, lubricants and chemical liquids, and routine chemical industries, etc.
Technical Parameters
Name of parameter | Unit | TNG8010R-type |
number | Pic | 10 |
filling volume | Ml | 3000 |
production capacity | Barrel /h | 1800-2500 |
quantitative error | % | ≤0.5% |
Source voltage | V | three-phase four-wire system AC220V 380V ±10% |
Consumed power | KW | 1.5 |
gas supply pressure | MPa | 0.55-0.8MPa |
Air consumption | m3/min | 1.2 |
External dimension | Mm | 2000*1300*2800 |
