Home > Products > Carbonated Drink Filling Line > Soda Water Filling machine

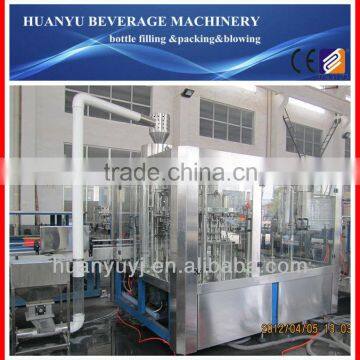

Soda Water Filling machine
- 30 Set / Sets per Month
- Shanghai Port for soda water filling machine
- T/T D/P D/A
You May Like
Product Details
| Condition | New | Application | Food, Beverage | |
| Packaging Type | Bottles, Pouch | Packaging Material | Plastic, Other, Plastic, wooden crate | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Power | 2.2kw | Place of Origin | Jiangsu, China | |
| Brand Name | HUANYU | Model Number | DCGF | |
| Dimension(L*W*H) | 2600x1920x2550 | Weight | 3650kg | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Soda water filling machine1.capacity:2000-24000b/h
2.bottle:PET
3.PLC control
4.washing filling capping 3-in-1
soda water filling machine:
Usage of soda water filling machine:
The automatic filling machine is used in production of polyester bottle-packing carbonated drink, such as Coca cola, Pepsi-cola, Sprite drink etc.
Characteristics of soda water filling machine:
It can carry out washing bottle, filling and capping in one machine. The whole machine designing is reasonable. The appearance is beautiful and the maintenance is convenient. It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and more easy. The main machine adopts advanced PLC control technology. The key electric elements are adopt international famous products.
Main technical parameter of soda water filling machine:
| Model | DCGF16-12-6 | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-10 | |
| Production capacity(500ml b/h) | 2000-3000 | 3000-4000 | 4000-6000 | 6000-8000 | |
| Filling precision | <5mm(liquid level) | ||||
| Filling pressure (MPa) | <0.4 | ||||
| Gathers the fat bottle specification(mm) | bottle diameter:50-100 height:150-310mm | ||||
| suitable cap shape | Plastic screw cap | ||||
| Total power(kw) | 1.2 | 3.75 | 5.6 | 6.2 | |
| Weight(kg) | 2500 | 3500 | 4500 | 6000 | |
| Overall dimensions(mm) | 2250*1700*2300 | 2400*1960*2300 | 3010*2180*2400 | 4000*2250*2500 | |
mixing machine
chiller
water treatment system
Zhangjiagang Huanyu Beverage Machinery Co.,Ltd is a professional Manufacturer of Beverage Filling Machine in China.
Main produce: Bottled Water filling machine,Juice/Tea drink filling machine,Carbonated drinks/Beer Filling machine,Pop can Filling machine,
Water treatment equipment, Bottle Blowing machine, Bottle Unscrambler ,Labeling&Packing machine etc.
Further details .Please feel free to contact me.
