2014 forged brass underfloor heating way manifolds system
US$ 33.65 - 93.5
/ Set
10 Sets(Min. Order)
- FOB Shanghai or Ningbo
- Credit Card
You May Like
-
menred floor water heating manifold for underfloor heating system
-
stainless steel manifolds for underfloor heating
-
water-mixing center with floor heating manifold
-
Stainless Steel Intelligent Manifold For Floor Heating, High Quality Stainless Exhaust Manifold
-
2014 menred water manifold For Under Floor Heating System
-
electric actuator+ 6-way brass manifold
Product Details
| Place of Origin | Zhejiang, China | Brand Name | menred | |
| Model Number | A7.... | Type | HVAC Systems |
Product Description
Specifications
1. way manifold2. With built-in balancing valves & shut-off valve
3. Axial static seal technology
way manifold

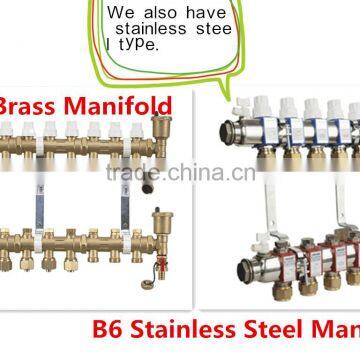

2014 menred forged brass underfloor heating manifolds system
high quality brass way Manifold
Brass water manifold
Introduction
The distribution manifolds are designed for low-temperature hot water radiant panel heating systems.
The supply distribution manifold equipped with built-in balancing valves, and the return distribution manifold equipped with built-in shut-off valves suitable for electro-thermal actuator which is controlled by room thermostat to meet your individual requirement for comfortable room temperature
Features
Hot-stamped brass body
Nature color, surface anticorrosion processing
Outlets in composite with the main body to exterminate the leakage possibility of manifolds
Axial static seal technology
No O-ring for pipe fittings
Freestyle combination for multi-loops
Technical data
Connection : 1'' or 1-1/4''
Operating pressure : PN10
Medium temperature : +1'C....+110'C
Medium : water (Max. percentage of glycol is 60%)
Material : main pipe - brass
stem - stainless steel
O-ring - EPDM
Operating pressure : PN10
Medium temperature : +1'C....+110'C
Medium : water (Max. percentage of glycol is 60%)
Material : main pipe - brass
stem - stainless steel
O-ring - EPDM
Selection table
Model No. | Description | No. | Outlets | Composition |
702 | 1''or 1-1/4'' | 2-loop | 3/4'M | 702*1 |
703 | 1'' or 1-1/4'' | 3-loop | 3/4'M | 703*1 |
704 | 1'' or 1-1/4'' | 4-loop | 3/4'M | 704*1 |
705 | 1'' or 1-1/4'' | 5-loop | 3/4'M | 702*1+703*1 |
706 | 1'' or 1-1/4'' | 6-loop | 3/4'M | 703*2 |
707 | 1'' or 1-1/4'' | 7-loop | 3/4'M | 703*1+704*1 |
708 | 1'' or 1-1/4'' | 8-loop | 3/4'M | 704*2 |
709 | 1'' or 1-1/4'' | 9-loop | 3/4'M | 703*3 |
710 | 1'' or 1-1/4'' | 10-loop | 3/4'M | 703*2+704*1 |
711 | 1'' or 1-1/4'' | 11-loop | 3/4'M | 703*1+704*2 |
712 | 1'' or 1-1/4'' | 12-loop | 3/4'M | 704*3 |
................................................................................................... | ||||
A7...Manifold Standard Access List:
