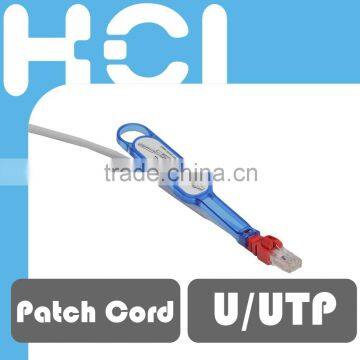

RJ45 8P8C Cat 6 Ultra High Density Patch Cord with Pull Back Tool

RJ45 8P8C Cat 6 Ultra High Density Patch Cord with Pull Back Tool

UHD Series

§ PRODUCT FACT

Convenient to pull the patch cord out instead of press the latch when be used at the Ultra High Density environment. Efficiently move it out for managing or maintaining system is a feature of a Patented UHD Patch Cord.

§ FEATURE

-Suitable for Ultra High-Density environment

 ex:1U48P Patch Panel, Rack System...

-Meets Cat 6(A) component specifications TIA-568-C.2

-Supports 1000BASE-T & 10GBASE-T Ethernet

-50u” gold plated Modular Plugs

-Multiple colors available for easy identification

-100% factory tested and certified

-Patented

§ SPECIFICATION

-Lead-free & RoHS compliant.

-Meet the ANSI/TIA-568-C.2, ISO/IEC 11801 2nd edition and CENELEC EN 50173-1 standard.

-Comply with requirements of ANSI/TIA–1096-A (FCC P art 68) and Level A reliability  requirements of IEC 60603-7 for RJ45 8-way connector.

§ ELECTRICAL

-Voltage proof: 1000V DC or AC peak, contact-to-contact.

-Current-carrying capacity: 0.75Amps minimum

-Contact resistance: 20mΩ maximum

-Insulation resistance: 500MΩ minimum at 100V DC

-Input to output resistance: 200mΩ maximum

-DC resistance: 0.2ohm maximum

§ MECHANICAL

-Mechanical operation: 750 cycles minimum for insertion / withdrawal with modular jack

-Effectiveness of connector coupling devices: 50N (11lbf) for 60s ± 5s.

-Insertion and withdrawal forces: 30N maximum

§ ENVIRONMENTAL

Temperature: -10℃~ 60℃

Humidity: 10% ~ 90%RH
