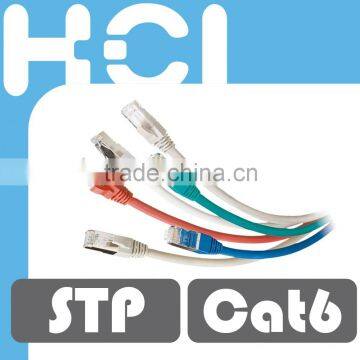

RJ45 8P8C Cat6 F/UTP Stranded Round Molded Patch Cord

RJ45 8P8C Cat6 F/UTP Stranded Round Molded Patch Cord

FUM Series

§ PRODUCT FACT

A patch cord (patch lead or patch cable) is a length of electrical (or optical) cable with a plug on one or both ends, typically refer only to short cords used with patch panels. Devices of different types (i.e.: a switch connected to a computer or a switch to a router) are connected with patch cords. Patch cords are usually produced in many different colors so as to be easily distinguishable, and are relatively short, perhaps no longer than 3 meters.

Patch cords can be as short as 0.1 meters, to connect stacked components, or as long as 20 meters or more in length for snake cables. As length increases, the cables are usually thicker and/or made with more shielding, to prevent signal loss(attenuation) and the introduction of unwanted radio frequencies and hum (electromagnetic interference or EMI, also called radio frequency interference or RFI).

Color Option: Black, Blue, Green, Grey, Orange, Red, White and Yellow.

Note: Custom configurations (i.e.: Length, LSZH, Solid, Pigtail, Cross-Over) available upon request.

§ FEATURE

-Patented

-100% factory tested and certified

-Suitable for Ultra High-Density environment

ex. 1U48P Patch Panel, Rack System...

-Multiple colors available for easy identification

-50u” gold plated Modular Plugs

-Supports 1000BASE-T & 10GBASE-T Ethernet

-Meets Cat 6(A) component specifications TIA-568-C.2

§ SPECIFICATION

-Lead-free & RoHS compliant.

-Meet the ANSI/TIA-568-C.2, ISO/IEC 11801 2nd edition and CENELEC EN 50173-1 standard.

-Comply with requirements of ANSI/TIA–1096-A (FCC Part 68) and Level A reliability requirements of IEC 60603-7 for RJ45 8-way connector.

§ ELECTRICAL

-Voltage proof: 1000V DC or AC peak, contact-to-contact.

-Current-carrying capacity: 0.75Amps minimum

-Contact resistance: 20mΩ maximum

-Insulation resistance: 500MΩ minimum at 100V DC

-Input to output resistance: 200mΩ maximum

-DC resistance: 0.2ohm maximum

§ MECHANICAL

-Mechanical operation: 750 cycles minimum for insertion / withdrawal with modular jack

-Effectiveness of connector coupling devices: 50N (11lbf) for 60s ± 5s.

-Insertion and withdrawal forces: 30N maximum

§ ENVIRONMENTAL

Temperature: -10℃~ 60℃

Humidity: 10% ~ 90%RH
