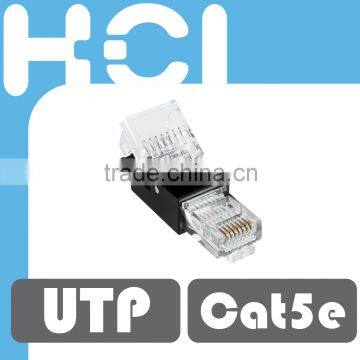

Taiwan Supplier RJ45 8P8C For Cat5e Unshielded UTP Toolless Modular Plug

§ PRODUCT FACT

The 8P8C (8 position 8 contact, also backronymed as 8 position 8 conductor; often called RJ45 ) plug is the male type of modular connector commonly used for Ethernet over twisted-pair applications, where the plug on each end terminated using the T568A or T568B pin/pair assignments that are defined in ANSI/TIA-568-C.2 standard.

These connectors are commonly used in computer networking and other telephone applications involving unshielded twisted-pair (UTP), shielded twisted-pair (STP), and multiconductor flat cable. Most network communications today are carried over Category 5e, Category 6 or Category 6A cable with an 8P8C modular plug crimped on each end.

§ FEATURE

-Accordning to the ANSI/TIA-568-C.2,

-ISO/IEC 11801 2nd and EN 50173-1 specification.

-IDC can accept 24-26 AWG solid and stranded UTP cables.

-Support T568A/T568B wiring & easy installation.

§ SPECIFICATION

-Lead-free & RoHS compliant, certified by TUV.

-Meet the ANSI/TIA-568-C.2, ISO/IEC 2^ndedition and CENELEC EN 50173-1 cabling

 requirements of IEC 60603-7 for RJ45 8-way connector.

§ ELECTRICAL

-Voltage proof: 1000V DC or AC peek, contact-to-contact.

-Current-carrying capacity: 0.75 Amps minimum

-Contact resistance: 20MΩ maximum

-Insulation resistance: 500MΩ minimum at 10V DC or 100 MΩ minimum at 500V DC

-Input to output resistance: 200MΩ maximum

-DC resistance: 0.2 ohm maximum

§ MECHANICAL

-Mechanical operation: 750 cycles minimum

-Effectiveness of connector coupling devices: 50 N (11 lbf) for 60s ± 5s

§ ENVIRONMENTAL

-Temperature: -10℃~60℃

-Humidity: 10%~90%RH

§ ORDERING INFORMATION
