Self-propelled Thermoplastic Road Marking Machine

FOB Price

USD $6,600 - $6,800 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China		Brand Name	DAYU
Model Number	DY-SPT-I/II

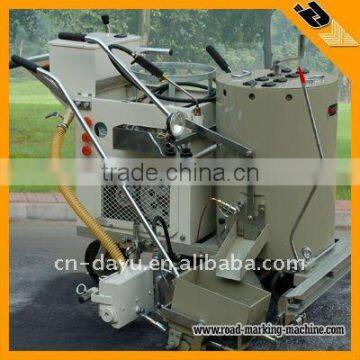

Self-propelled Thermoplastic Road Marking Machine
1. Honda Gasoline
2. Thermoplastic Paint
3. Self propelled type
4. DAYU

Self-propelled Thermoplastic Road Marking Machine

1. Honda Gasoline
2. Thermoplastic Paint
3. Self propelled type
4. DAYU

DY-SPTC-I/II Self-Propelled Thermoplastic Convex Marking Machine

Description of DY-SPTC-I/II Road Marking Machine

DY-SPTC-I/II Self-Propelled Thermoplastic Convex Marking Machine.The regular trapezoid convex markings shape,

convex height and convex spacing can meet different needs of various road. It is completely conform to the

international vibrating and reflective standards, and with stronger deformation resistance,

abrasion resistance and shock resistance.

Main Future of DY-SPTC-I/II Road Marking Machine

1. Ideal machine for medium-sized and small marking jobs in urban areas and highway.

2. Moving priority design can be efficiently control machine running to enable the safety in case of emergency.

3. The screeding structure makes the markings straight and beautiful.

I: DY-SPTC-I Small Thermoplastic Road Marking Machine: Adopts knob controller.

II: DY-SPTC-II Small Thermoplastic Road Marking Machine: Adopts digital controller.

Technical Parameter of DY-SPTC-I/II Road Marking Machine

No.	Item	Spec.
1	Engine	Honda Gasoline Engine/ Diesel Engine/ Liquefied Gas Engine (Optional)
2	Driving System	HTS variable speed transmission system with automatic brake device
3	Heating Mode	Infrared gas heater or injecting diesel heater (alternative)
4	Marking Mode	Screeding with marking shoe
5	Marking Shoe=Line Width	100/150/200/300mm (Optional)
6	Standard Configuration	150mm Marking shoe (High temperature, oxidation and deformation resistance)
7	Paint Tank	65L (Erect type stirring device, Heating and keeping the temperature automatically)
8	Glass Beads Bin	14L (The automatic quantitative dispenser synchronous with the paint screeding system)
9	Rear Wheel Directional Device	Ensure the machine moving in straight line or turning freely in curved road
10	Electronic Control	Set up various standard line type and Adjust line type
11	Guide Rod	Hydraulic guide rod
12	Size and Weight	142010701120mm 248kg
