RY Series Diesel Oil Burner Asphalt Plant
- China Main Port
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Condition | New |
Product Description
Specifications
RY series Oil Burner1.oil burner;5.5-7kg/t
2.oil consumption: 300-1250kg/h
3.energy saving and economic

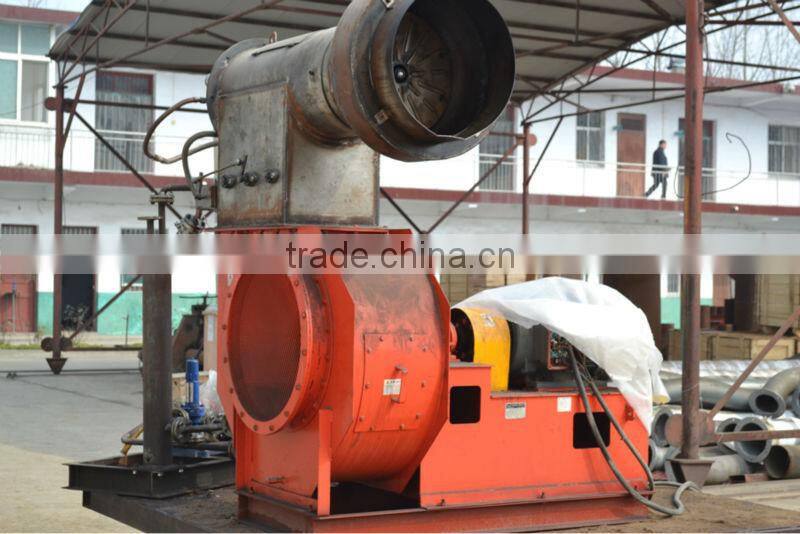

RY series diesel oil burner
in our website: /oil-burner.html
Brief Introduction
RY series diesel / heavy oil dual purpose burner can use both diesel and heavy oil, it is widely used on asphalt plant.
Product Features
1. Oil circuit system is separated with the burner body, safe and convenient and flexible.
2. The working pressure of the oil pump is 12 bar, long service life, oil selection is wide.
3. Secondary gas ignition, high reliability ignition.
4. Adopt Honeywell servo mechanism and temperature controller, high reliability, high precision temperature controlling.
5. Unique purging piping, effectively prevent the oil plug.
6. Combustor adopts double-deck structure, long service life, not easy deformation.
7. Simple structure, good performance, safe and reliable.
8. Operation and maintenance is simple, easy to master.
9. High combustion efficiency, save energy, economic, no pollution flue gas emissions, friendly to environment.
Technical parameters
General Parameters
| Model | RY-300CH | RY-450CH | RY-550CH | RY-750CH | RY-1000CH | RY-1250CH |
| Output power | 3540 kW | 5310 kW | 6490 kW | 8850 kW | 11800 kW | 14750 kW |
| Oil consumption | 300 kg/h | 450 kg/h | 550 kg/h | 750 kg/h | 1000 kg/h | 1250 kg/h |
| Air blower power | 15 kW | 18.5 kW | 22 kW | 30 kW | 45 kW | 55 kW |
| Oil pump power | 2.2 kW | 3 kW | 4 kW | 4 kW | 5.5 kW | 7.5 kW |
| Turndown ratio | 01:04 | 01:04 | 01:04 | 01:04 | 01:04 | 01:04 |
| Heater power | 3 kW | 4.5 kW | 4.5 kW | 6 kW | 7.5 kW | 9 kW |
| Matching asphalt plant output | 25-40 t/h | 50-65 t/h | 70-85 t/h | 90-105 t/h | 110-125 t/h | 140-170 t/h |
Note: oil pressure ≤0.3bar; oil viscosity ≤8°E ( 80°C); air pressure 4 ~ 6 bar; users need to place special order if elevation above 1000 meters; according to different pressure of the combustor, choose different air blower power.
Dimensions Parameters
| Model | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) |
| RY-300CH | 360 | 1060 | 750 | 750 | 290 | 1100 | 1140 | 610 |
| RY-450CH | 400 | 1208 | 750 | 800 | 290 | 1100 | 1140 | 660 |
| RY-550CH | 440 | 1330 | 900 | 900 | 400 | 1160 | 1350 | 710 |
| RY-750CH | 480 | 1370 | 900 | 900 | 460 | 1190 | 1400 | 740 |
| RY-1000CH | 540 | 1580 | 1000 | 1000 | 560 | 1350 | 1650 | 800 |
| RY-1250CH | 580 | 1600 | 1000 | 1100 | 570 | 1450 | 1650 | 900 |

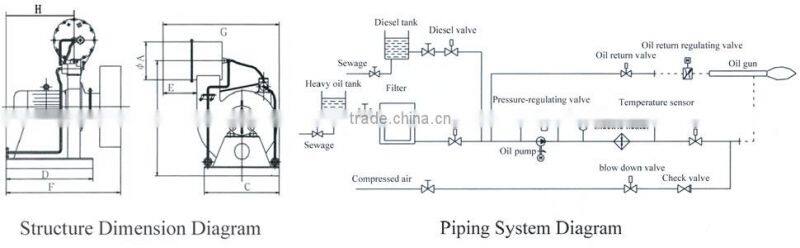

The diagram including Structure dimension diagram and piping system diagram.
