Asphalt Hot Mix Plant Manufacturer
- China Main Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | Dayu Asphalt Hot Mix Plant | Model Number | LB and DHB | |
| Voltage | adjustable | Power(W) | adjustable | |
| Dimension(L*W*H) | adjustable | Weight | 40-100t | |
| Certification | CE,Gost,ISO9001,ISO14001 | Warranty | 18 months after install the plant, 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Asphalt Hot Mix Plant Manufacturer
Zhengzhou Dayu Machinery Co.,Ltd is a professional construction machinery manufacturer for Asphalt Hot Mix Plant over 20 years.
Dayu Asphalt hot mix plant have three main groups;
Batch Asphalt hot mix Plant Manufacturer
Drum Asphalt hot mix Plant Manufacturer

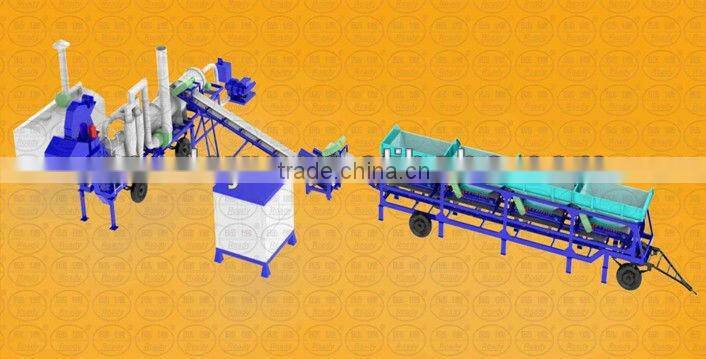

Mobile Asphalt hot mix Plant Manufacturer

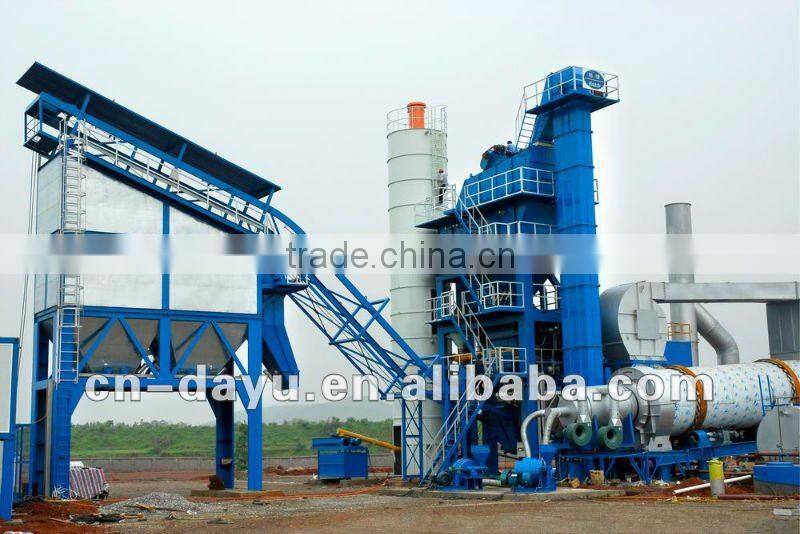

Batch Asphalt hot mix Plant mainly including burning system, vibrating screen system, cold aggregate supply system, electric control system and drying drum.
Batch Asphalt hot mix Plant is one of the most popular products of Dayu for the high efficiency and excellent quality
Main Parameters of Batch Asphalt hot mix Plant
| Type | Plant Capacity (standard conditions): | Mixer Capacity: | Consumption (standard conditions): | Measurement accuracy | |
| Fuel Oil | Fuel Coal | ||||
| LB500 | 40 t/h | 500 kg | 5.5-7 kg/t | 10kg/t | Aggregate: ±0.5% Powder: ±0.5% Asphalt: ±0.25% |
| LB700 | 56 t/h | 700 kg | 5.5-7 kg/t | 10kg/t | |
| LB800 | 64 t/h | 800 kg | 5.5-7 kg/t | 10kg/t | |
| LB1000 | 80 t/h | 1000 kg | 5.5-7 kg/t | 10kg/t | |
| LB1100 | 90 t/h | 1100 kg | 5.5-7 kg/t | 10kg/t | |
| LB1200 | 100 t/h | 1200 kg | 5.5-7 kg/t | 10kg/t | |
| LB1250 | 105 t/h | 1250 kg | 5.5-7 kg/t | 10kg/t | |
| LB1500 | 120 t/h | 1500 kg | 5.5-7 kg/t | 10kg/t | |
| LB1600 | 130 t/h | 1600 kg | 5.5-7 kg/t | 10kg/t | |
| LB2000 | 160 t/h | 2000 kg | 5.5-7 kg/t | 10kg/t | |
| LB2200 | 175 t/h | 2200 kg | 5.5-7 kg/t | 10kg/t | |
| LB2500 | 200 t/h | 2500 kg | 5.5-7 kg/t | 10kg/t | |
| LB3000 | 240 t/h | 3000 kg | 5.5-7 kg/t | 10kg/t | |
The Components of Drum Asphalt hot mix Plant including Four Bin Feeder, Vibrating Screen System, Slinger Conveyor, Dryer Drum, Bitumen Tanks, Multicylone Exhaust, Load Out Conveyor, Mineral Filler, Control Cabin and Ldo Tank, which can working with good quality and high efficiency.
Main Parameters of Drum Asphalt hot mix Plant
| Model | Productivity(t/h) | Weighing Accuracy | Total Power(kW) | Coal Consumption(kg/t) | |
| Aggregate | Asphalt | ||||
| DHB-20 | 20 | ±1.5% | ±1% | 40 | 10 |
| DHB-40 | 40 | ±1.5% | ±1% | 75 | 10-13 |
| DHB-60 | 60 | ±1.5% | ±1% | 128 | 10-13 |
| DHB-80 | 80 | ±1.5% | ±1% | 165 | 10-13 |
| DHB-100 | 100 | ±1.5% | ±1% | 200 | 10-13 |
Warranty Period ;12 months since delivery the machine .
More information can be get by contact with Zhengzhou Dayu Machinery Co.,Ltd .
