100t/h asphalt batching plant for sale
- The main port of China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | Dayu | Model Number | 100t/h | |
| Voltage | 220v/380v-50HZ(Adjustable) | Power(W) | 300kw | |
| Dimension(L*W*H) | Length:40m;Width:30;Height:17 | Certification | CE,GOST,ISO | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
100t/h asphalt batching plant for saleISO,CE,GOST
12 months warranty
Train your staff
22 years producing experience

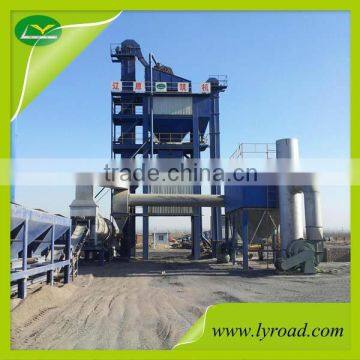

100t/h asphalt batching plant for sale
About us:
As top10 asphalt batching plant manufacturer of China,Zhengzhou Dayu Mechinary Co.,Ltd. established in 1992 and has been focused on asphalt batching plant producing for 22 years.
Dayu company business scope:
Stationary Asphalt Batching Plant:
LB series:40t/h--400t/h.(Batch Mix Type) DHB series:20t/h--100t/h.(Drum Mix Type)
Mobile Asphalt Batching Plant:
MDHB series:20t/h--100t/h.(Drum Mix Type) SLB series:8t/h--30t/h.(Drum Mix Type)
QLB series:10t/h--80t/h.(Batch Mix Type)
Concrete Batching Plant:
Stationary concrete batching plant:HZS series from 25m3/h--150m3/h.
Mobile concrete batching plant:YHZS series from 40m3/h--80m3/h.
Product Introduction:
Dayu LB serise asphalt batching plant mainly including burnng system,srying drum,dust collecting system,mixing system,bitumen supply system,accurate mearing system,electic control system,asphalt storage system.
Main Structure of Asphalt Batching Plant for Sale with Capacity of 100t/h
Burning System: 1.International brand oil burner (could use both diesel and heavy oil),full automatic control. 2.The coal burning system which possesses independent intellectual property rights,help the customers reduce the peoduction cost. |
Cold aggregate supply system: 1.Aggregate supply system adopts 3+2 modularization structure and frequency conversion timing,making material delivery smooth.Without phenomenon such as block,obstruct and so on. 2.Frequency conversion timing with credible capability;modulerized design will be convenient for transport.
|
Electrical control system: The advanced control interface,industrial monitoring system and international famous brand eletrical elements compose the operation system,can realize data management,input or store interlock protection,store and print production reports etc. |
Drying drum: 1.Outside the drying drum is covered with a 50mm heat preservation structure; 2.Professional designed lifting blades inside the drum,which can promote thermal efficiency; 3.Temperature detecting device is equipment beside the outlet of the drum. |
Main Specification of 100t/h asphalt batching plant for sale:
| Model | LB1200 |
| Capacity | 1000t/h (Standard Working Condition) |
| Mixer | 1200kg/batch |
| Fuel Consumption | Diesel consumption: 5.5-7kg/ton |
| Air Emissions | ≤20mg/Nm3 |
| Working Noise | ≤70db(A) |
| Installation Power | 300kW |
| Voltage | 220V/380V-50Hz (adjustable) |
| Plant Covering Area | Length:40m; Width:30m; Height:17m |
Configuraton of 100t/h asphalt batching plant for sale:
1. Cold Aggregate Feed System: 4*7.5 m3 storage bins
2. Drying Drum: Φ1800*8000mm
3. Oil Burner: made in Italy, capacity: 1200kg/h
4. Dust Collection System:
bag house collector/water collector for optional
5. Filler Supply System: 1*30m3 filler bin(adjustable)
6. Bitumen Supplying System:
2*30m3 bitumen tank(adjustable) with thermal oil heating system
7. Mixing Tower:
1200kg/batch twin shaft mixer, 2*22kW Siemens's motor
8. Pneumatic System: 2.0Nm3/min air compressor
9. Finished Asphalt Storage Bin: 30t storage bin under mixer
10. Control System: PLC control system(language for optional)
