Top 10 China Batch Mixing Asphalt Plant For Sale
- China Main Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | Dayu | Model Number | LB | |
| Voltage | adjustable | Power(W) | adjustable | |
| Dimension(L*W*H) | adjustable | Weight | 40-100t | |
| Certification | CE,Gost, ISO9001,ISO14001 | Warranty | 18 months after install the plant, 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Top 10 China Batch Mixing Asphalt Plant For Sale
Company Profile: Zhengzhou Dayu Machinery Co.,Ltd is a professional construction machinery manufacturer for Asphalt Plant over 20 years. we are top 10 of China.
Dayu supply asphalt mixing plant base on ISO9001,ISO14001, CE, GOST,
Businees scope: batch mixing asphalt plant, drum mixing asphalt plant, mobile asphalt palnt ,
small asphalt plant,asphalt recycling plant, asphalt hot box and other road constrution equipment.
Dayu asphalt mixing plants are used all ove China and have exported to Europe, America, Russia,
the Middle East, Brazil, India, Australia, South Africa, Malaysia, Kazakhstan, Egypt, Peru,etc.
Introduce:
China Batch Mixing Asphalt Plant For Sale
Batch Mixing Asphalt plant mainly including burning system, vibrating screen system, cold aggregate supply system, electric control system and drying drum.
Burning system |
| 1.International brand oil burner (could use both diesel and heavy oil), full automatic control. 2.The coal burning system which possesses independent intellectual property rights, help the customers reduce the production cost. |
| Vibrating screen system |
| 1.The screen mesh is made from manganese steel with high strength; convenient for replace and maintenance; 2.Driven by two motors which are installed onto the screen, exciting force will be coupling automatically; |
Cold aggregate supply system |
| 1.Aggregate supply system adopts 3+2 modularization structure and frequency conversion timing, making material delivery smooth. Without phenomenon such as block, obstruct and so on. 2.Frequency conversion timing with credible capability; modulerized design will be convenient for transport. |
Electrical control system |
| The advanced control interface, industrial monitoring system and international famous brand electrical elements compose the operation system, can realize data management, input or store recipe, adjust time, material weighing correcting, failure self-diagnosis; failure alarming, interlock protection, store and print production reports etc. |
Drying drum |
| 1.Outside the drying drum is covered with a 50mm heat preservation structure, 2.Professional designed lifting blades inside the drum, which can promote thermal efficiency. 3.Temperature detecting device is equipment beside the outlet of the drum |
Batch Mixing Asphalt plant is one of the most popular products of Dayu for the high efficiency and excellent quality.
Both the integrated storage bins (HLB Series) and separated storage bins (LB Series) fall into the general category of large asphalt plants for the different location of the finished storage bins. Production capacity ranges at 40~480T/H.
| Type | Plant Capacity (standard conditions): | Mixer Capacity: | Consumption (standard conditions): | Measurement accuracy | |
| Fuel Oil | Fuel Coal | ||||
| LB500 | 40 t/h | 500 kg | 5.5-7 kg/t | 10kg/t | Aggregate: ±0.5% Powder: ±0.5% Asphalt: ±0.25% |
| LB700 | 56 t/h | 700 kg | 5.5-7 kg/t | 10kg/t | |
| LB800 | 64 t/h | 800 kg | 5.5-7 kg/t | 10kg/t | |
| LB1000 | 80 t/h | 1000 kg | 5.5-7 kg/t | 10kg/t | |
| LB1100 | 90 t/h | 1100 kg | 5.5-7 kg/t | 10kg/t | |
| LB1200 | 100 t/h | 1200 kg | 5.5-7 kg/t | 10kg/t | |
| LB1250 | 105 t/h | 1250 kg | 5.5-7 kg/t | 10kg/t | |
| LB1500 | 120 t/h | 1500 kg | 5.5-7 kg/t | 10kg/t | |
| LB1600 | 130 t/h | 1600 kg | 5.5-7 kg/t | 10kg/t | |
| LB2000 | 160 t/h | 2000 kg | 5.5-7 kg/t | 10kg/t | |
| LB2200 | 175 t/h | 2200 kg | 5.5-7 kg/t | 10kg/t | |
| LB2500 | 200 t/h | 2500 kg | 5.5-7 kg/t | 10kg/t | |
| LB3000 | 240 t/h | 3000 kg | 5.5-7 kg/t | 10kg/t | |

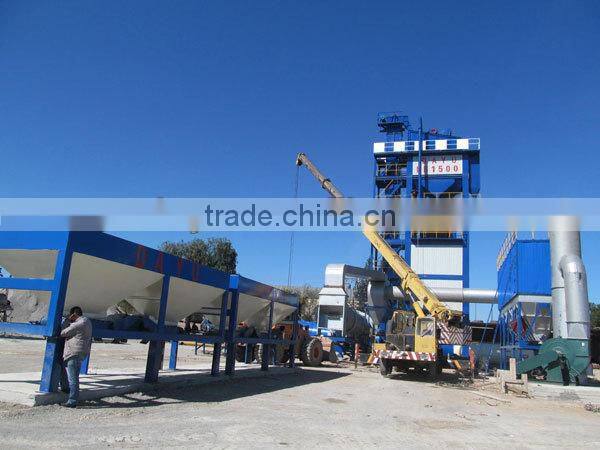

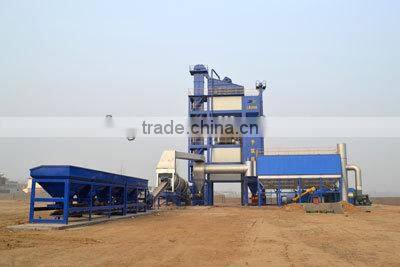

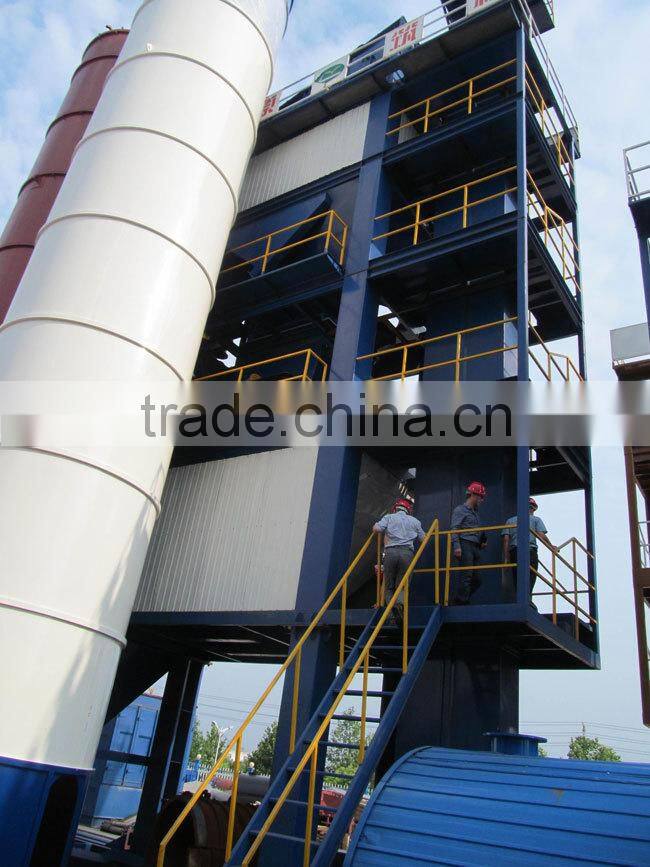

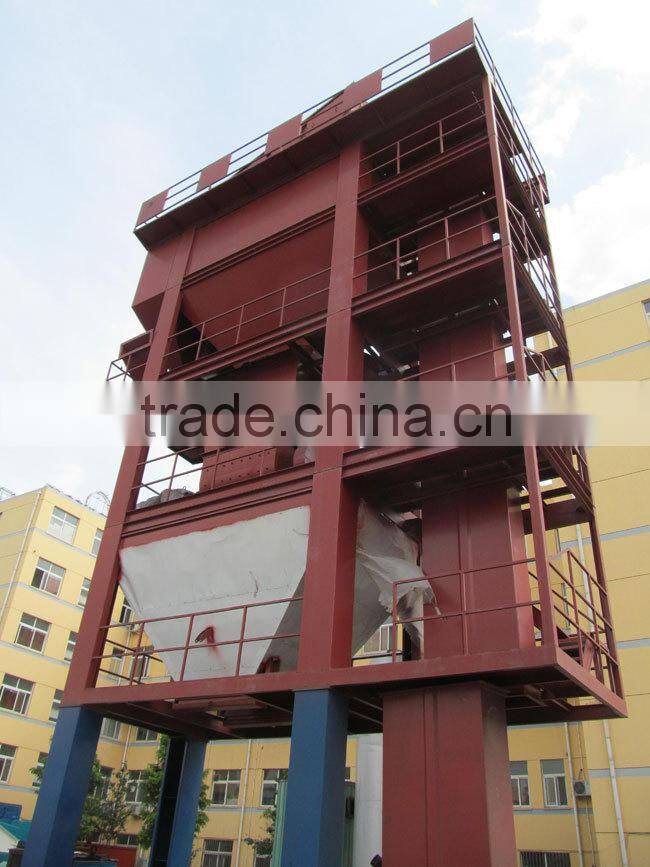

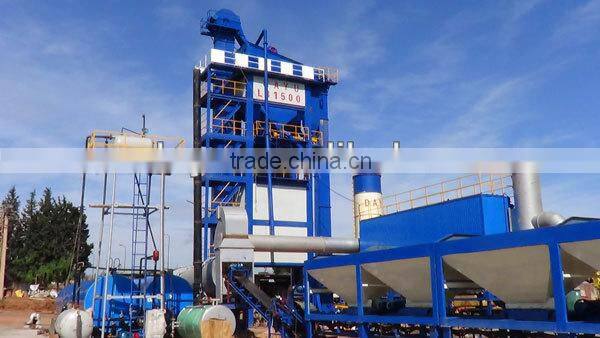

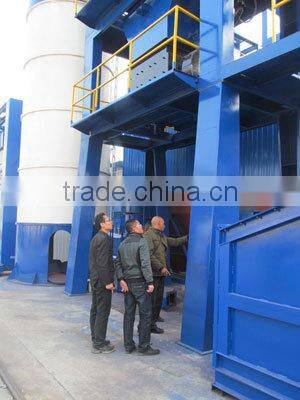

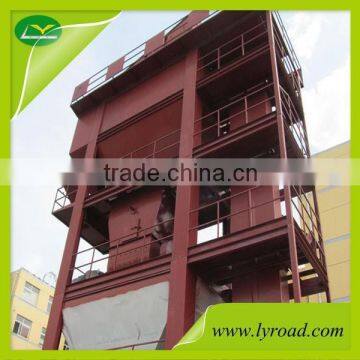

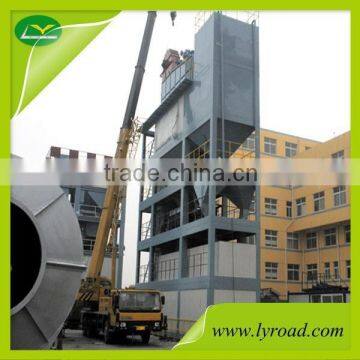

Worksite Photos:
Quality Control (QC):
Third Control
ISO9001:2000 Certificate
European CE Certificate
Environment Protection Design
Commercial Term:
Delivery Time : 30~40 Working Days
Payment Term : T/T or L/C
Transportation : by sea or railway in container.
After Sale Service:
Turn-Key Solutions
Erection & Commissioning Service
Operation Training Service
Spare Parts Supply (all working life)
Our Commitment:
1. Provide technical consultation service for customer, do well technical follow-up.
2. Installation, debug, and provide relevant technical training.
3. Strictly carry out three guarantees (guaranteed quality, guaranteed quantity and guaranteed repair).
4. Ensure spare parts and components available adequately and timely for all working life
Warranty Period : 12 months since delivery the machine .
More information can be get by contact with Zhengzhou Dayu Machinery Co.,Ltd
