Asphalt Batching Plant (40-480t/h)
- China Main Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | Dayu Brand Asphalt Batching Plant | Model Number | LB | |
| Voltage | adjustable | Power(W) | adjustable | |
| Dimension(L*W*H) | adjustable | Weight | 40-100t | |
| Certification | CE,Gost,ISO9001,ISO14001 | Warranty | 18 months after install the plant, 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Asphalt Batching Plantoutput;40-480t/h
ISO9001,ISO14001,CE,Gost
Asphalt Batching Plant over 20 years
after sale service
Asphalt Batching Plant(20-100t/h)
Zhengzhou Dayu Machinery Co.,Ltd is a professional construction machinery manufacturer for Asphalt Plant over 20 years. top 10 of China.
Dayu Asphalt Mix Plant have three main groups
Asphalt Batching Plant
Drum Asphalt Mix Plant
Mobile Asphalt Mix Plant

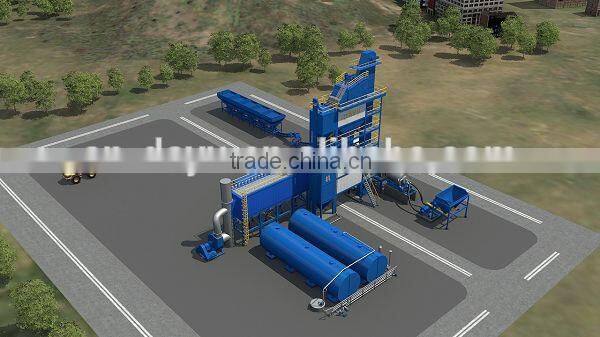

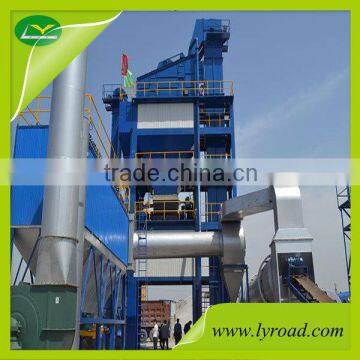

Asphalt Batching Plant
Asphalt Batching Plantmainly including burning system, vibrating screen system, cold aggregate supply system, electric control system and drying drum.
Asphalt Batching Plant is one of the most popular products of Dayu for the high efficiency and excellent quality.
Both the integrated storage bins (HLB Series) and separated storage bins (LB Series) fall into the general category of large asphalt plants for the different location of the finished storage bins. Production capacity ranges at 40~480T/H.
Main Structure of Asphalt Batching Plant
Burning system
Vibrating screen system
Cold aggregate supply system
Electrical control system

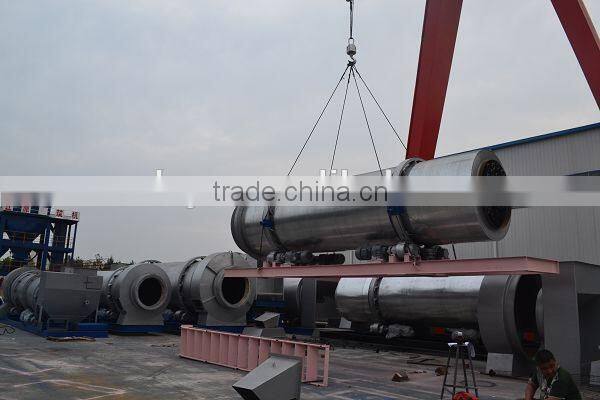

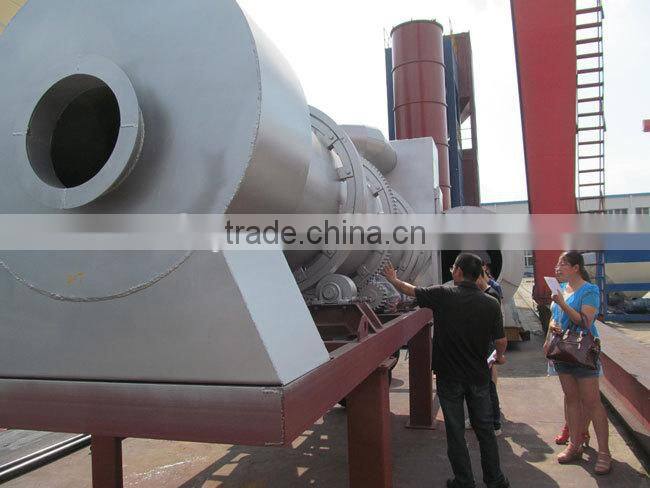

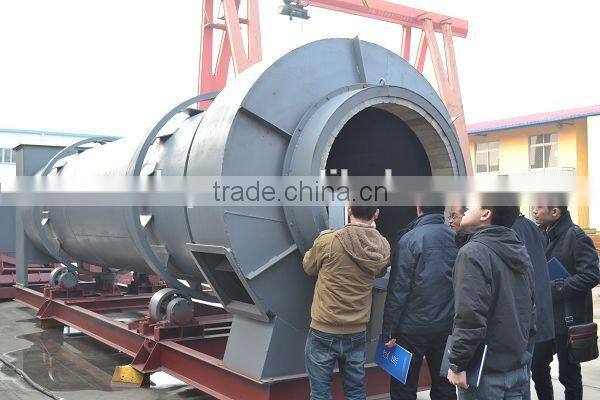

Drying drum
Main Parameters of Asphalt Batching Plant
| Type | Plant Capacity (standard conditions): | Mixer Capacity: | Consumption (standard conditions): | Measurement accuracy | |
| Fuel Oil | Fuel Coal | ||||
| LB500 | 40 t/h | 500 kg | 5.5-7 kg/t | 10kg/t | Aggregate: ±0.5% Powder: ±0.5% Asphalt: ±0.25% |
| LB700 | 56 t/h | 700 kg | 5.5-7 kg/t | 10kg/t | |
| LB800 | 64 t/h | 800 kg | 5.5-7 kg/t | 10kg/t | |
| LB1000 | 80 t/h | 1000 kg | 5.5-7 kg/t | 10kg/t | |
| LB1100 | 90 t/h | 1100 kg | 5.5-7 kg/t | 10kg/t | |
| LB1200 | 100 t/h | 1200 kg | 5.5-7 kg/t | 10kg/t | |
| LB1250 | 105 t/h | 1250 kg | 5.5-7 kg/t | 10kg/t | |
| LB1500 | 120 t/h | 1500 kg | 5.5-7 kg/t | 10kg/t | |
| LB1600 | 130 t/h | 1600 kg | 5.5-7 kg/t | 10kg/t | |
| LB2000 | 160 t/h | 2000 kg | 5.5-7 kg/t | 10kg/t | |
| LB2200 | 175 t/h | 2200 kg | 5.5-7 kg/t | 10kg/t | |
| LB2500 | 200 t/h | 2500 kg | 5.5-7 kg/t | 10kg/t | |
| LB3000 | 240 t/h | 3000 kg | 5.5-7 kg/t | 10kg/t | |

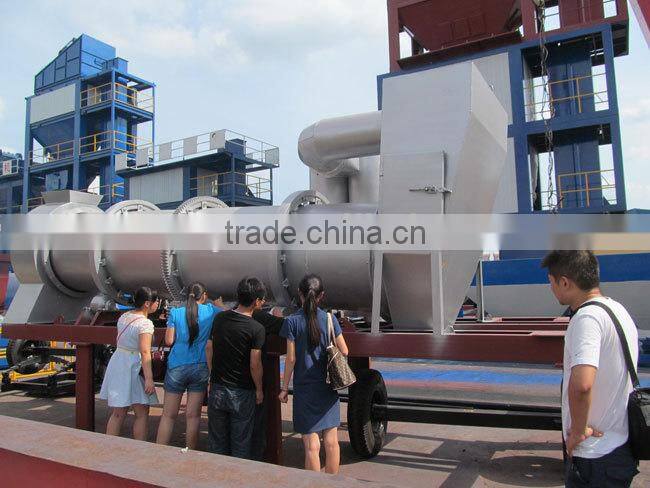

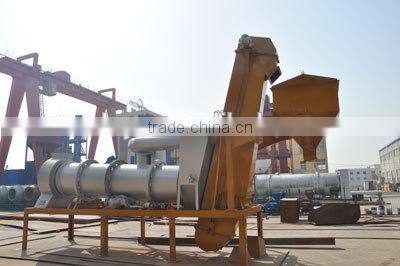

Drum Asphalt Mix Plant
DHB asphalt drum mixing plant mainly including: cold aggregate supply system, burner, drying and mixing drum, water dust catcher, bitumen supply system, electrical control system.
Drum mixing type asphalt plant, to continuously produce asphalt mixture.
Burning System: I. Oil burner; II. Gas burner; III. Coal burner; IV. Oil & Gas dual purpose burner.
Main Parameters of Drum Asphalt Mix Plant DHB Series
| Model | Productivity(t/h) | Weighing Accuracy | Total Power(kW) | Coal Consumption(kg/t) | |
| Aggregate | Asphalt | ||||
| DHB-20 | 20 | ±1.5% | ±1% | 40 | 10 |
| DHB-40 | 40 | ±1.5% | ±1% | 75 | 10-13 |
| DHB-60 | 60 | ±1.5% | ±1% | 128 | 10-13 |
| DHB-80 | 80 | ±1.5% | ±1% | 165 | 10-13 |
| DHB-100 | 100 | ±1.5% | ±1% | 200 | 10-13 |
Warranty Period ;12 months since delivery the machine .
More information can be get by contact with Zhengzhou Dayu Machinery Co., Ltd
