New Designed Asphalt Mixing Plant Machinery, Best Asphalt Mixing Plant
- China Main Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | Dayu Brand Asphalt Mixing Plant | Model Number | LB and DHB | |
| Voltage | adjustable | Power(W) | adjustable | |
| Dimension(L*W*H) | adjustable | Weight | 40-100t | |
| Certification | CE,Gost,ISO9001,ISO14001 | Warranty | 18 months after install the plant, 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
New Designed Asphalt Mixing Plant Machinery, Best Asphalt Mixing Plant
Zhengzhou Dayu Machinery Co.,Ltd is a professional construction machinery manufacturer for Asphalt Mixing Plant over 20 years. We are top 10 of China.
Dayu supply asphalt batch mix plant based on ISO9001,ISO14001, CE, GOST,Businees scope:
Bacth Asphalt Mixing plant:
LB series from 40- 240t/h; (Batch Mix )
Drum Asphalt Mixing plant:
DHB series from 20-100t/h(Drum Mix)
Mobile Asphalt Mixing plant:
MDHB series from 20-100t/h (Drum Mix) ; SLB series from 8-30t/h (Drum Mix) ;
QLB series from 10-80t/h (Batch Mix )
Concrete plant:
Stationary HZS series from 25-180m3/h; Mobile YHZS series from 40-80m3/h
Our road and construction equipment are used all over China and have exported to Europe, America, Russia, Brazil, India, Australia, Algeria, Kenya, South Africa, Philippines, Kazakhstan, Egypt, Peru etc.
Bacth Asphalt Mixing plant
Batch Asphalt Mixing Plant mainly including burning system, vibrating screen system, cold aggregate supply system, electric control system and drying drum.
Batch Asphalt Mixing Plant is one of the most popular products of Dayu for the high efficiency and excellent quality.
Main Parameters of batch Asphalt Mixing Plant
| Type | Plant Capacity (standard conditions): | Mixer Capacity: | Consumption (standard conditions): | Measurement accuracy | |
| Fuel Oil | Fuel Coal | ||||
| LB500 | 40 t/h | 500 kg | 5.5-7 kg/t | 10kg/t | Aggregate: ±0.5% Powder: ±0.5% Asphalt: ±0.25% |
| LB700 | 56 t/h | 700 kg | 5.5-7 kg/t | 10kg/t | |
| LB800 | 64 t/h | 800 kg | 5.5-7 kg/t | 10kg/t | |
| LB1000 | 80 t/h | 1000 kg | 5.5-7 kg/t | 10kg/t | |
| LB1100 | 90 t/h | 1100 kg | 5.5-7 kg/t | 10kg/t | |
| LB1200 | 100 t/h | 1200 kg | 5.5-7 kg/t | 10kg/t | |
| LB1250 | 105 t/h | 1250 kg | 5.5-7 kg/t | 10kg/t | |
| LB1500 | 120 t/h | 1500 kg | 5.5-7 kg/t | 10kg/t | |
| LB1600 | 130 t/h | 1600 kg | 5.5-7 kg/t | 10kg/t | |
| LB2000 | 160 t/h | 2000 kg | 5.5-7 kg/t | 10kg/t | |
| LB2200 | 175 t/h | 2200 kg | 5.5-7 kg/t | 10kg/t | |
| LB2500 | 200 t/h | 2500 kg | 5.5-7 kg/t | 10kg/t | |
| LB3000 | 240 t/h | 3000 kg | 5.5-7 kg/t | 10kg/t | |
Video Of Hot Mixing Plant Working In Algeria Please check: /watch?v=IbPrLaOBIjY

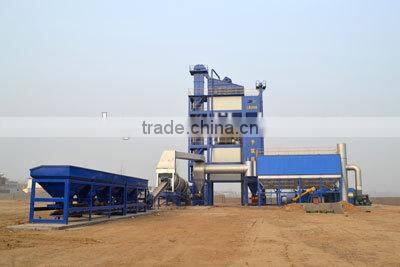

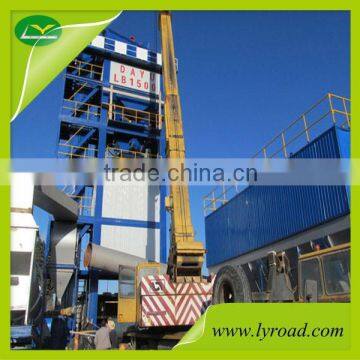

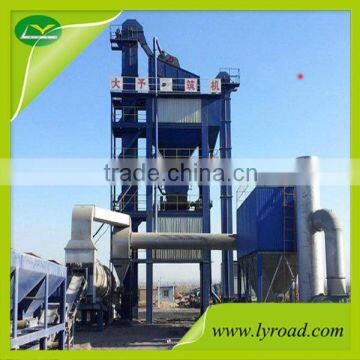

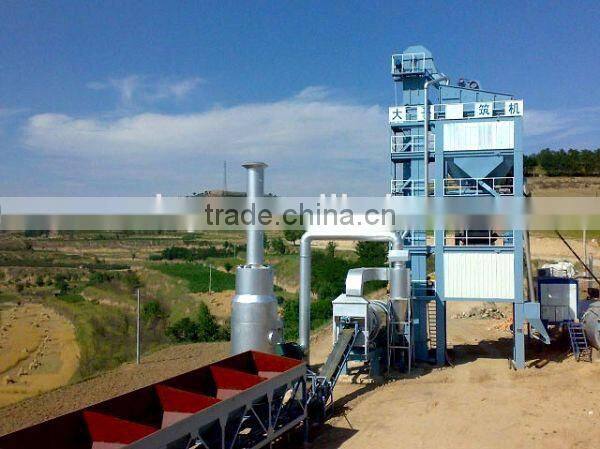

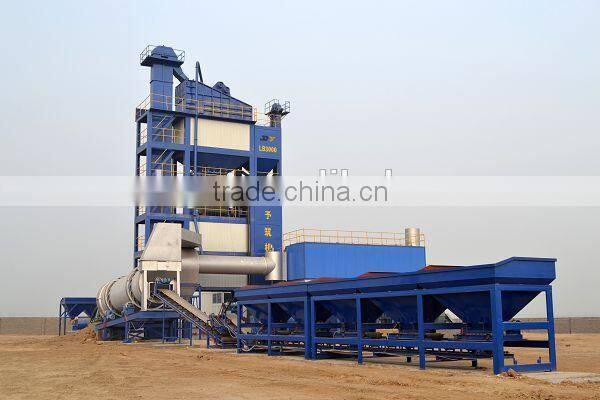

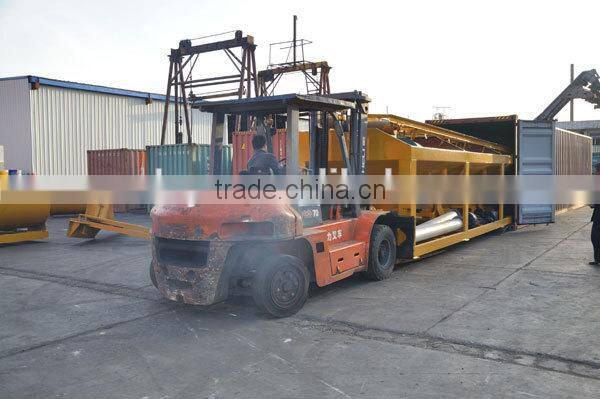

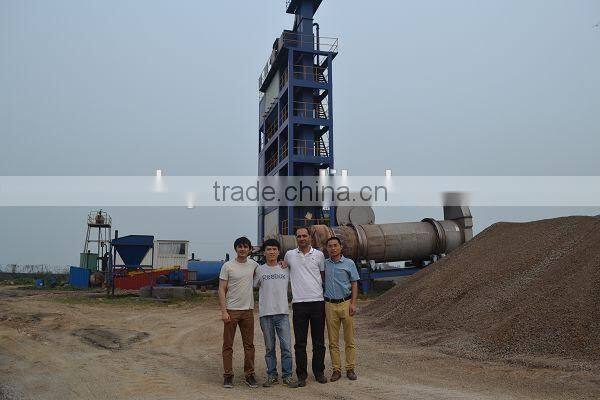

Related photos:
Drum Asphalt Mixing plant
The Components of Drum Asphalt Mixing Plant including Four Bin Feeder, Vibrating Screen System, Slinger Conveyor, Dryer Drum, Bitumen Tanks, Multicylone Exhaust, Load Out Conveyor, Mineral Filler, Control Cabin and Ldo Tank, which can working with good quality and high efficiency.
Main Parameters of Drum Asphalt Mixing Plant DHB Series
| Model | Productivity(t/h) | Weighing Accuracy | Total Power(kW) | Coal Consumption(kg/t) | |
| Aggregate | Asphalt | ||||
| DHB-20 | 20 | ±1.5% | ±1% | 40 | 10 |
| DHB-40 | 40 | ±1.5% | ±1% | 75 | 10-13 |
| DHB-60 | 60 | ±1.5% | ±1% | 128 | 10-13 |
| DHB-80 | 80 | ±1.5% | ±1% | 165 | 10-13 |
| DHB-100 | 100 | ±1.5% | ±1% | 200 | 10-13 |

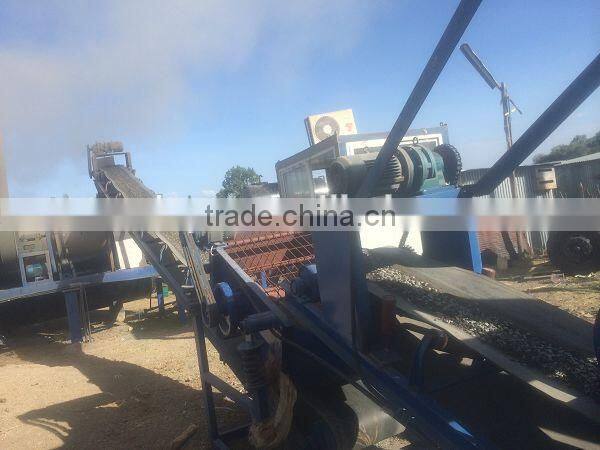

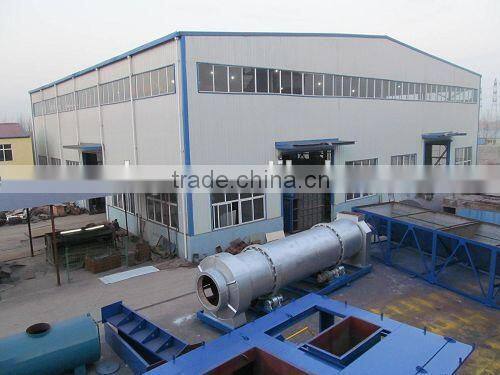

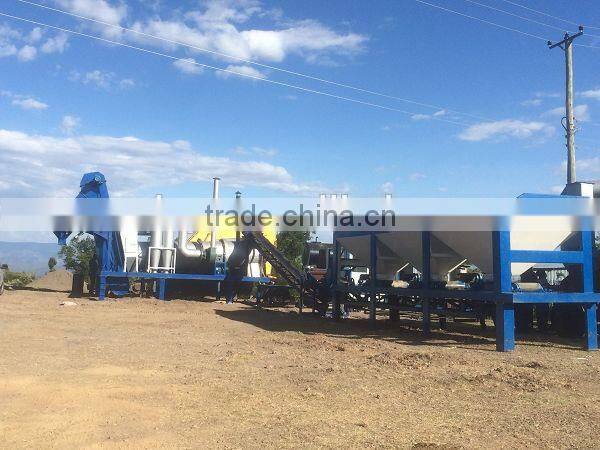

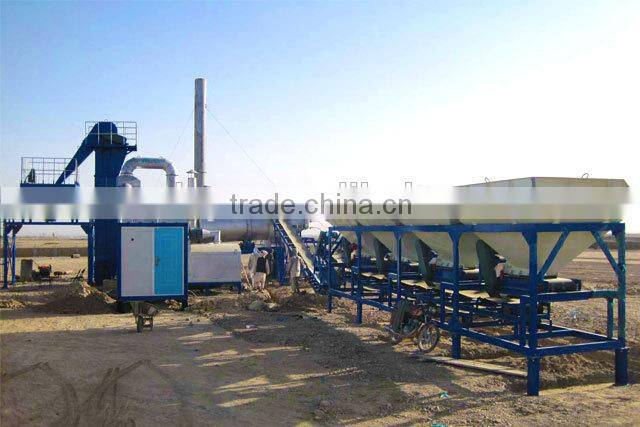

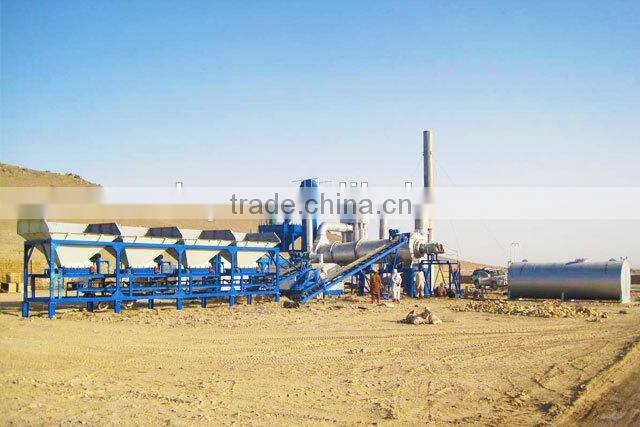

Related photos:
After Sale Service:
Turn-Key Solutions
Erection & Commissioning Service
Operation Training Service
Spare Parts Supply (all working life)
Our Commitment:
1. Provide technical consultation service for customer, do well technical follow-up.
2. Installation, debug, and provide relevant technical training.
3. Strictly carry out three guarantees (guaranteed quality, guaranteed quantity and guaranteed repair).
4. Ensure spare parts and components available adequately and timely for all working life.
Warranty Period : 12 months since delivery the machine .
More information can be get by contact with Zhengzhou Dayu Machinery Co.,Ltd
