Special Transformer for Silicon Molybdenum Rod Furnace 51kva Three Phase Dry Electrical Transformer
- SHANGHAI
- T/T
You May Like
-
Used for Salt Bath Furnace Oil/dry Type Special Transformer
-
Three Phase Electric Furnace Transformer
-
28 Kva Dry Type Single Phase Furnace Transformer
-
Used for Glass Electric Smelting Insulation F Class 180kva 3 Phase Dry Transformer
-
Used for Silicon Molybdenum Rod 800kva Insulation Dry Type Transformer
-
Used for Glass Electric Smelting 700kva Insulation Single Phase Furnace Transformer
Product Details
| Place of Origin | Jiangsu, China | Brand Name | WANSHI | |
| Model Number | HSG-51 | Usage | Electronic | |
| Phase | Three | Coil Structure | Toroidal |
Product Description

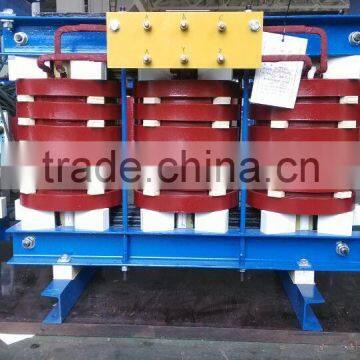

special transformer for Silicon molybdenum rod furnace 51kva three phase dry electrical transformer
Silicon molybdenum rod (glass electric smelting ) furnace transformer is specially designed for using together with silicon molybdenum rod (glass electric smelting ) furnace. It is used in situation where power isolating low voltage output.
Silicon molybdenum rod (glass electric smelting ) furnace transformer is used for power source in front of Silicon molybdenum rod (glass electric smelting ) furnace.
The resistance of silicon molybdenum rod electric heater increase dramatically as temperature rises. At the beginning of heating up, the resistance of electric heater is relatively small, and voltage needed is small which is about l/ 4—1/3 of working voltage. According to the working voltage of silicon molybdenum rod electric heater, and according to the forward characteristics of resistance and temperature, the multi-tapping method is used as the transformer voltage output method, so as to meet working voltage requirement of electric heater at different temperatures, as a result, the grid power factor is improved.
special transformer for Silicon molybdenum rod furnace 51KVA three phase dry electrical transformer
Note: All listed parameters are just for your reference, the final data will be based on the drawing of our products,
meanwhile they can be adjusted as per customers' requirement.
dry electrical furnace transformer
