Home > Products > push button switch > RS-5202 vertical push switch button

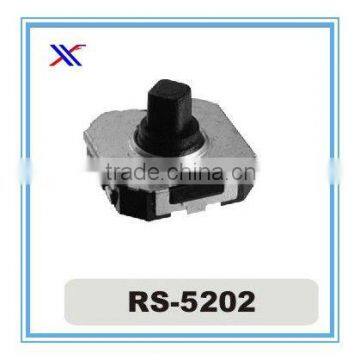

RS-5202 vertical push switch button
- 5000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | XF | |
| Model Number | RS-5202 |
Product Description
Specifications
Push switch1 ISO 9001 ,SGS report,ROHS compliant
2 5 years Manufacturers
3 Quality is guaranteed and low price
Push switch
Specification:
Item |
| Standard |
|
| |
Rating | 0.1A DC30V | |
|
| |
Contact Resistance | 100mΩ max(initial) | |
|
| |
Insulation Resistance | 100MΩ min(DC250V) | |
|
| |
Dielectric Strength | AC250V (50-60Hz for 1 minute) | |
|
|
Electrically Life |
| 100,000 cycles |
|
| |
Operating Temperature Range | -20~+65 | |
|
| |
Operating Force | 180±80gf | |
|
| |
Operating Model | Non-Lock | |
Self-Lock |
Application of mini switch series:
Widely apply to:
1.Audio Products:MP3,MP4,DVD. Audio;
2.Digital Products: digital camera, digital video and so on;
3.Remote Control: the remote control of automobile domestic security products;
4.Communication Products: mobile phone, vehicle-mounted phone, telephone set, building equipment, PDA and so on;
5.We have all kinds of phone jacks(2.5mm/3.5mm/6.35mm),Dc Power Jacks,RCA Jacks,Connectors,Switches(flip/micro/power/rocket/multi function),A&V Composite-Board,USB,PCB,HDMI,DR/DB Jacks,DIV,SATA etc.
Services:
1.Size,color,materials and plating can be variable according to customer definition.
2..Consulting price on alitalk must reply ASAP in working days.
3).we can provide the products few as samples with high quality,moderate price,and good customer services,any help, ontact us please.
Contact Us
- Shenzhen Xingfeng Precision Parts Co., Ltd.
- Contact namejenny zhang Chat Now
- Phone86-769-83902805
- AddressTianxiaxing Toyota 4S Shop opposite,Suken Village,Changlang Road,Changping Town, Shenzhen, Guangdong
