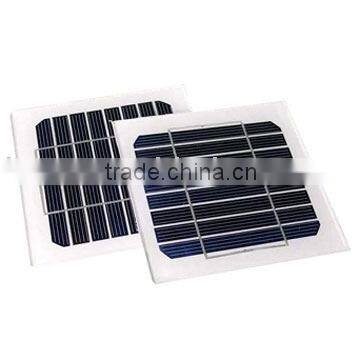

Solar Panel (poly/mono/PET)
- Ningbo/Shanghai
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Leacy | |
| Model Number | LCP/LCM | Material | Other, Poly/Mono | |
| Size | Customizable | Number of Cells | Customizable | |
| Max. Power | 3W-320W |
Product Description
solar panel:
CE, ISO and ROSH certification.
Life time more than 20 years
Customize the special dimension and frame according your request.
Specifications of Polycrystalline Silicon Solar panel:
Model | Max. Power | Max. Voltage | Max. Current Im(A) | Open Circuit Voltage | Short Circiut Current | Module Dimension |
LCP5W/6 | 5 | 8.75 | 0.57 | 10.5 | 0.66 | 265*265*25 |
LCP5W/12 | 5 | 17.5 | 0.29 | 21.5 | 0.32 | 265*265*25 |
LCP8W/12 | 8 | 17.5 | 0.46 | 21.5 | 0.52 | 301*356*25 |
LCP10W/12 | 10 | 17.5 | 0.57 | 21.5 | 0.65 | 301*356*25 |
LCP15W/12 | 15 | 17.5 | 0.86 | 21.5 | 0.97 | 356*426*28 |
LCP20W/12 | 20 | 17.5 | 1.14 | 21.5 | 1.29 | 356*576*28 |
LCP25W/12 | 25 | 17.5 | 1.43 | 21.5 | 1.61 | 356*676*28 |
LCP30W/12 | 30 | 17.5 | 1.71 | 21.5 | 1.94 | 356*816*28 |
LCP35W/12 | 35 | 17.5 | 2.00 | 21.5 | 2.26 | 356*816*28 |
LCP40W/12 | 40 | 17.5 | 2.29 | 21.5 | 2.58 | 576*670*40 |
LCP45W/12 | 45 | 17.5 | 2.57 | 21.5 | 2.91 | 576*670*40 |
LCP50W/12 | 50 | 17.5 | 2.86 | 21.5 | 3.23 | 510*880*40 |
LCP55W/12 | 55 | 17.5 | 3.14 | 21.5 | 3.55 | 510*880*40 |
LCP60W/12 | 60 | 17.5 | 3.43 | 21.5 | 3.88 | 670*816*40 |
LCP65W/12 | 65 | 17.5 | 3.71 | 21.5 | 4.20 | 670*816*40 |
LCP75W/12 | 75 | 17.5 | 4.29 | 21.5 | 4.84 | 670*990*40 |
LCP80W/12 | 80 | 17.5 | 4.57 | 21.5 | 5.17 | 670*990*40 |
LCP85W/12 | 85 | 17.5 | 4.86 | 21.5 | 5.49 | 537*1198*40 |
LCP90W/12 | 90 | 17.5 | 5.14 | 21.5 | 5.81 | 537*1198*40 |
LCP100W/12 | 100 | 17.5 | 5.71 | 21.5 | 6.46 | 670*1250*40 |
LCP100W/24 | 100 | 35 | 2.86 | 43 | 3.23 | 670*1250*40 |
LCP120W/12 | 120 | 17.5 | 6.86 | 21.5 | 7.75 | 670*1476*40 |
LCP120W/24 | 120 | 35 | 3.43 | 43 | 3.88 | 670*1476*40 |
LCP160W/24 | 160 | 35 | 4.57 | 43 | 5.17 | 808*1580*46 |
LCP190W/24 | 190 | 26 | 7.31 | 33 | 7.89 | 990*1480*46 |
LCP200W/24 | 200 | 26.2 | 7.63 | 33.4 | 8.12 | 990*1480*46 |
