Hydraulic Steel Plate Press Brake W67 Sheet Iron Bending Machine

FOB Price

US$ 3,000 - 90,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	Huayang	Model Number	WC67
Machine Type	Press Brake	Raw Material	Sheet / Plate Rolling
Material / Metal Processed	Other, Mild steel ,stainless steel, aluminum...	Power	Hydraulic
Automation	Automatic	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

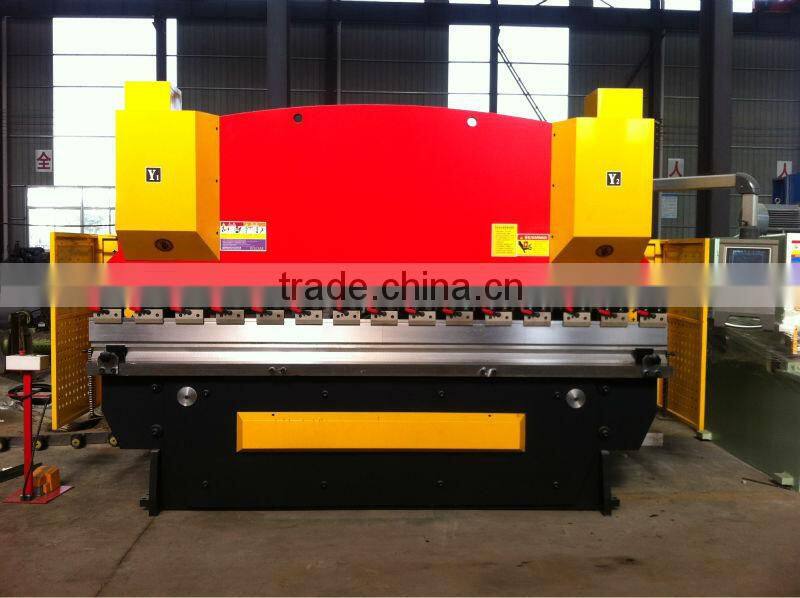

Hydraulic steel plate press brake W67 sheet Iron bending machine

BRIEF INSTRUCTION:

1. Steel-welded construction,vibration to eliminate stress, with high strength and good rigidity.

2. Hydrualic top-drive,steadiness and reliability.Mechanical stop,steel torsion bar maintain synchronization,high precision.

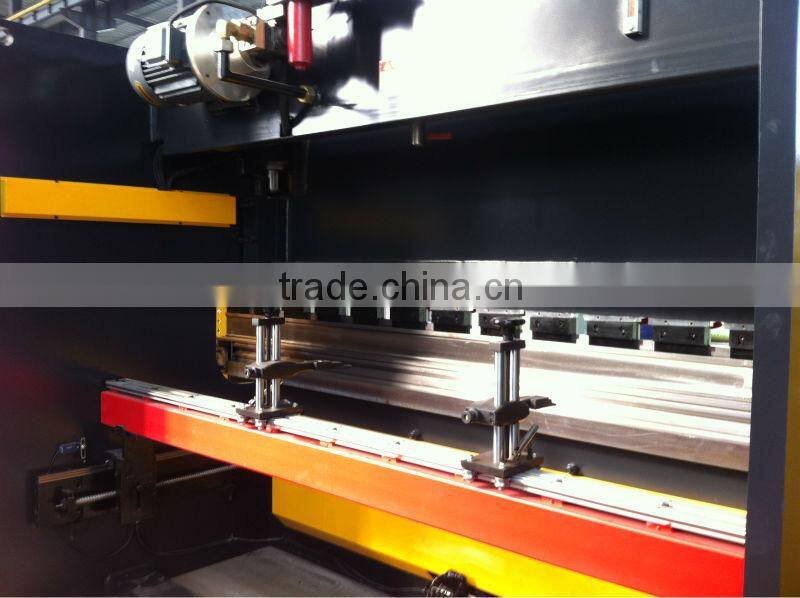

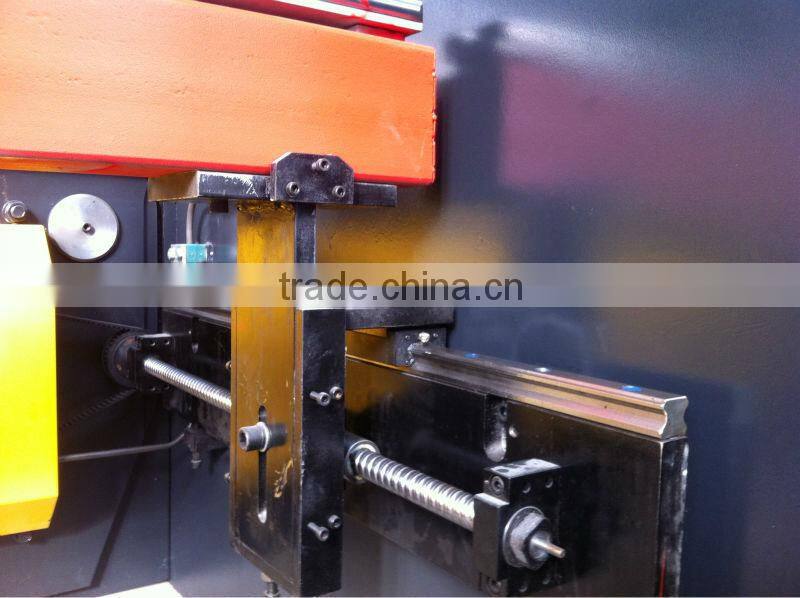

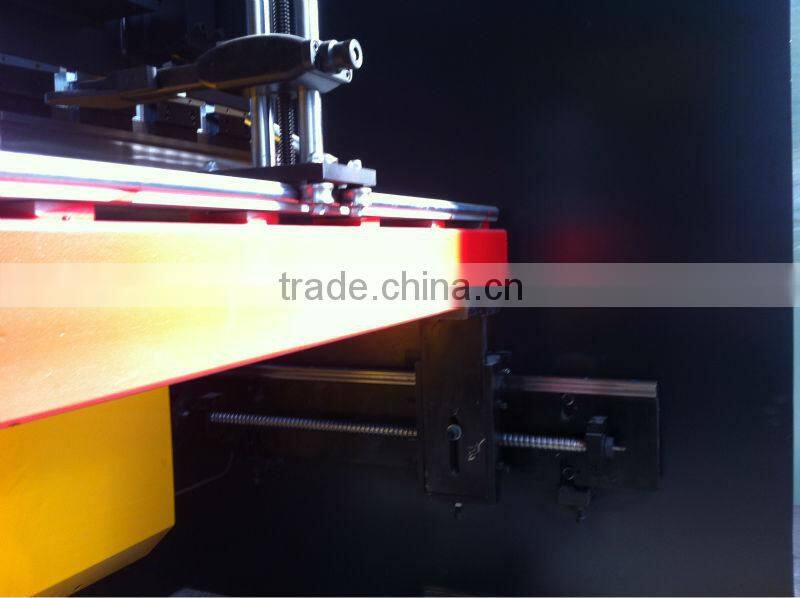

3. Motorize-adjustinf device of backgauge and rams stroke,fine adjusting by handwheel,numberical display.

4. Deflection compensation unit installed on the top die.manual crowned die holder is adopted for the machine above 250 ton length 4000 mm.

COMPONENTS :

Operation System: ESTUN /DELEM (HOLAND)

Oil pump(Gear Pump): Chengjie(Shanghai)

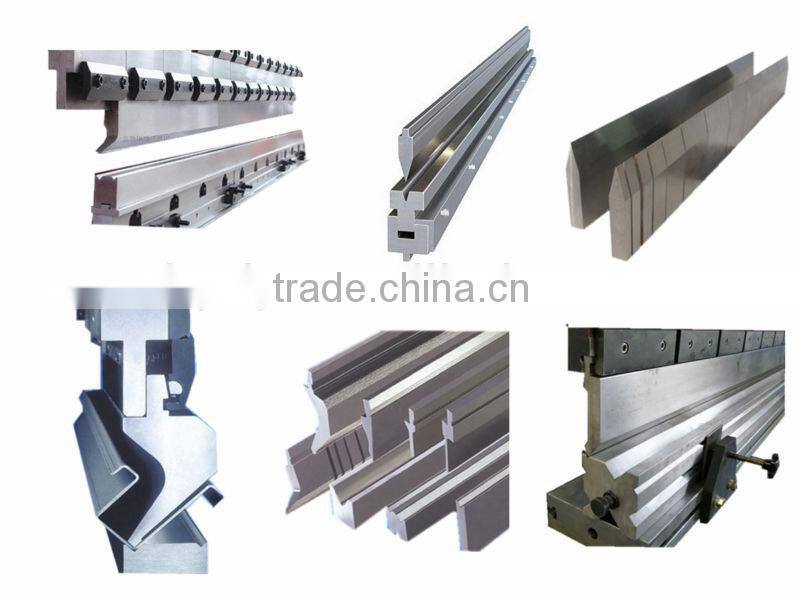

Molds:NANTONG

Hydraulic elements: Rexroth (Germany)/Omega(U.S.A.)

Electric parts: Siemens Germany)

Motor: Siemens(Germany) /Hengli (Nantong)

Main Seal:VALQUA(Japan)/NOK(Japan)

All components also can supply according to client's requirement.

Hydraulic press brake (Series WC67Y 67k)
Specification	Normal Pressure	Length of working table	Distance between uprights	Depth of throat	Ram Stroke	Motor Power
Specification	KN	mm	mm	mm	mm	KW
WC67-40/2000	400	2000	1590	200	100	5.5
WC67-40/2200	400	2200	1590	200	100	5.5
WC67-40/2500	400	2500	1900	200	100	5.5
WC67-50/2500	500	2500	1900	250	120	5.5
WC67-50/3200	500	3200	2600	250	120	5.5
WC67-63/2500	630	2500	2050	250	100	5.5
WC67-63/3200	630	3200	2600	250	100	5.5
WC67-80/3200	800	3200	2600	250	100	7.5
WC67-80/4000	800	4000	3200	250	100	7.5
WC67-100/2500	1000	2500	2050	320	120	7.5
WC67-100/3200	1000	3200	2600	320	120	7.5
WC67-100/4000	1000	4000	3000	320	120	7.5
WC67-100/5000	1000	5000	4000	320	120	7.5
WC67-125/2500	1250	2500	2050	320	120	7.5
WC67-125/3200	1250	3200	2600	320	120	7.5
WC67-125/4000	1250	4000	3200	320	120	7.5
WC67-125/5000	1250	5000	4000	320	120	7.5
WC67-160/3200	1600	3200	2600	320	200	11
WC67-160/4000	1600	4000	3200	320	200	11
WC67-160/5000	1600	5000	4000	320	200	15
WC67-160/6000	1600	6000	4800	320	200	15

CNC SYSTEM:
