Home > Products > WC67Y series hydraulic press brake > CNC steel plate bending machine hydraulic 4000mm steel metal bender

CNC steel plate bending machine hydraulic 4000mm steel metal bender

FOB Price

USD $6,000 - $90,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port shanghai
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	Huayang	Model Number	CNC 160tons press brake hydraulic 4000mm steel metal bender machine
Machine Type	Press Brake	Raw Material	Sheet / Plate Rolling
Material / Metal Processed	Other, carbon steel, aluminum, stainless steel....	Power	Hydraulic
Automation	Automatic	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

CNC steel plate bending machine hydraulic 4000mm steel metal bender

BRIEF INSTRUCTION:

1. Steel-welded construction,vibration to eliminate stress, with high strength and good rigidity.

2. Hydrualic top-drive,steadiness and reliability.Mechanical stop,steel torsion bar maintain synchronization,high precision.

3. Motorize-adjustinf device of backgauge and rams stroke,fine adjusting by handwheel,numberical display.

4. Deflection compensation unit installed on the top die.manual crowned die holder is adopted for the machine above 250 ton length 4000 mm.

5.Travels of rear block stop ( x ) slide block ( y) are all controlled by computer automatically.

6.Rear Block stop adopts ordinary screw mandrel or precision screw mandrel unilateral to eliminate the transmission clearance. and adopts linear duideway ,servo motor.

COMPONENTS :

Item	Description
Operation System	CNC100,RT200,E200,DA41,DA52 DA56,DA65
Oil pump(Gear Pump)	Chengjie(Shanghai)
Hydraulic elements	Rexroth (Germany)/Omega(U.S.A.)
Electric parts	Siemens (Germany)
Motor	Siemens(Germany) /Hengli (Nantong)
Main Seal	Valqua/Nok(Japan)
Moulds	Beleite (Jiangsu)

All components also can supply according to client's requirement.

SPECIFICATION WC67k-160t/4000

	unit	Value
Nominal Pressure	KN	1600
Length of working Table	mm	4000
Distance between uprights	mm	3200
Throat depths	mm	320
Ram Stroke	mm	200
Motor power	KW	11

OUR FACTORY

CNC SYSTEM:

BALL SCREW AND LINEAR GUIDEWAY

PRODUCTS

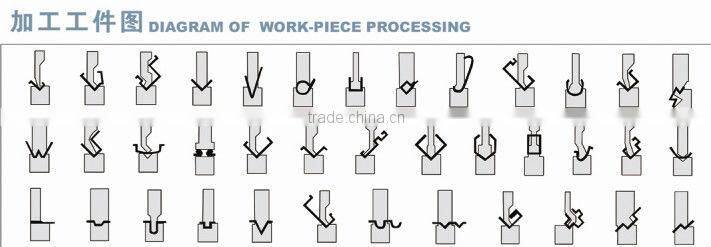

CAN WORK-PIECE PROCESSING:

PRODUCING PROCESS:
