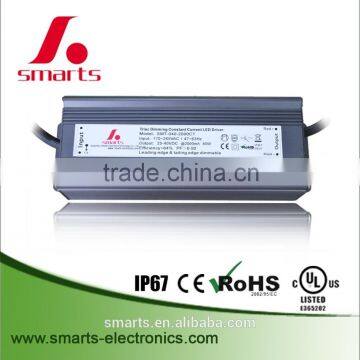

ul listed 2000mA triac led downlight dimmable driver

Protection & Environment& Safety & EMC

Specifications:

• Dimming mode: traic dimmable
• working mode:constant current type

• Full Load Efficiency (Typ.):  >85%
• AC Current(Typ.): 0.14A/110VAC  0.12 A/220VAC  0.01A/250VAC
• Leakage current:  < 0.27mA/110VAC;  < 0.25mA/220VAC
• Case material:aluminium housing
• Waterproof rate: IP67
• unit weight: 1kg
• product size: 200*68*45 mm
• CE, UL&CUL, ROHS approval
• 3 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)

Features:

• High efficiency,save energy ,protected environment
• Output constant current
• Input range :90-135VAC / 170-265VAC
• Built-in PFC function,PF >0.9
• Efficiency > 85%
• Protections:Short circuit/over Voltage
• Fully isolated plastic case
• Easy installation
• Cooling by free air convection
• Work with leading edge and trailing edge TRIAC dimmers
• Strong compatibility, flicker-free dimming
• Suitable for LED lighting and moving sign applications
• Compliance to worldwide safety regulations for lighting
• Meet to safety standard and EMC.
• 100% full load burn-in test.
• Brand electrotronic components.
• ROHS material.

Environment :

• Working Temperature : -25 ~ +50°C
• Working Humidity : 20 ~ 90% RH non-condensing
• Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
• TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
• Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

Safety :

• Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
• Withstand Voltage : I/P-O/P: 3000KVAC
• Isolation Resistance : I/P-O/P:100M Ohms/500VDC

We can supply you ETL approved Junction boxes for all kinds of the LED drivers.

What kind of LED Driver/Power Supply We do??

We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.

Smarts Electronics, the led driver manufacturer located in Quanzhou,has 6 years trade experience in Alibaba.

We have 7 kinds of led drivers or led power supply:

1.Constant Voltage LED Driver;

2.Constant Current LED Driver;

3.Triac CC&CV Dimmable LED Driver

4.0-10v  CC&CV Dimmable LED Driver

5.DALI CC&CV Dimmable LED Driver

6.Power Adapter

7.Switching Power Supply

What Service we can supply??

1. All inquiries will be replied within 24 hours


2.  Professional manufacturer,welcom to visit our website


3. OEM/ODM avaliable:
   A.Print logo on our product;
   B. Customized specification;
4. After Sales-Service:
   A. All products will have 100% burn-in test and strictly quality test before shipping;
   B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production;
5. High efficiency,long life span,reasonable&competetative price,fast lead time;
6. We have our engineer team, if you have any question about your LED applications, let us know freely.
