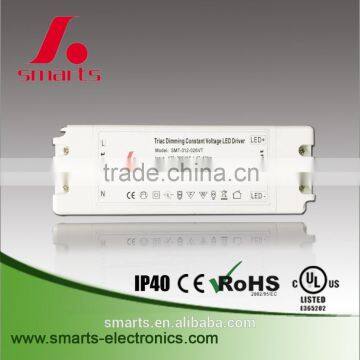

110v 120v constant voltage triac dimmable 24w led driver ac to dc power supply 12v

Features:

• Output constant voltage
• Universal AC input: 90-135VAC
• Power Factor > 0.8
• High efficiency > 84%
• Protection:short circuit/over loading/over current/ Over temperature
• Full protection plastic housing
• Easy installation
• Cooling by free air convection
• Compatible with Forward phase,Magnetic low voltage,triac Dimmers
• Strong compatibility, flicker-free dimming, PWM output
• Suitable for LED lighting and moving sign applications and others
• Compliance to worldwide safety regulations for lighting

Mechanical Specification

• Input (L) and (N) with wires to be connected AC.
• Output  LED SEC :(LED+) (LED-)

Dimming Operation

• The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
• Usually matching with leading edge Triac Dimmers( Can customized as a driver only matching trailing edge Triac Dimmers if needed).
• Please try to use dimmers with power at least 2.5 times as the output power of the driver.
• for Forward phase,Magnetic low voltage and Triac Dimmers

Warning

• Prevent to reverse polarity;
• Risk of Electric Shock. When used outdoors, install only on a circuit protected by a Class A GFCI;
• Risk of Fire. Installation involves special wiring methods to run wiring through a building structure. Consult a qualified electrician;
• Risk of Electric Shock. Mount the unit at a height greater than 1 foot from the ground surface.

Derating Curve

• To extend their life, please refer to the Derating Curve and derate according to the temperature

Connecting Diagram

 12V and 24v 24w triac dimmable led driver with Junction Box.

What kind of LED Driver/Power Supply We do??

We specialized in constant voltage & current LED drivers, 010v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters.

Smarts Electronics, the led driver manufacturer located in Quanzhou,has 6 years trade experience in Alibaba.

We have 7 kinds of led drivers or led power supply:

1.Constant Voltage LED Driver;

2.Constant Current LED Driver;

3.Triac CC&CV Dimmable LED Driver

4.0-10v  CC&CV Dimmable LED Driver

5.DALI CC&CV Dimmable LED Driver

6.Power Adapter

7.Switching Power Supply

What Service we can supply??

1. All inquiries will be replied within 24 hours


2.  Professional manufacturer,welcom to visit our website


3. OEM/ODM avaliable:
   A.Print logo on our product;
   B. Customized specification;
4. After Sales-Service:
   A. All products will have 100% burn-in test and strictly quality test before shipping;
   B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production;
5. High efficiency,long life span,reasonable&competetative price,fast lead time;
6. We have our engineer team, if you have any question about your LED applications, let us know freely.

***Any questions,Just feel free to click "send" to contact with me.^-^***
